Tail Lamp: Service and Repair

Rear Combination Lamp Assy LH:

REAR COMBINATION LAMP ASSEMBLY LH

REPLACEMENT

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL




2. REMOVE REAR COMBINATION LAMP ASSEMBLY LH

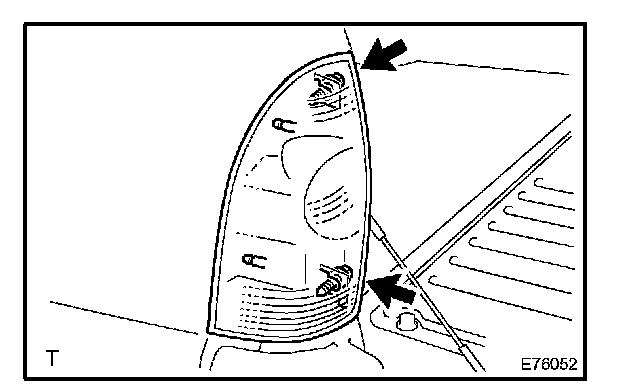

a. Remove the 2 bolts.
b. Slide the tail lamp (rear combination lamp) assembly LH toward the rear of the vehicle and release the 2 pins.

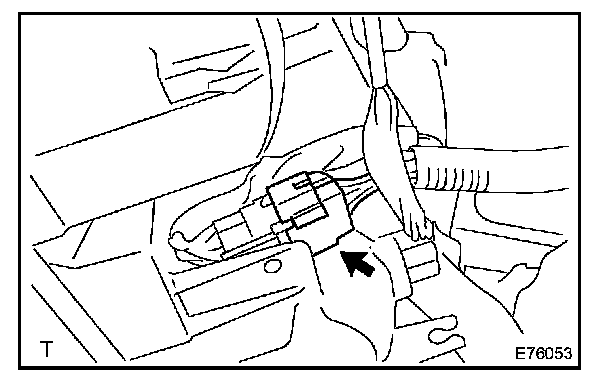

c. Disconnect the connector, then remove the tail lamp (rear combination lamp) assembly LH.
d. Remove the wire harness clamp.

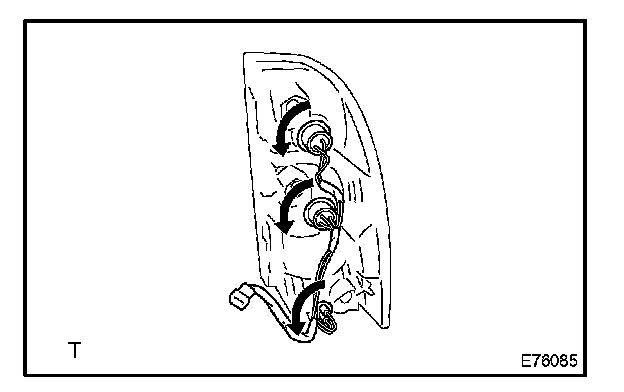

e. To remove the 3 lamp bulb sockets and 3 bulbs, turn them in the direction indicated by the arrow in the illustration.
f. Remove the 3 lamp bulbs from the 3 lamp sockets.

3. INSTALL REAR COMBINATION LAMP ASSEMBLY LH
a. Install the 3 lamp bulbs into the 3 lamp sockets.

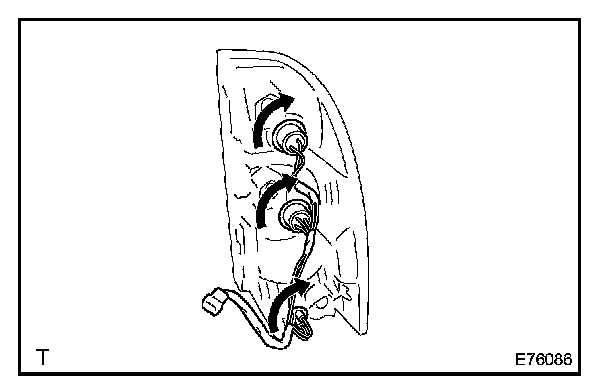

b. To install the 3 lamp bulb sockets and 3 bulbs, turn them in the direction indicated by the arrow in the illustration.
c. Install the wire harness clamp.

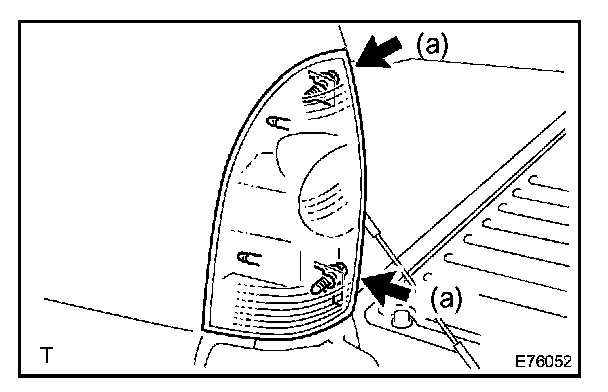

d. Connect the connector, then install the tail lamp (rear combination lamp) assembly LH with the 2 bolts.

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 3.9 N.m (40 kgf.cm, 35 in.lbf)
