License Plate Lamp: Service and Repair

License Plate Lamp Assy:

LICENSE PLATE LAMP ASSEMBLY

REPLACEMENT

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

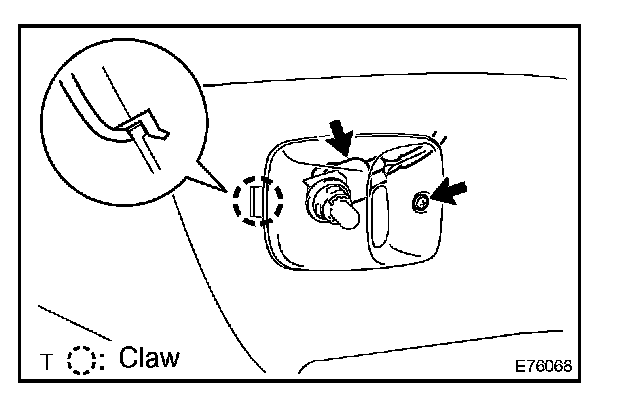

2. REMOVE LICENSE PLATE LAMP ASSEMBLY
a. Disconnect the connector.
b. Remove the screw and license plate lamp assembly.

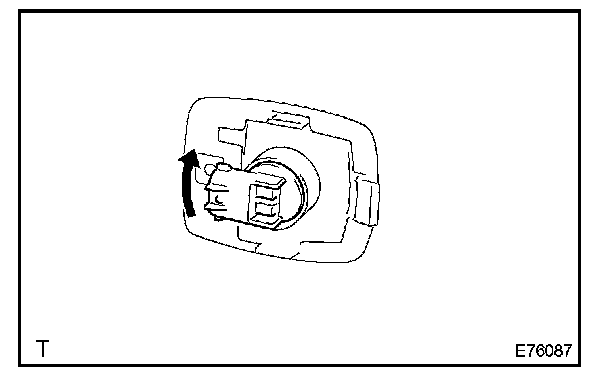

c. To remove the license plate lamp bulb socket and bulb,turn them in the direction indicated by the arrow in the illustration.
d. Remove the license plate lamp bulb from the lamp socket.

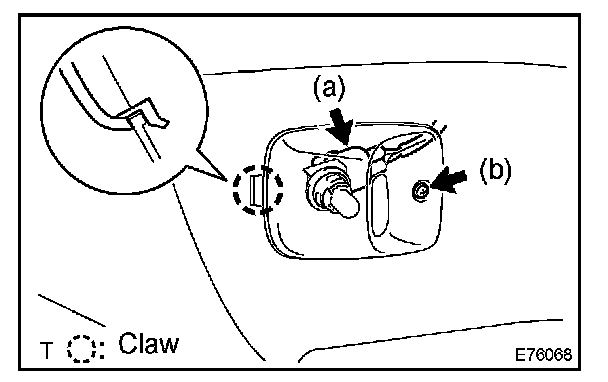

3. INSTALL LICENSE PLATE LAMP ASSEMBLY
a. Install the license plate lamp bulb into the lamp socket.

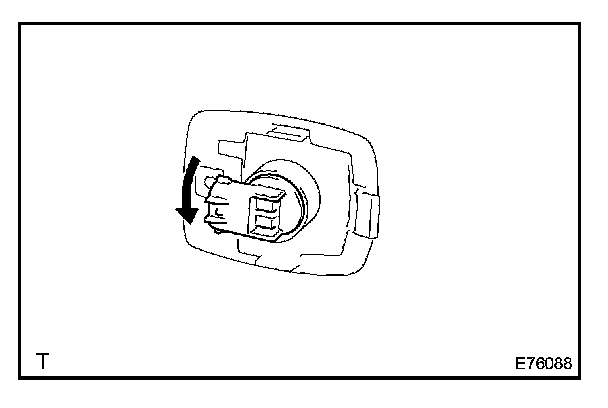

b. To install the license plate lamp bulb socket and bulb, turn them in the direction indicated by the arrow in the illustration.




c. Install the license plate lamp assembly with the screw.

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 3.9 N.m ( 40 kgf.cm, 35 in.lbf)
