Horn: Service and Repair
REPLACEMENT1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

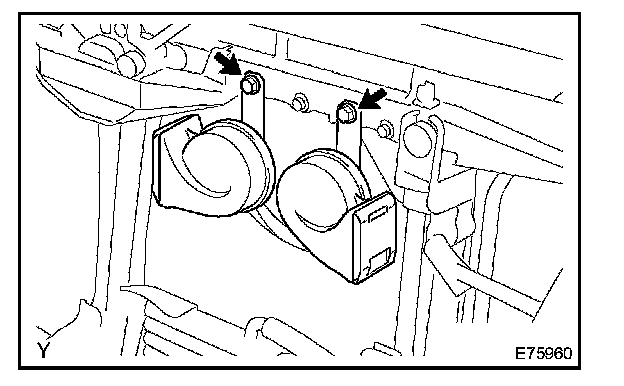

2. REMOVE RADIATOR GRILLE
3. REMOVE HIGH PITCHED HORN ASSEMBLY
a. Disconnect the connector.
b. Remove the bolt and horn.
4. REMOVE LOW PITCHED HORN ASSEMBLY
5. INSTALL HIGH PITCHED HORN ASSEMBLY
a. Place the stay onto the baffle part in the radiator support upper, and then install the horn with the bolt.
Torque: 9.9 N.m (101 kgf.cm, 73 ft.lbf)
b. Connect the connector.
6. INSTALL LOW PITCHED HORN ASSEMBLY
a. Place the stay onto the baffle part in the radiator support upper, and then install the horn with the bolt.
Torque: 9.9 N.m (101 kgf.cm, 73 ft.lbf)
b. Connect the connector.
7. INSTALL RADIATOR GRILLE
8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N.m (40 kgf.cm, 35 in.lbf)
