Fog/Driving Lamp: Service and Repair
FOG LAMP ASSEMBLY LHREPLACEMENT
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE FOG LAMP ASSEMBLY LH
a. Disconnect the connector.

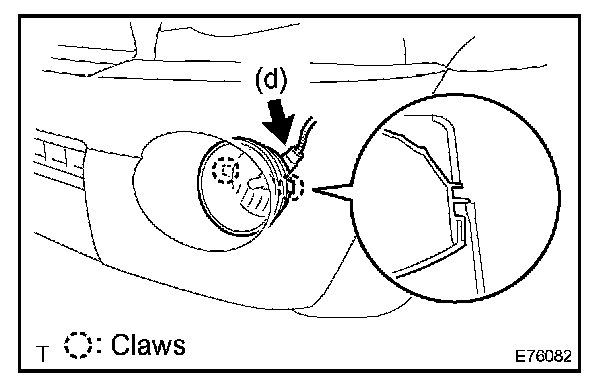

b. Disengage the 2 claws and remove the fog lamp assembly LH.

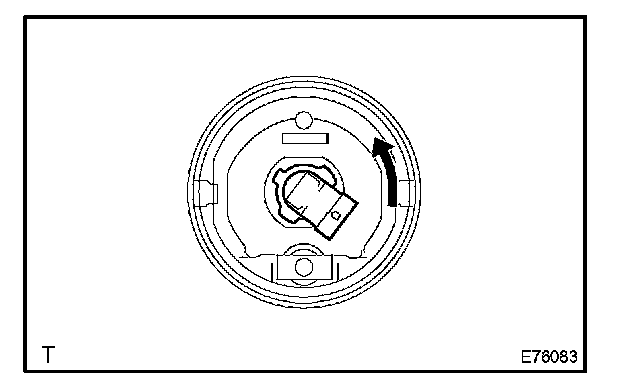

c. To remove the fog lamp socket and bulb, turn them in the direction indicated by the arrow in the illustration.
d. Remove the fog lamp bulb from the lamp socket.
3. INSTALL FOG LAMP ASSEMBLY LH
a. Install the fog lamp bulb into the lamp socket.

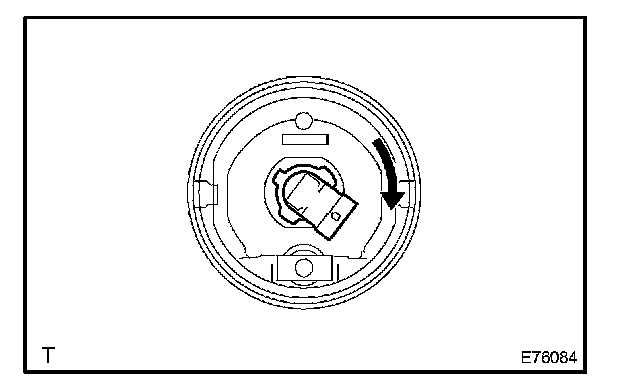

b. To install the fog lamp bulb socket and bulb, turn them in the direction indicated by the arrow in the illustration.
c. Engage the 2 claws and install the fog lamp assembly LH.
d. Connect the connector.
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N.m (40 kgf.cm, 35 in.lbf)
5. VEHICLE PREPARATION FOR FOG LAMP AIM ADJUSTMENT
6. PREPARATION FOR FOG LAMP AIMING
7. FOG LAMP AIMING INSPECTION
8. FOG LAMP AIMING ADJUSTMENT
