Symptom Related Diagnostic Procedures
PROBLEM SYMPTOMS TABLECheck the suspected areas for each problem symptom in the order given in the table and proceed to the relevant troubleshooting image.

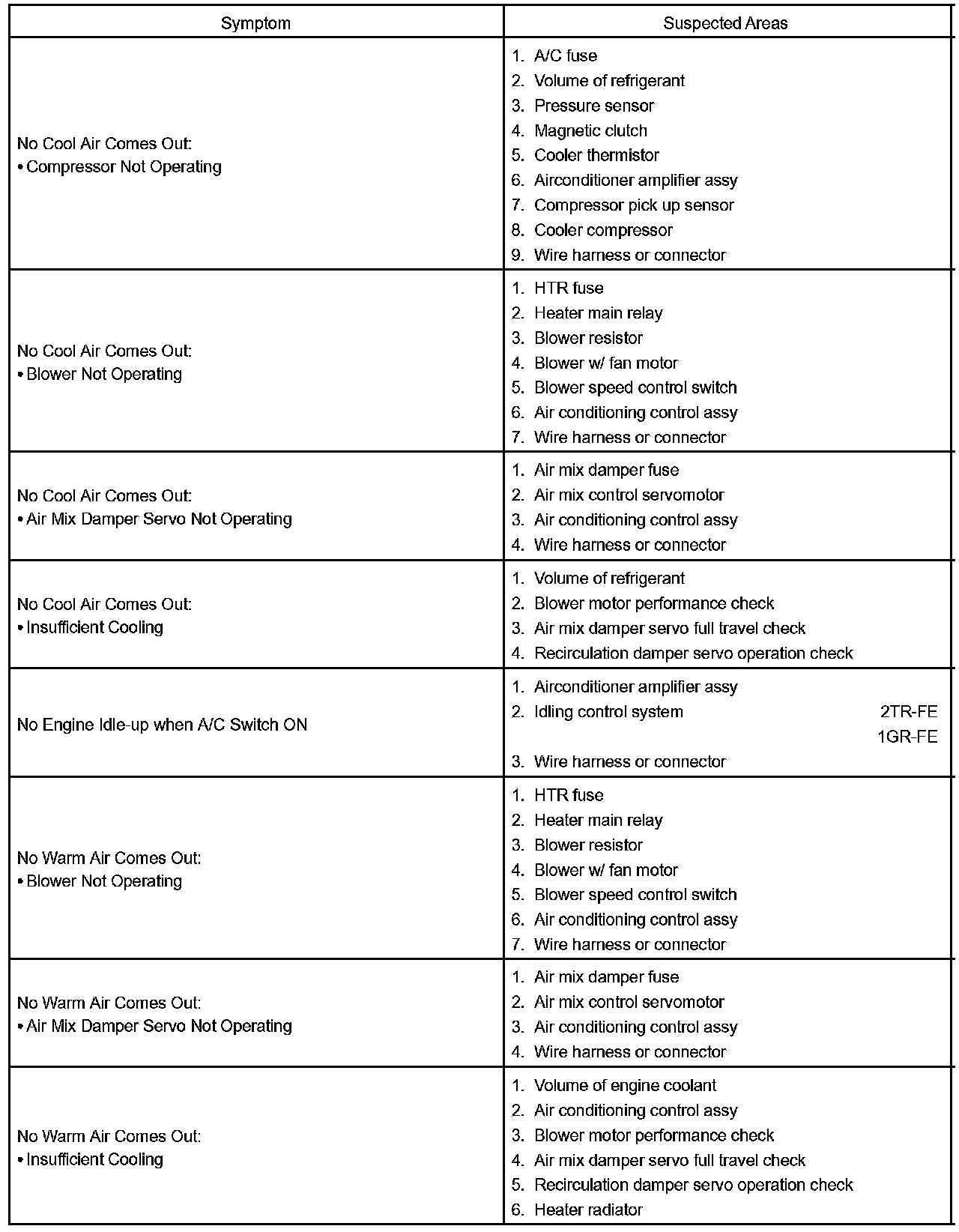

Problem Symptoms Table - Air Conditioning System Part 1:

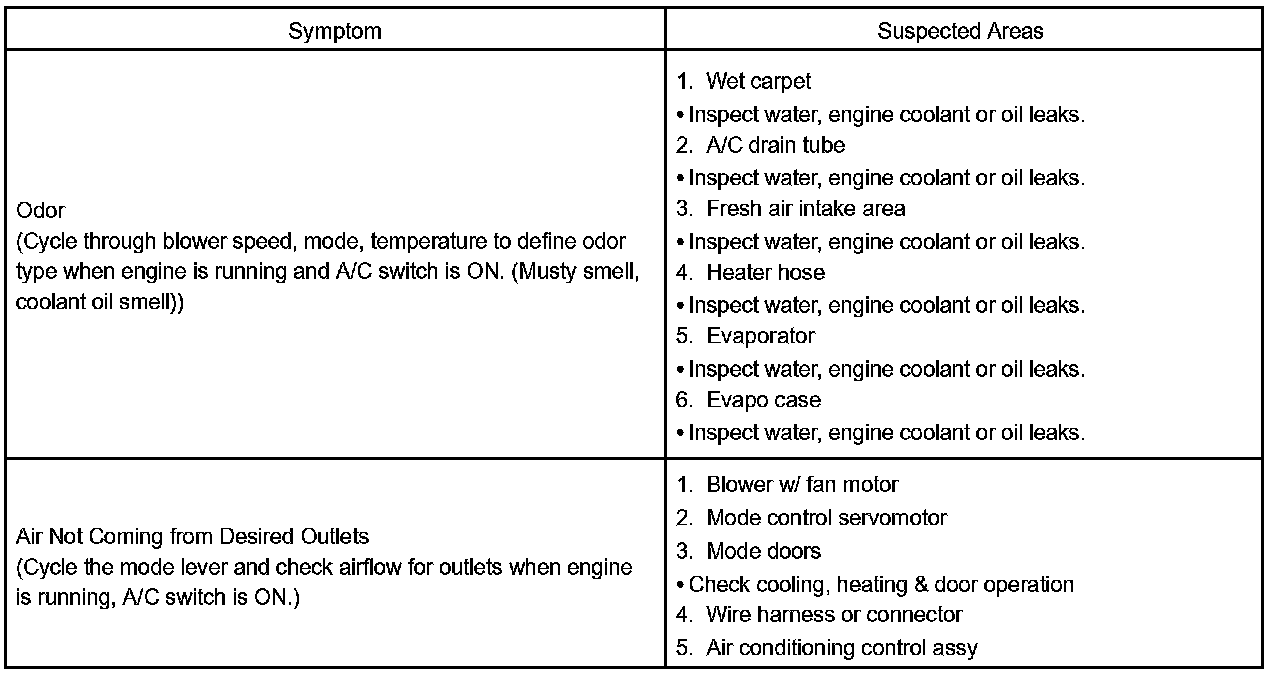

Problem Symptom Table - Air Conditioning System Part 2:

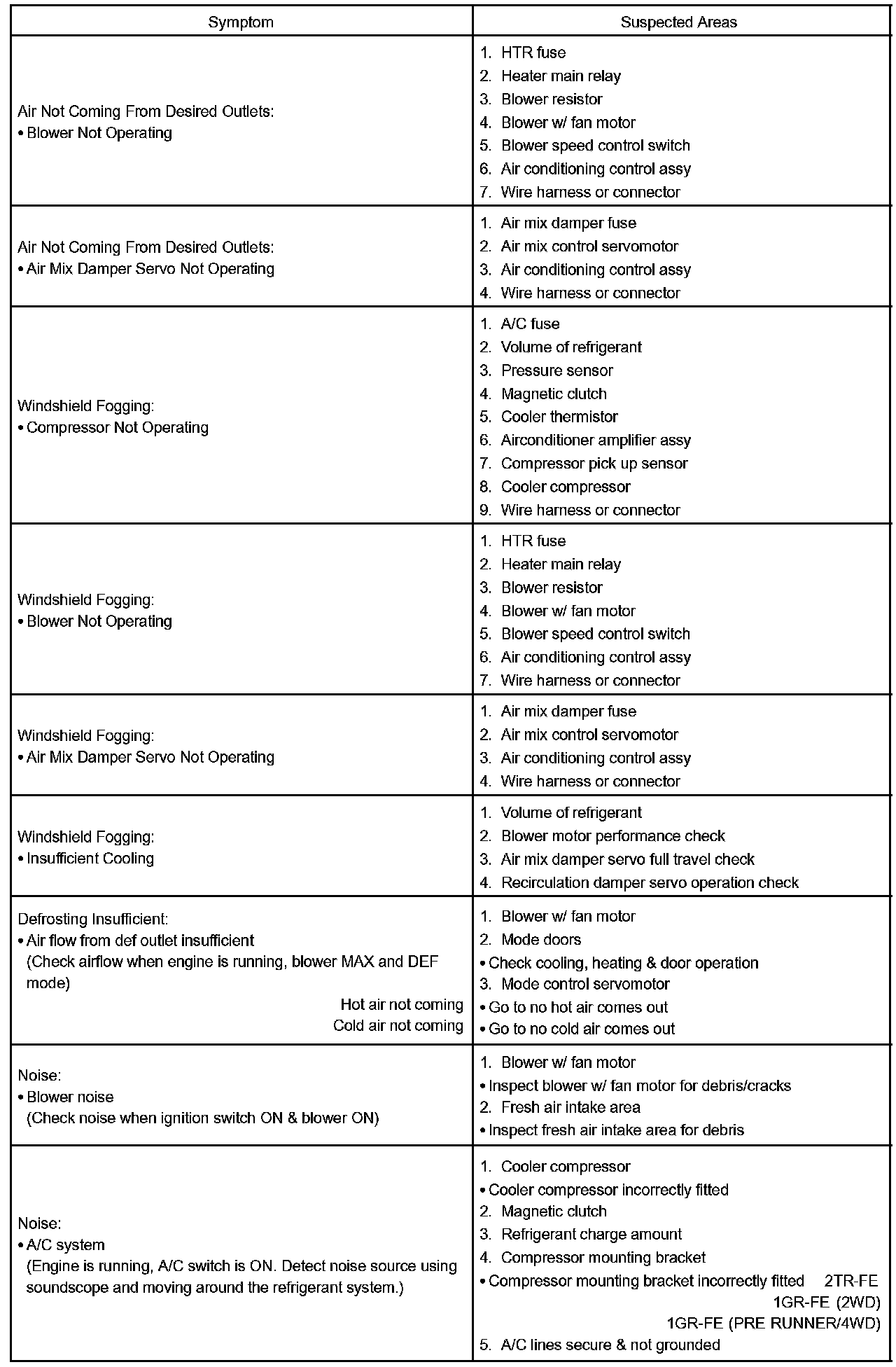

Problem Symptom Table - Air Conditioning System Part 3:
HINT: Inspect the fuses and relays before inspecting the suspected areas shown in the table.If the malfunction still exists even after checking and confirming that all the suspected areas are normal, replace the A/C amplifier.
