Blower Motor: Testing and Inspection

INSPECT BLOWER W/FAN MOTOR SUB-ASSEMBLY
a. Inspect the blower w/ fan motor.

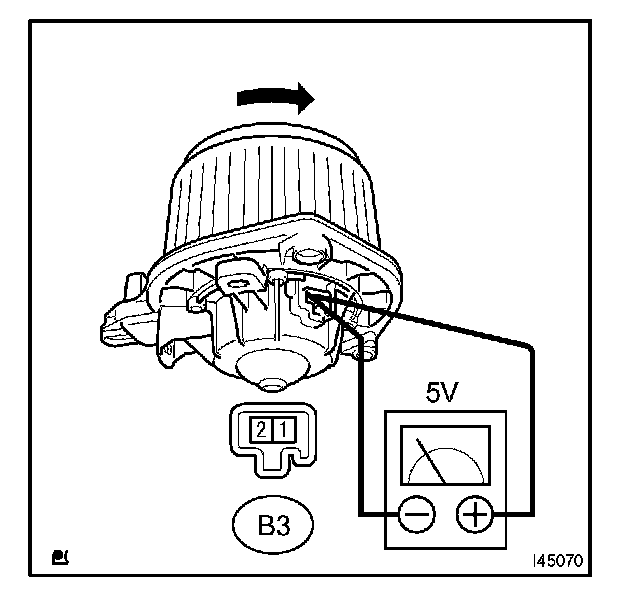

1. Connect the positive (+) lead from to terminal 1 and negative (-) lead to terminal 2, then check that the motor operates smoothly.

CAUTION:
- Use safety glasses
- Do not use battery power, use DC power supply (30 A).
- Do not operate the motor and fan assembly at over 5V.
- Be sure to hold the motor in a stable and safe way.

If the result is not as specified, replace the blower w/fan motor.
