Toyota Truck
>>
2005
>>
Tacoma PreRunner L4-2.7L (2TR-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>

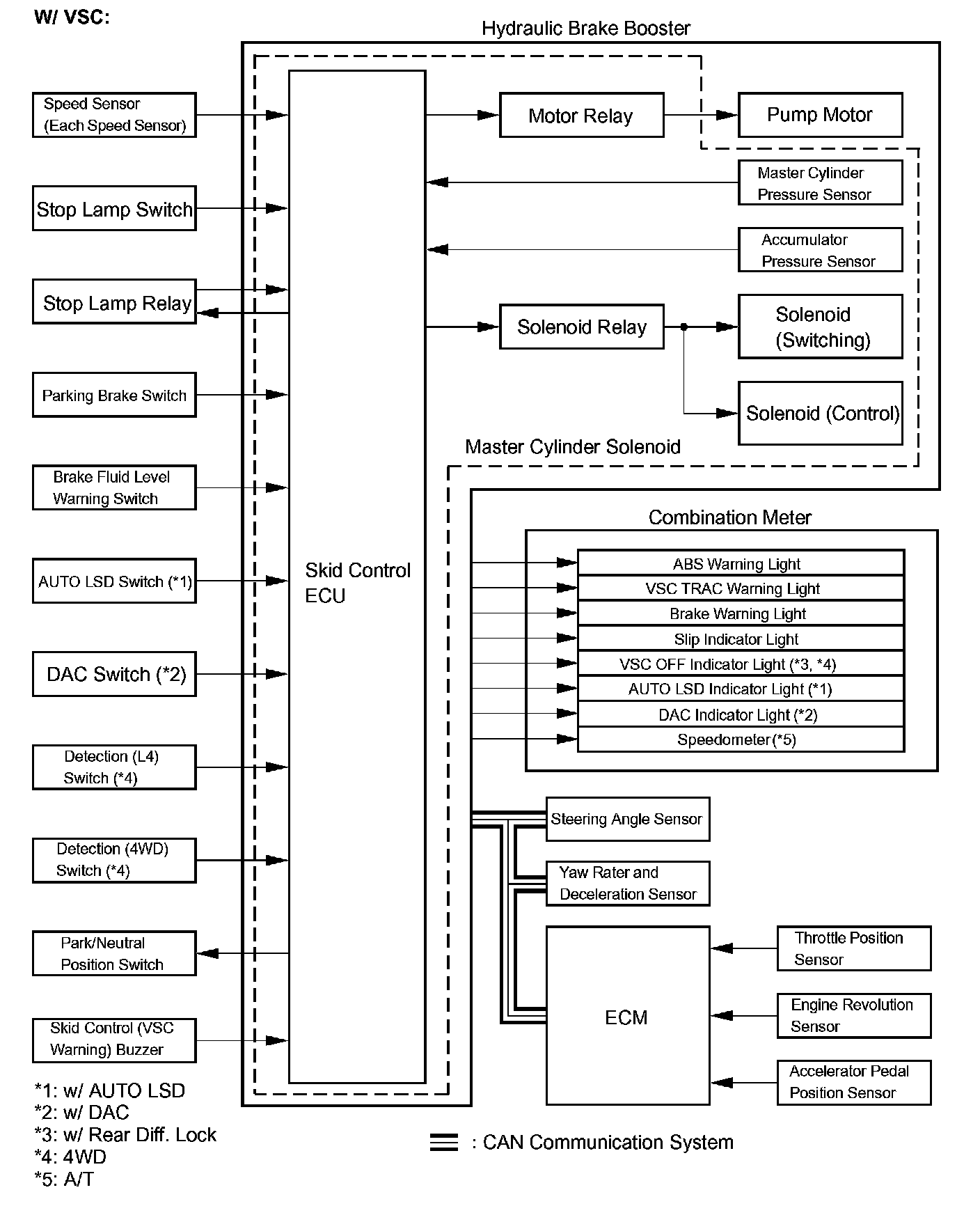

System Diagram

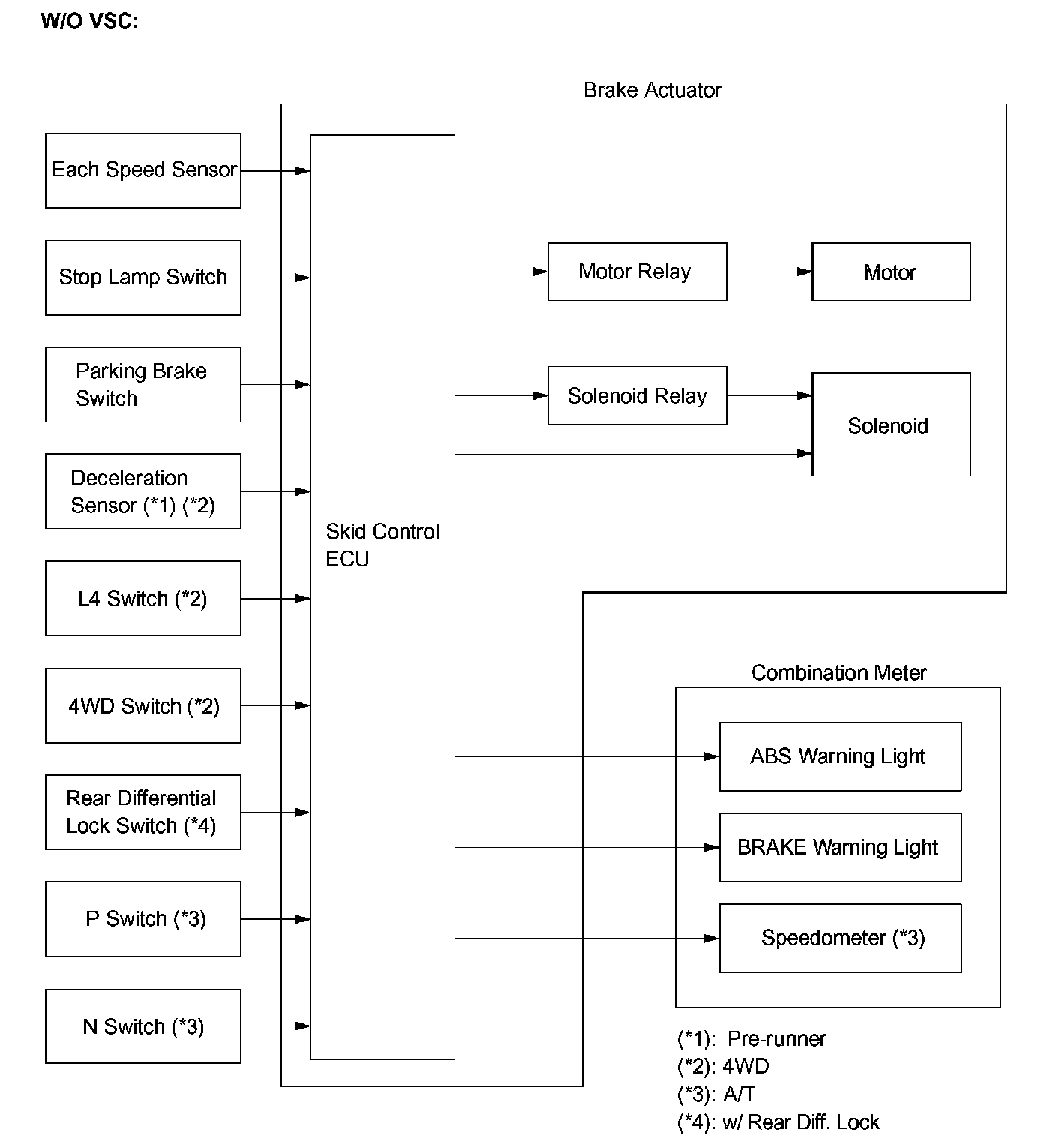

System Diagram
