Cruise Main Indicator Light Circuit

CRUISE MAIN INDICATOR LIGHT CIRCUIT

CIRCUIT DESCRIPTION
When the CRUISE CONTROL MAIN switch is turned off, cruise control does not operate.

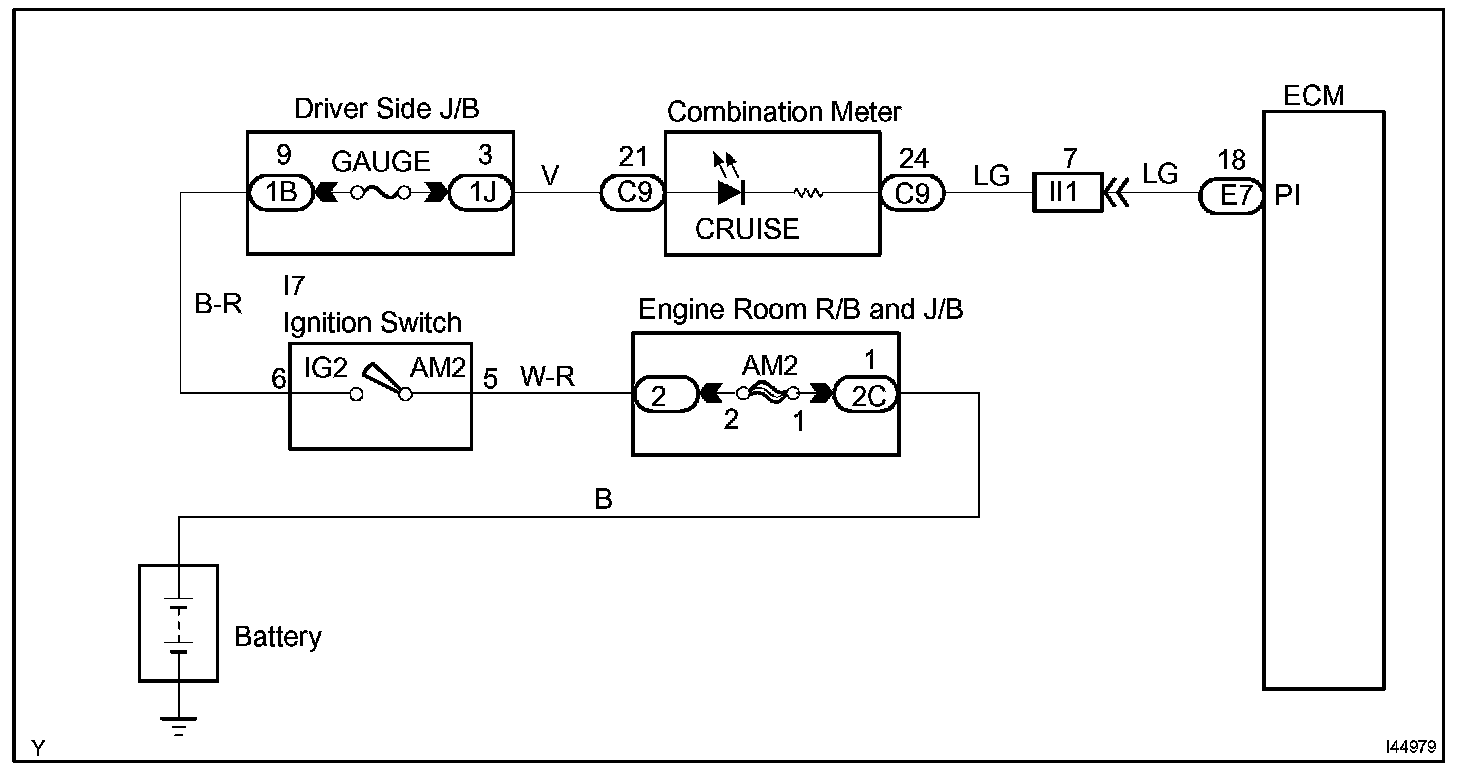

Wiring Diagram:

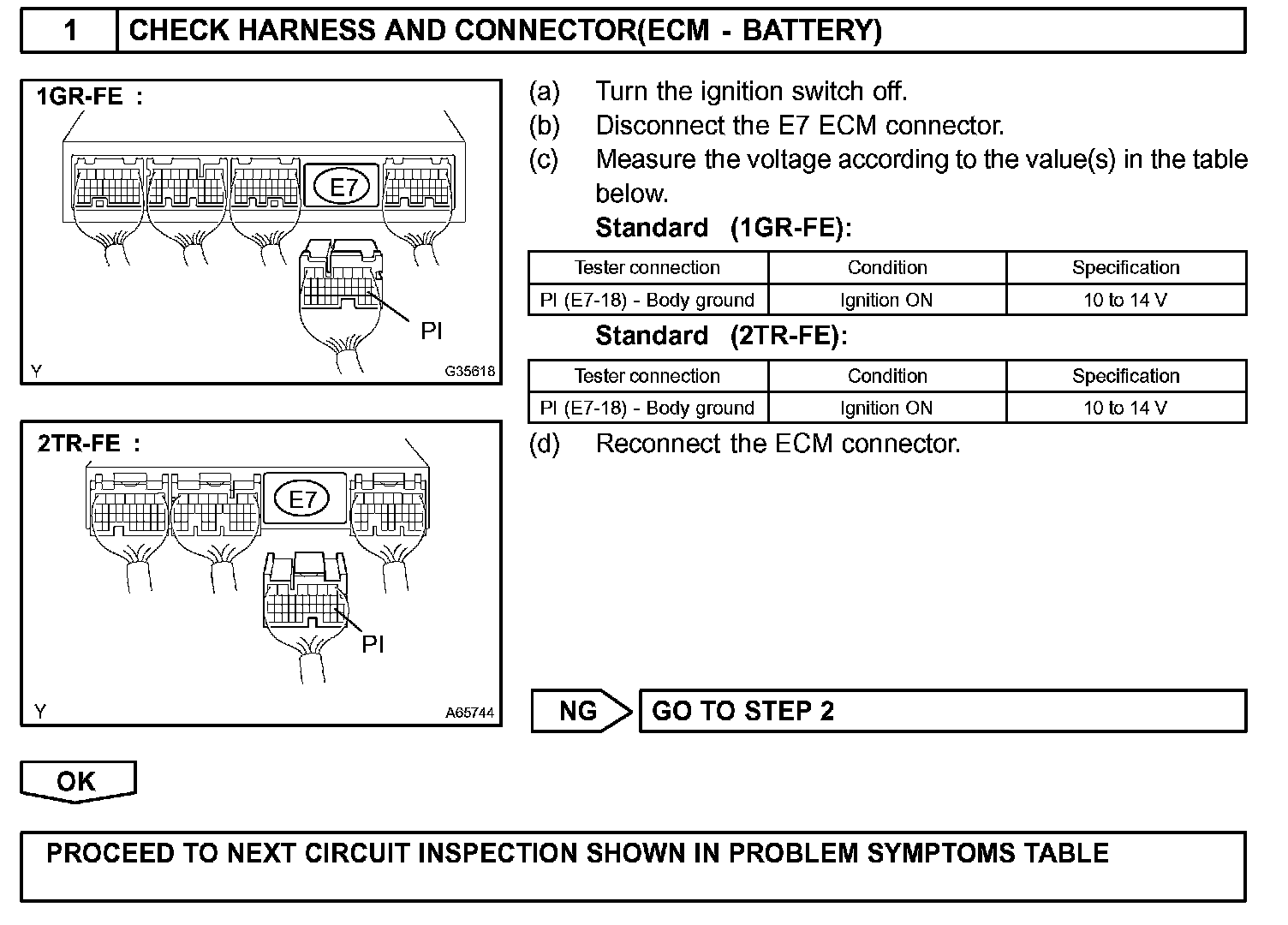

Step 1:

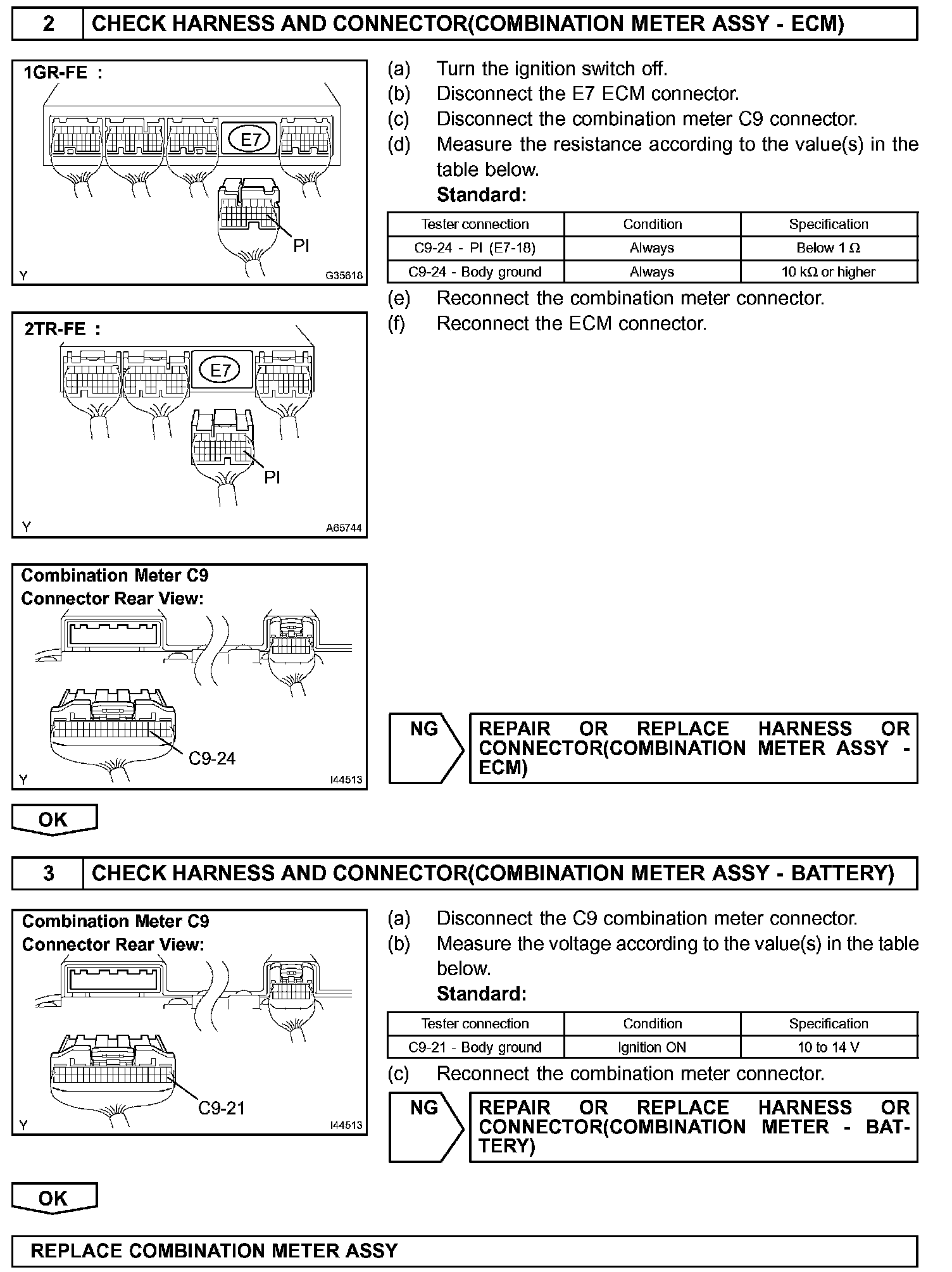

Step 2 - 3:

INSPECTION PROCEDURE
