Brakes and Traction Control: Testing and Inspection

BRAKE SYSTEM

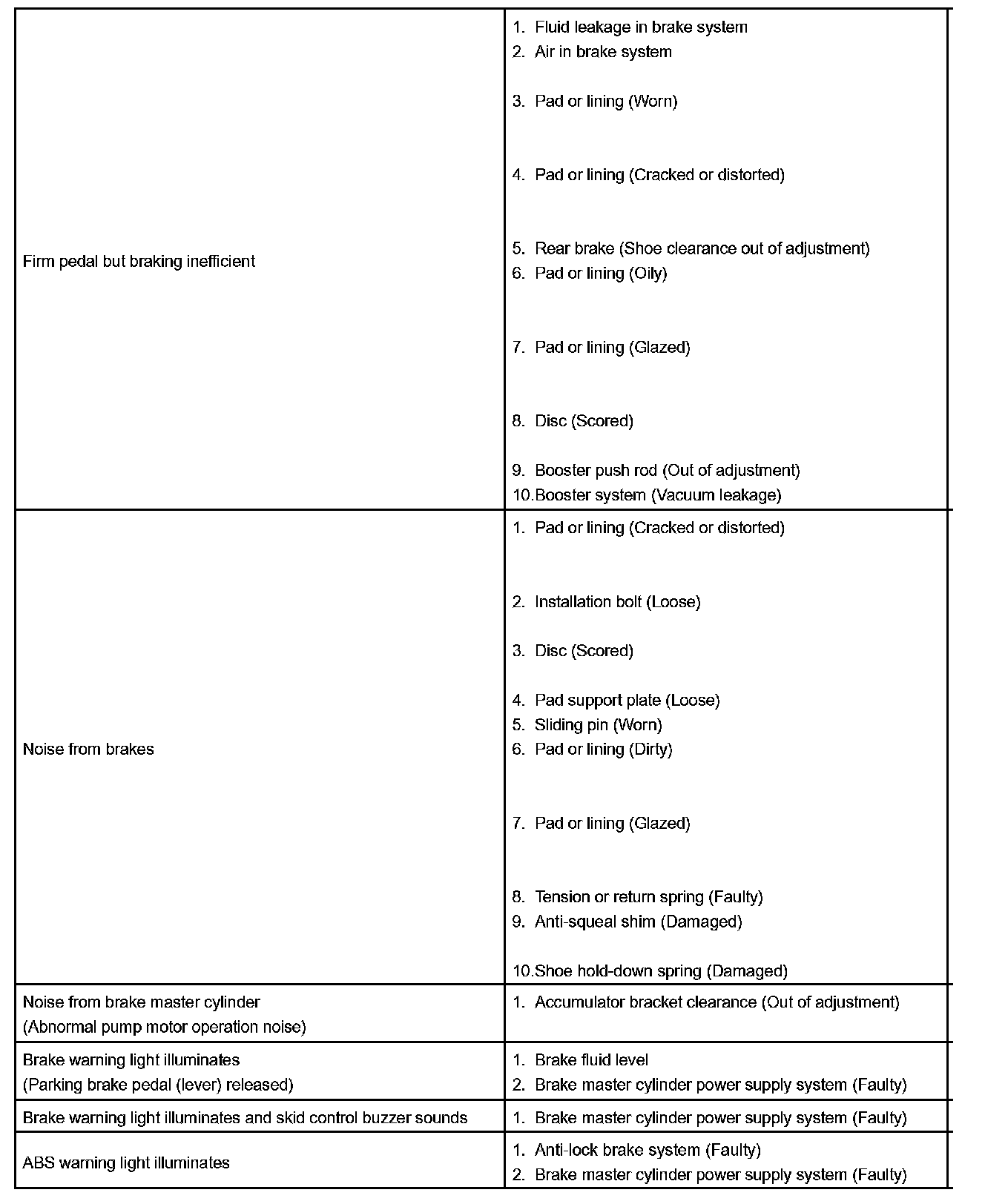

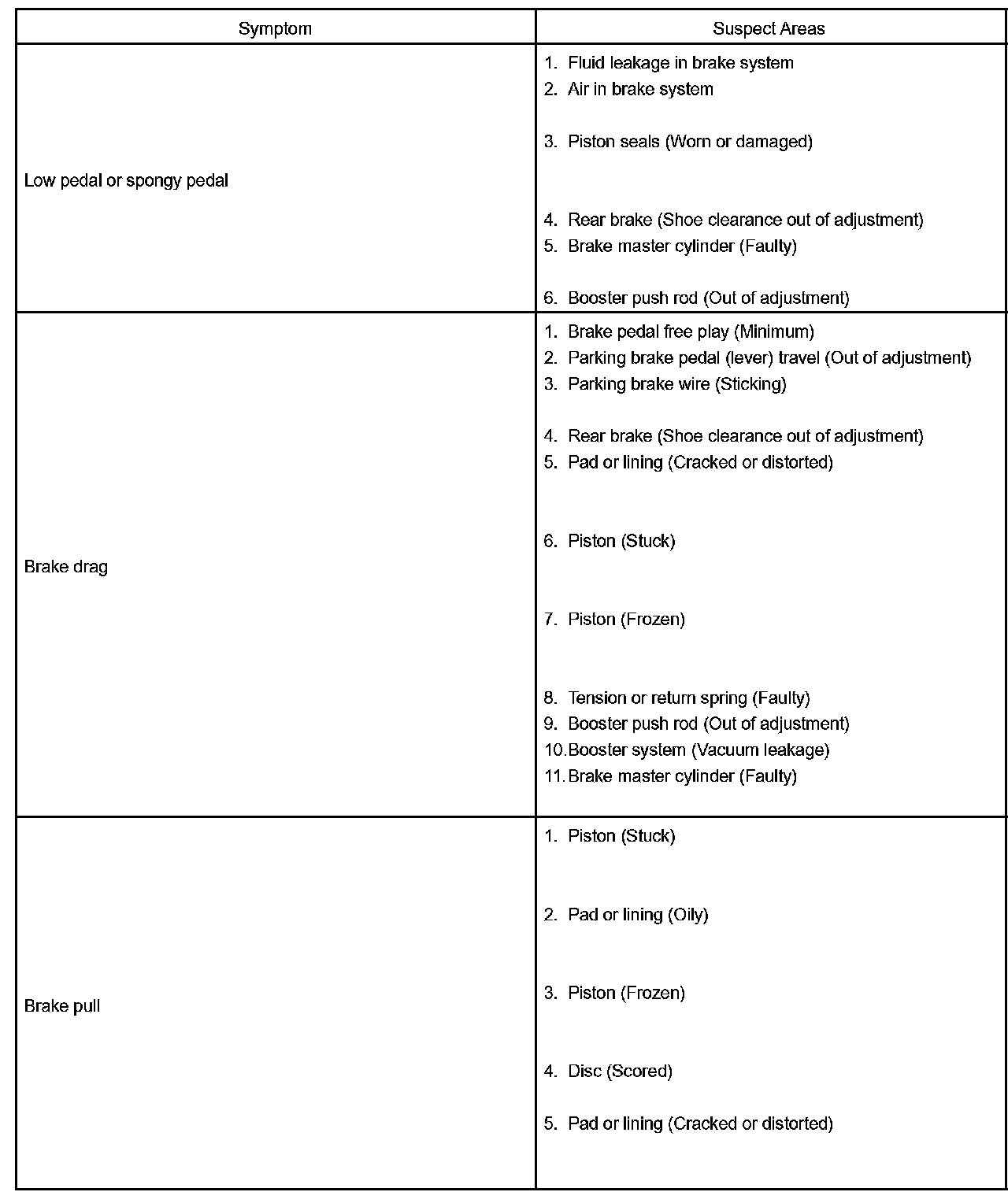

PROBLEM SYMPTOMS TABLE








Use the table to help you find the cause of the problem. The numbers indicate the ranked order of probability of each of the possible causes. Check each part in the order suggested. If necessary, replace these applicable parts.
