Parking Brake System: Adjustments

PARKING BRAKE SYSTEM

ADJUSTMENT
1. REMOVE REAR WHEEL
2. ADJUST REAR DRUM BRAKE SHOE CLEARANCE
3. INSTALL REAR WHEEL
Torque: 113 Nm (1,152 kgf-cm, 83 ft. lbs.)
4. INSPECT PARKING BRAKE PEDAL TRAVEL (AUTOMATIC TRANSMISSION)
a. Slowly depress the parking brake pedal to the fully applied position, and count the number of clicks.
Parking brake pedal travel at 300 N (31 kgf, 67 ft. lbs.): 7 to 10 clicks
5. INSPECT PARKING BRAKE LEVER TRAVEL (MANUAL TRANSMISSION)
a. Slowly pull the parking brake lever to the fully applied position, and count the number of clicks.
Parking brake lever travel at 200 N (20 kgf, 45 ft. lbs.): 7 to 10 clicks
6. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSEMBLY (AUTOMATIC TRANSMISSION, SEPARATE SEAT TYPE)
7. REMOVE CONSOLE PANEL UPPER REAR (MANUAL TRANSMISSION, SEPARATE SEAT TYPE)
8. REMOVE CONSOLE BOX ASSEMBLY REAR (SEPARATE SEAT TYPE)
9. REMOVE PARKING BRAKE CABLE JOINT PROTECTOR (BENCH SEAT TYPE)
a. Slide the seat to the rear most position.
b. Pull up the floor carpet around the cable joint protector, along its seams.

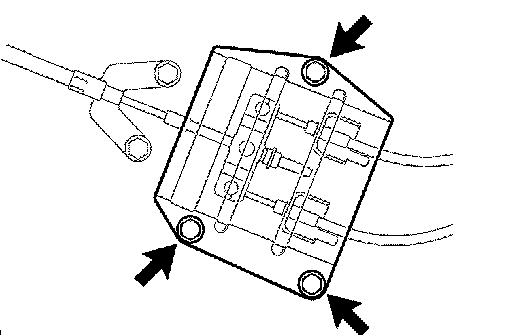

c. Remove the 3 bolts and parking brake cable joint protector.
10. ADJUST PARKING BRAKE PEDAL TRAVEL (AUTOMATIC TRANSMISSION)
a. Confirm that the parking brake pedal is released.

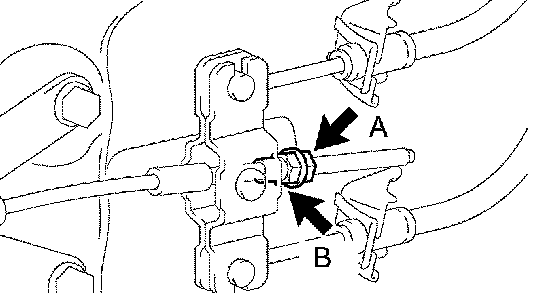

b. Loosen the lock nut A and turn the adjusting nut B until the parking brake pedal travel is corrected to the specified value.
c. Tighten the lock nut.
Torque: 13 Nm (127 kgf-cm, 9 ft. lbs.)
d. Check whether the parking brake drags or not.
e. When operating the parking brake pedal, check that the parking brake pedal indicator light comes on.
11. ADJUST PARKING BRAKE LEVER TRAVEL (MANUAL TRANSMISSION)
a. Confirm that the parking brake lever is released.

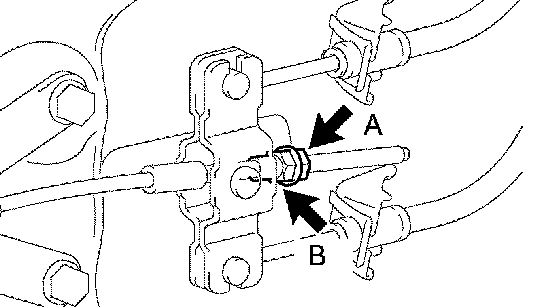

b. Loosen the lock nut A and turn the adjusting nut B until the parking brake lever travel is corrected to the specified value.
c. Tighten the lock nut.
Torque: 13 Nm (127 kgf-cm, 9 ft. lbs.)
d. Check whether the parking brake drags or not.
e. When operating the parking brake lever, check that the parking brake lever indicator light comes on.





12. INSTALL PARKING BRAKE CABLE JOINT PROTECTOR (BENCH SEAT TYPE)

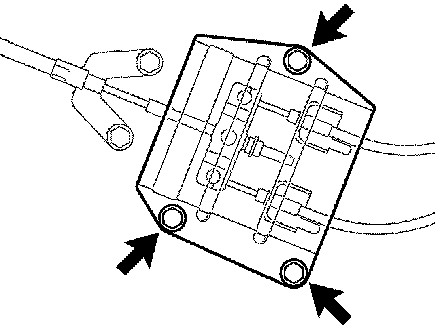

a. Install the 3 bolts and parking brake cable joint protector.
Torque: 13 Nm (127 kgf-cm, 9 ft. lbs.)
b. Return the floor carpet to its original position.
c. Return the seat to its original position.
13. INSTALL CONSOLE BOX ASSEMBLY REAR (SEPARATE SEAT TYPE)
14. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSEMBLY (AUTOMATIC TRANSMISSION, SEPARATE SEAT TYPE)
15. INSTALL CONSOLE PANEL UPPER REAR (MANUAL TRANSMISSION, SEPARATE SEAT TYPE)
