ABS With EBD System

BRAKE WARNING LIGHT CIRCUIT

CIRCUIT DESCRIPTION

The BRAKE warning light lights up when the brake fluid is insufficient, the parking brake is applied or the EBD is defective.

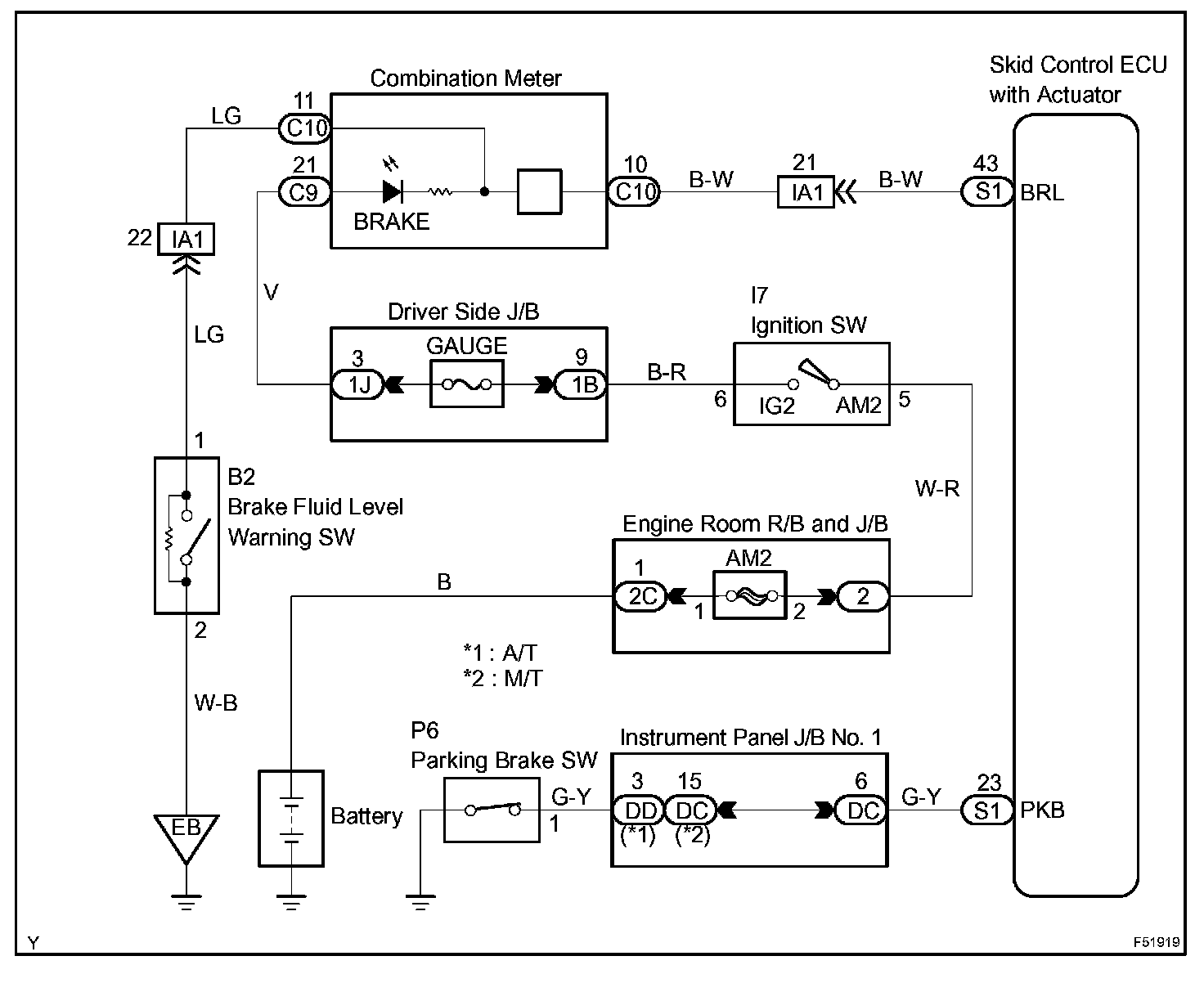

Wiring Diagram:

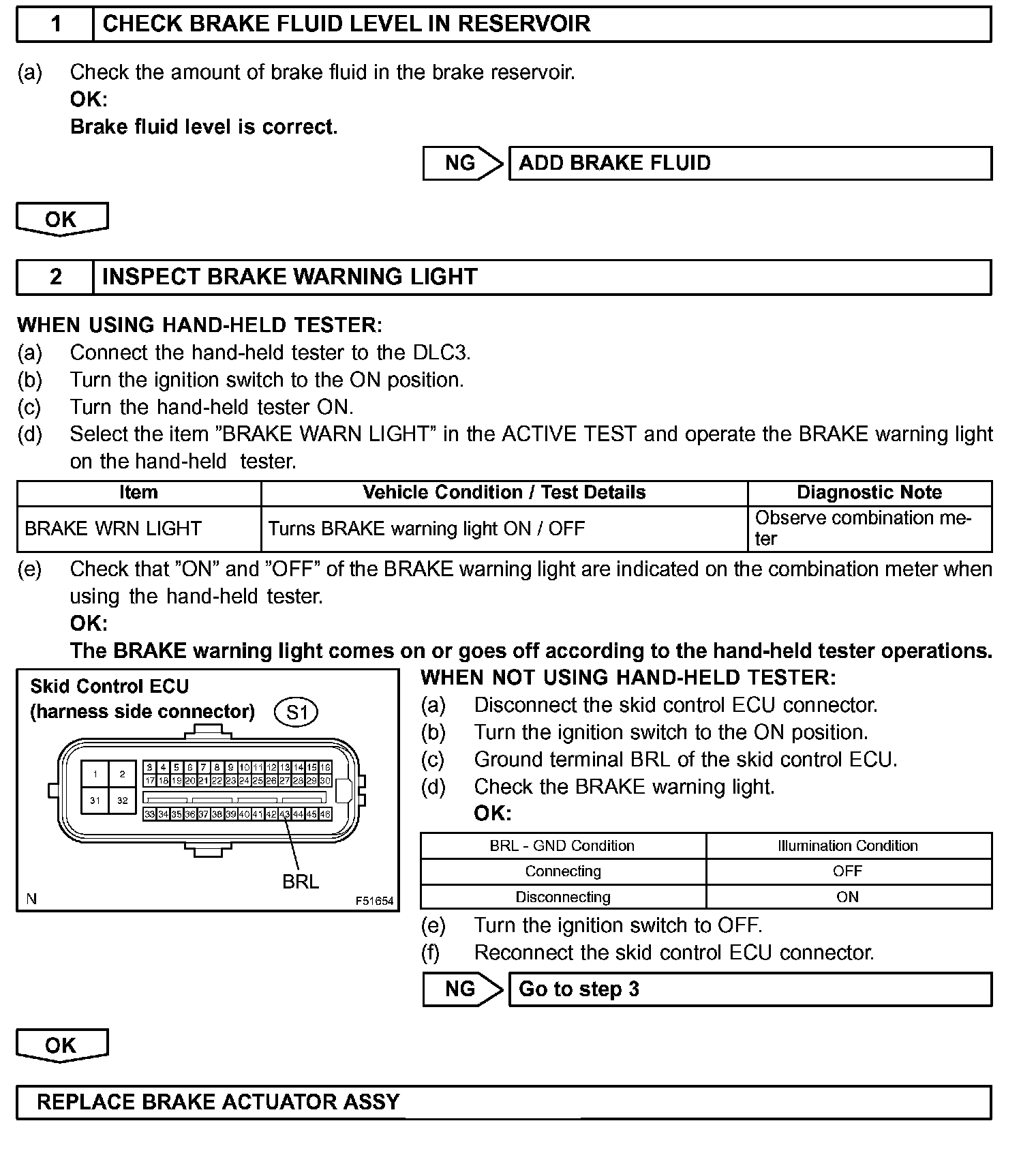

Step 1 - 2:

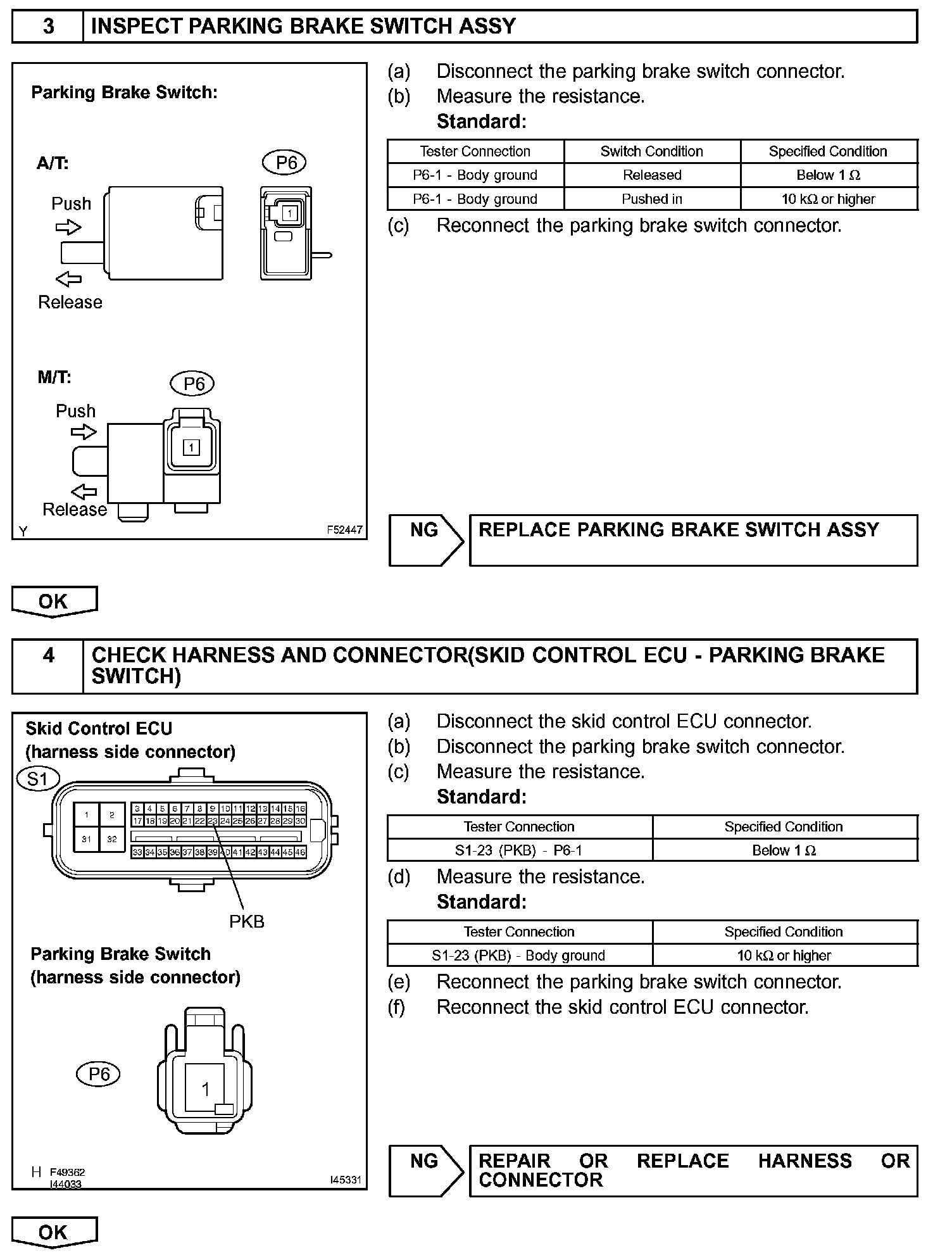

Step 3 - 4:

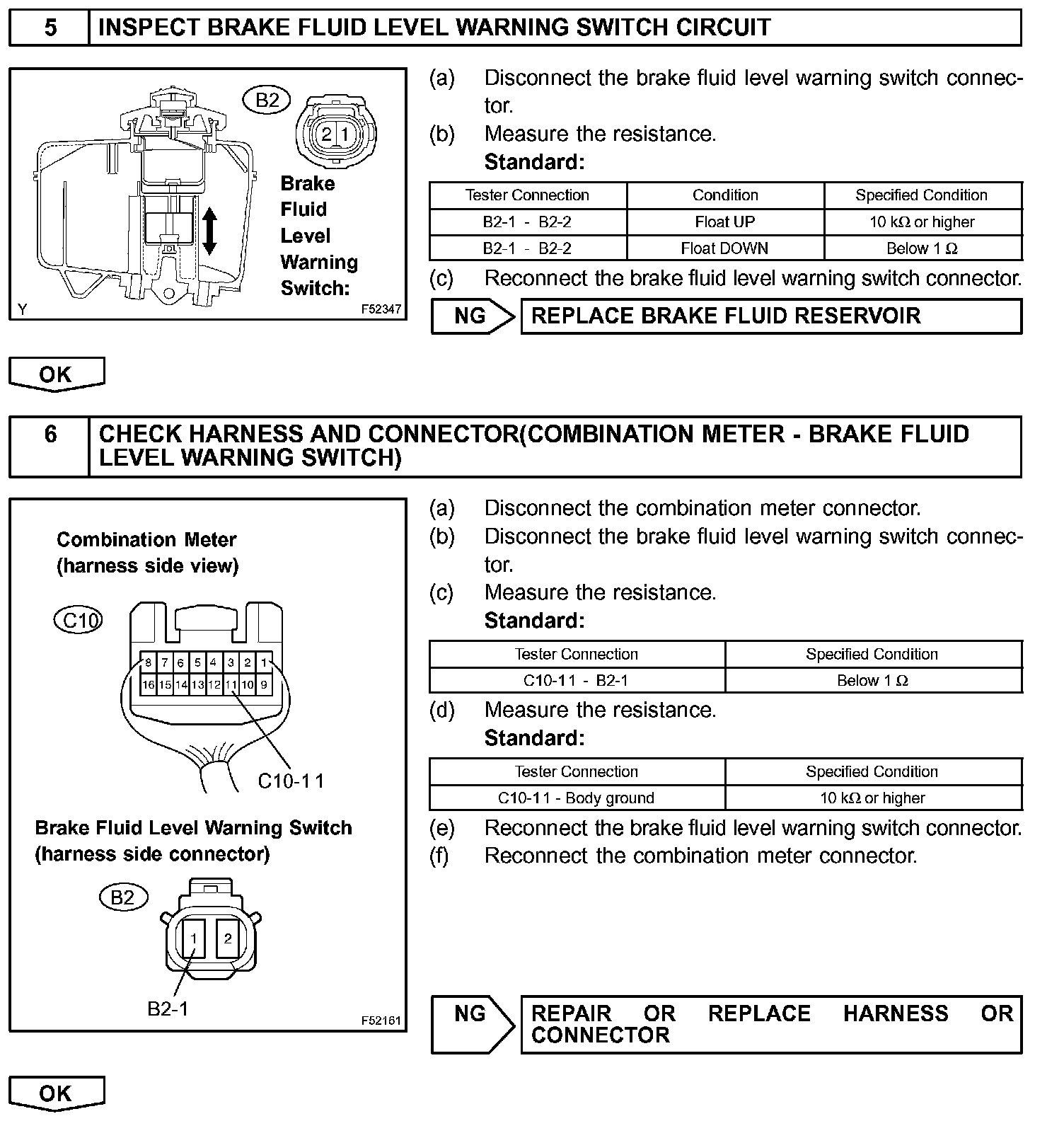

Step 5 - 6:

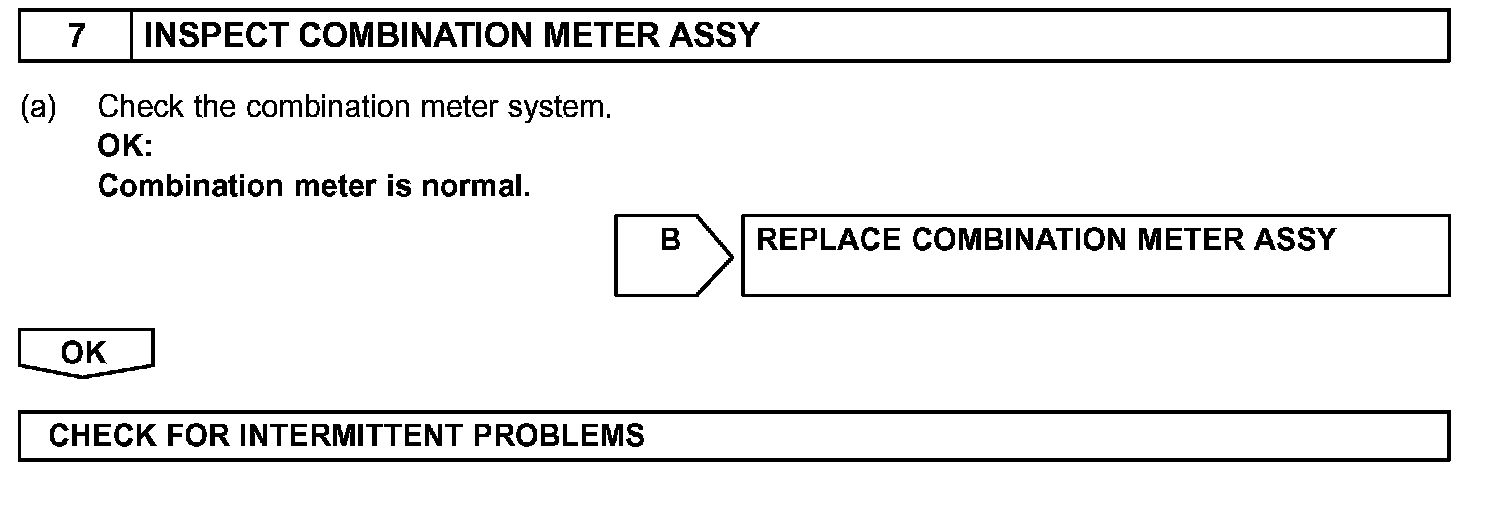

Step 7:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 when using a hand-held tester and start from step 2 when not using a handheld tester.
