VSC TRAC Warning Light Circuit (Remains On)

VSC TRAC WARNING LIGHT CIRCUIT (REMAINS ON)

CIRCUIT DESCRIPTION

When the skid control ECU stores DTCs, the VSC and TRAC functions are deactivated, the VSC TRAC warning light comes on in the combination meter.

Wiring Diagram:

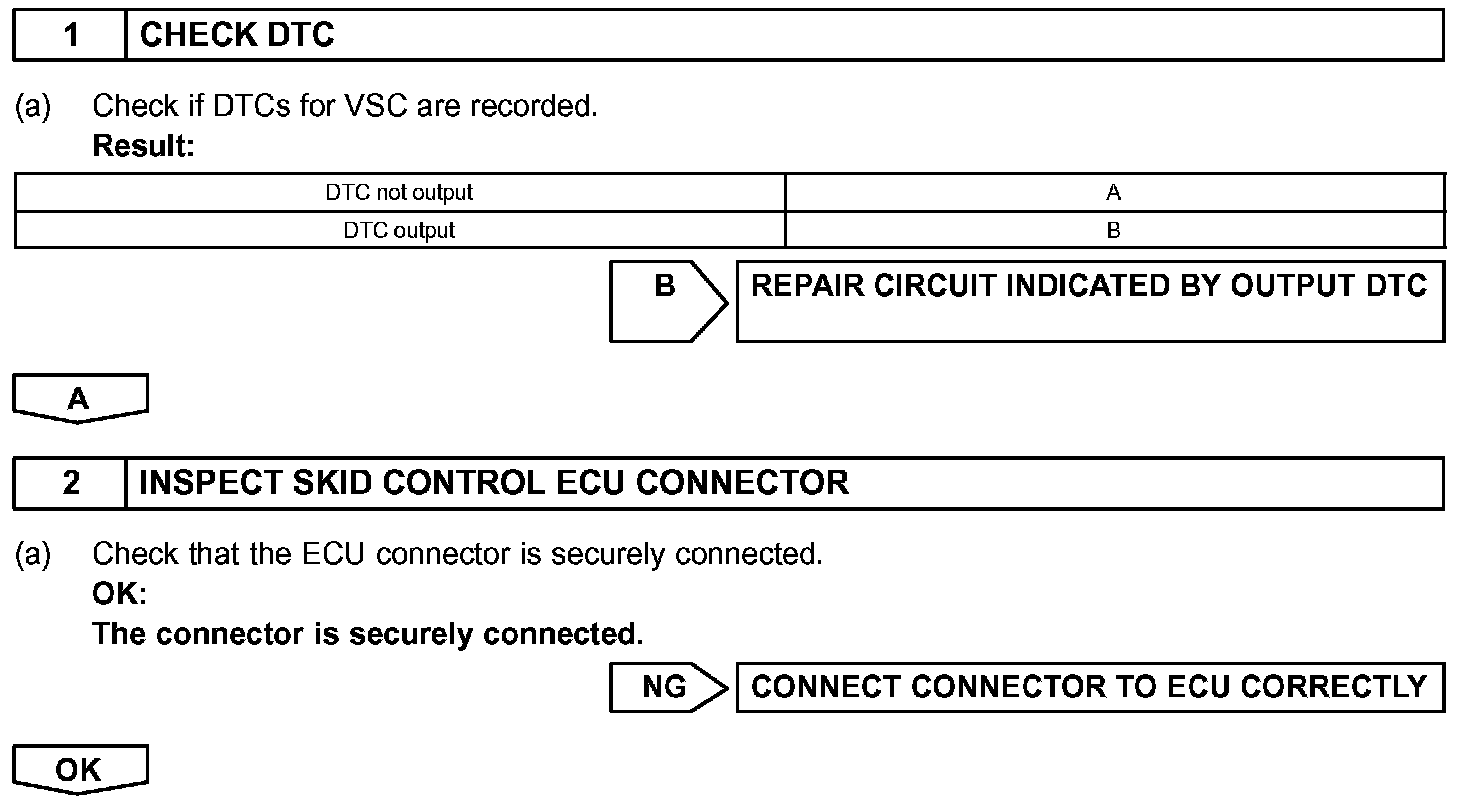

Step 1 - 2:

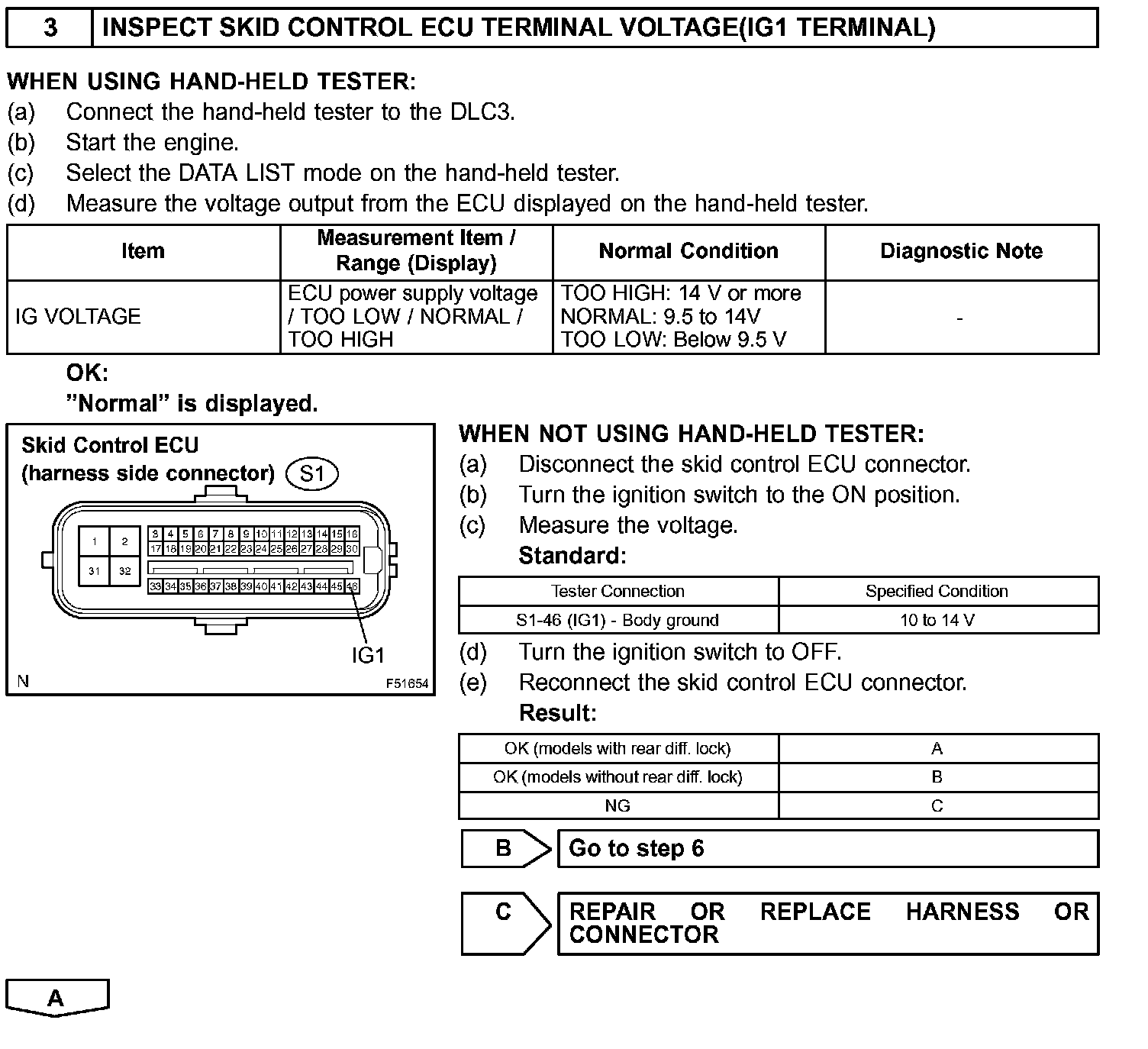

Step 3:

Step 4 - 5:

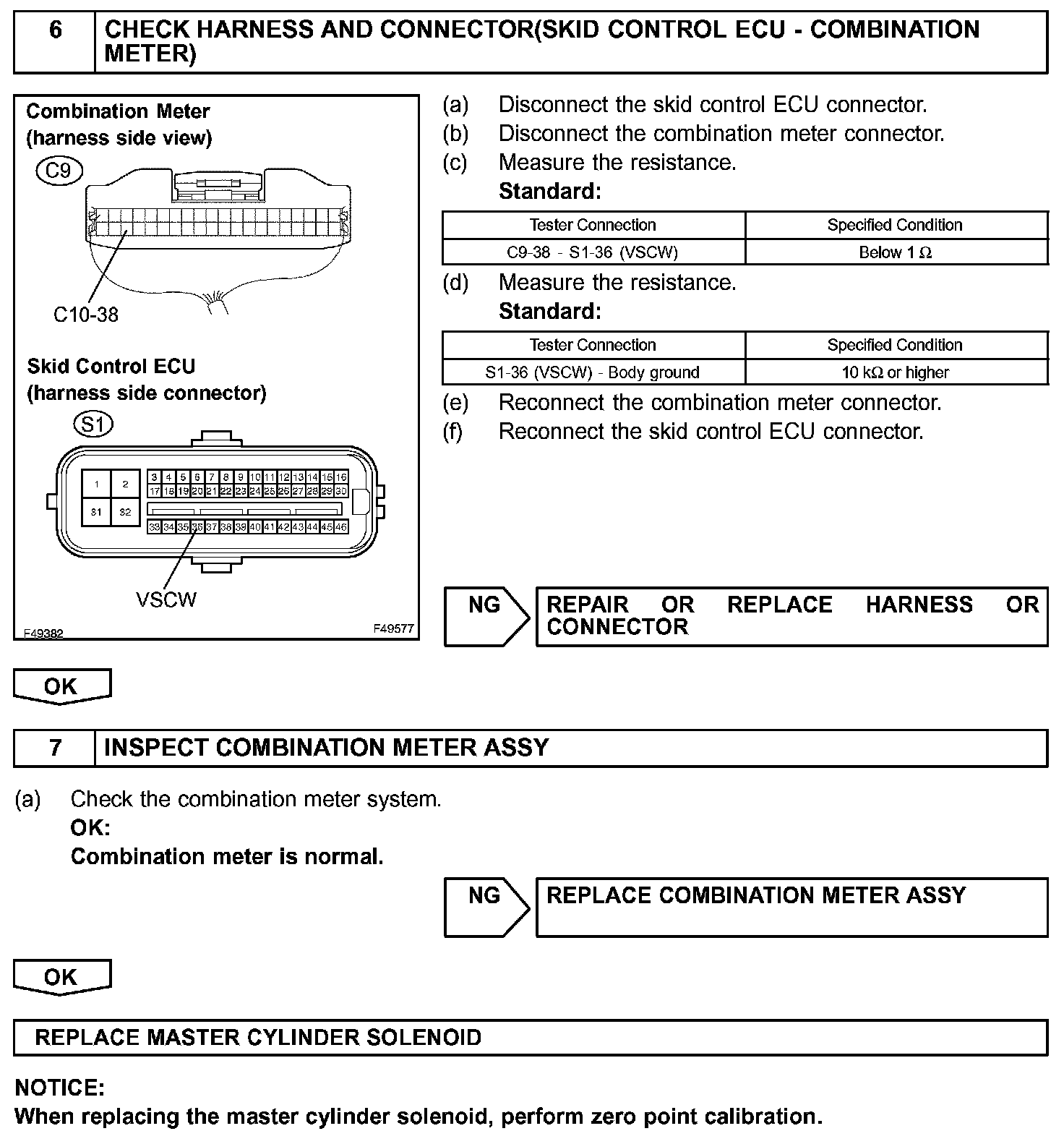

Step 6 - 7:

INSPECTION PROCEDURE
