SLIP Indicator Light Circuit (Remains On)

SLIP INDICATOR LIGHT CIRCUIT (REMAINS ON)

CIRCUIT DESCRIPTION
- The SLIP indicator blinks when any of the TRAC, VSC and AUTO LSD operate.
- When the system fails, the SLIP indicator light illuminates to warn the driver.

Wiring Diagram:

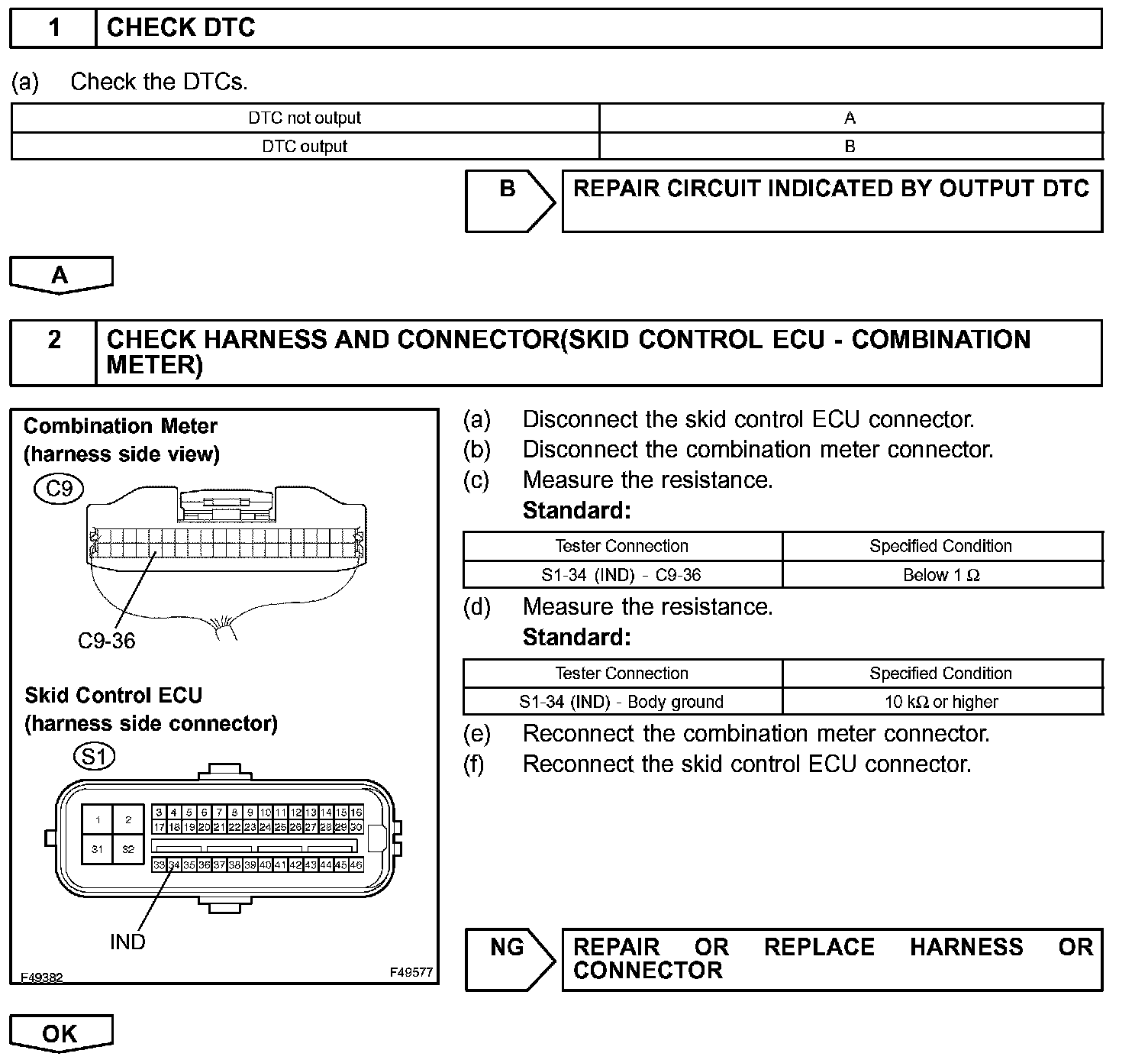

Step 1 - 2:

Step 3:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 when using a hand-held tester and start from step 2 when not using a handheld tester.
