Toyota Truck
>>
2005
>>
Tacoma PreRunner L4-2.7L (2TR-FE)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
ABS W/EBD System
>>
Symptom Diagnostic Procedures
>>
TC Terminal Circuit
TC Terminal Circuit
TC TERMINAL CIRCUIT
CIRCUIT DESCRIPTION
Connecting terminals TC and CG of the DLC3 causes the ECU to display 2-digit DTCs by flashing the ABS warning light.

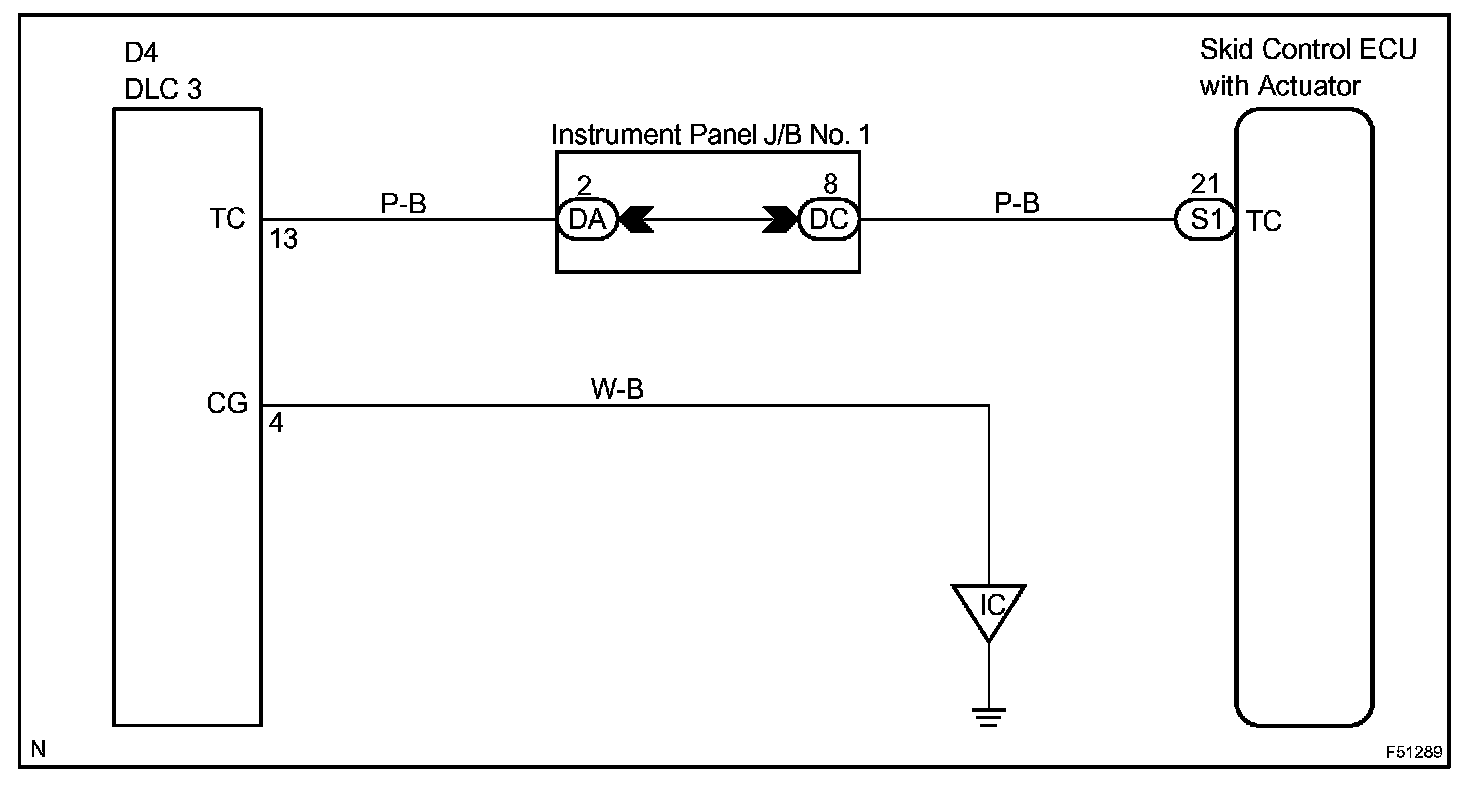

Wiring Diagram:

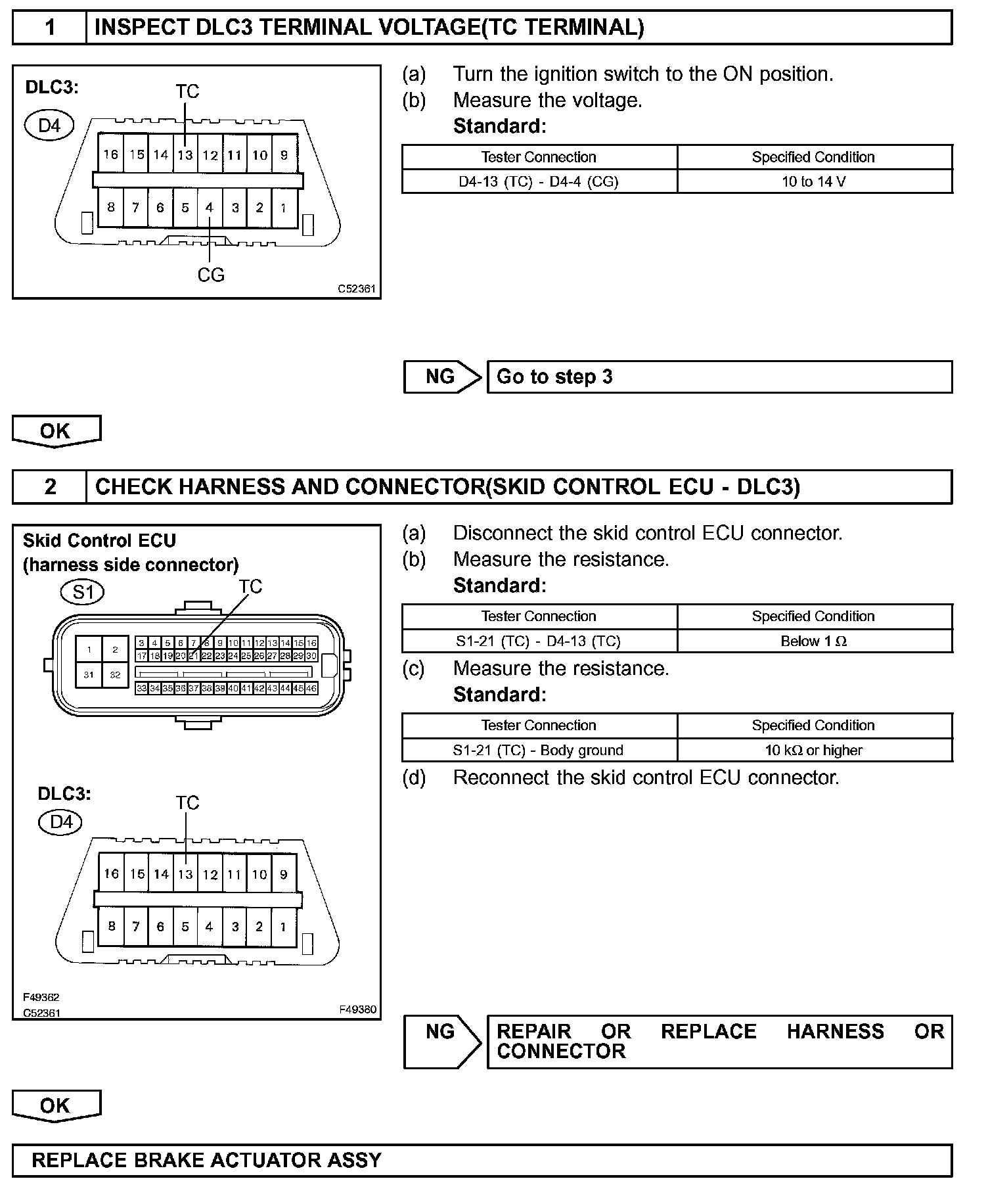

Step 1 - 2:

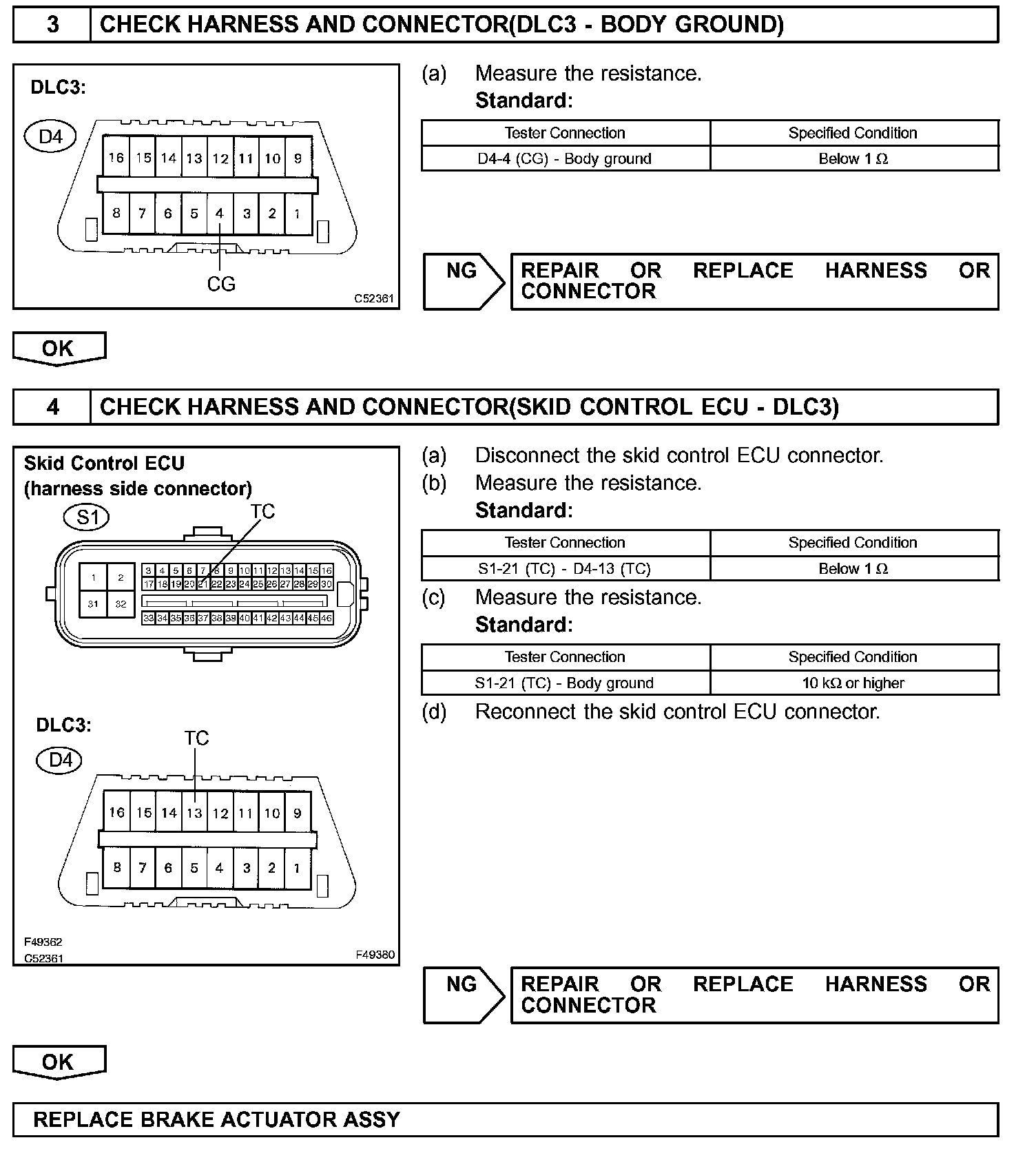

Step 3 - 4:
INSPECTION PROCEDURE
