ABS Warning Light Circuit (Does Not Light Up)

ABS WARNING LIGHT CIRCUIT (DOES NOT LIGHT UP)

CIRCUIT DESCRIPTION

If the ECU detects trouble, it lights the ABS warning light while at the same time prohibiting ABS control. At this time, the ECU records a DTC in the memory.
Connecting terminals TC and CG of the DLC3 causes the ECU to display 2-digit DTCs by flashing the ABS warning light.

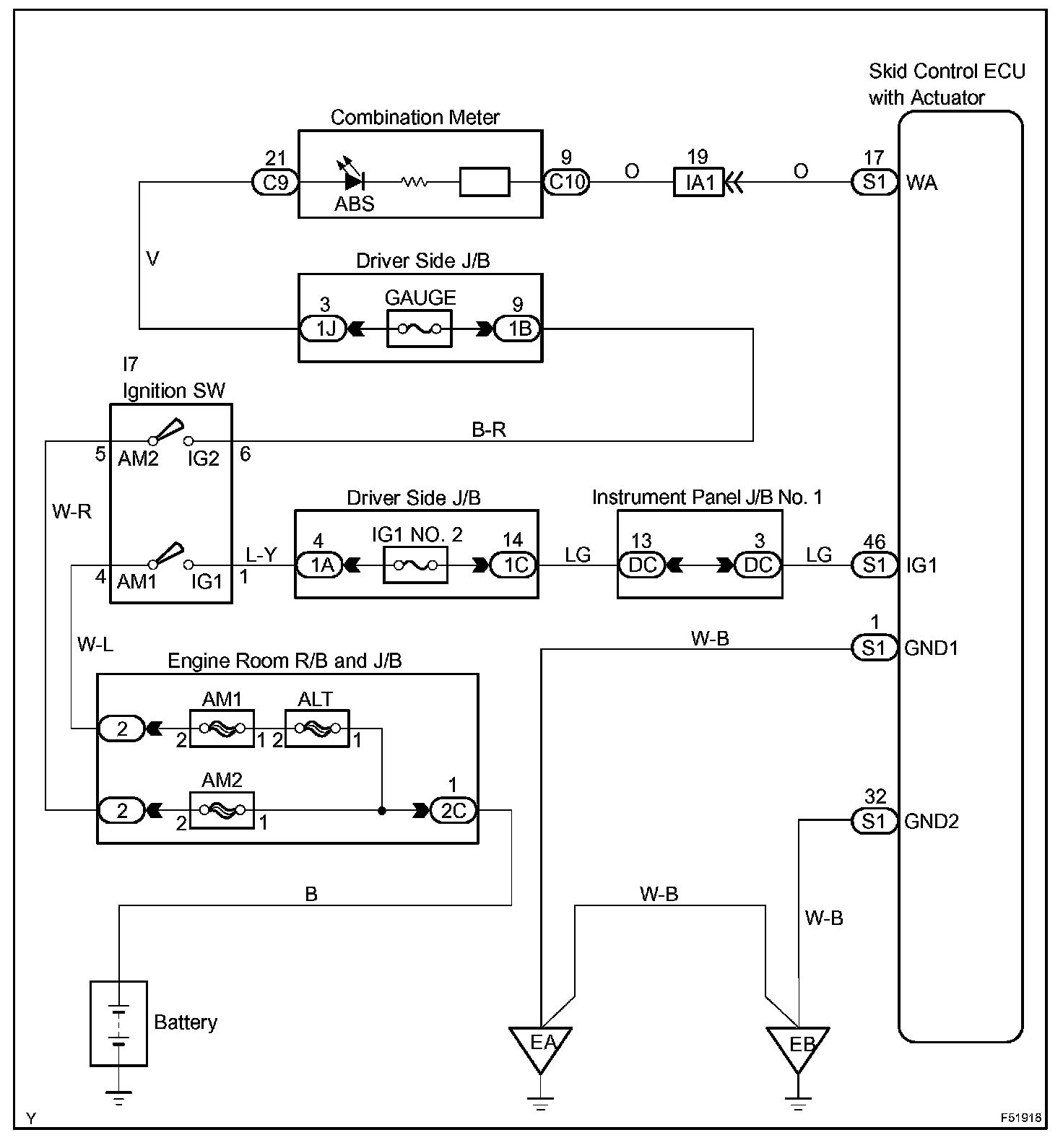

Wiring Diagram:

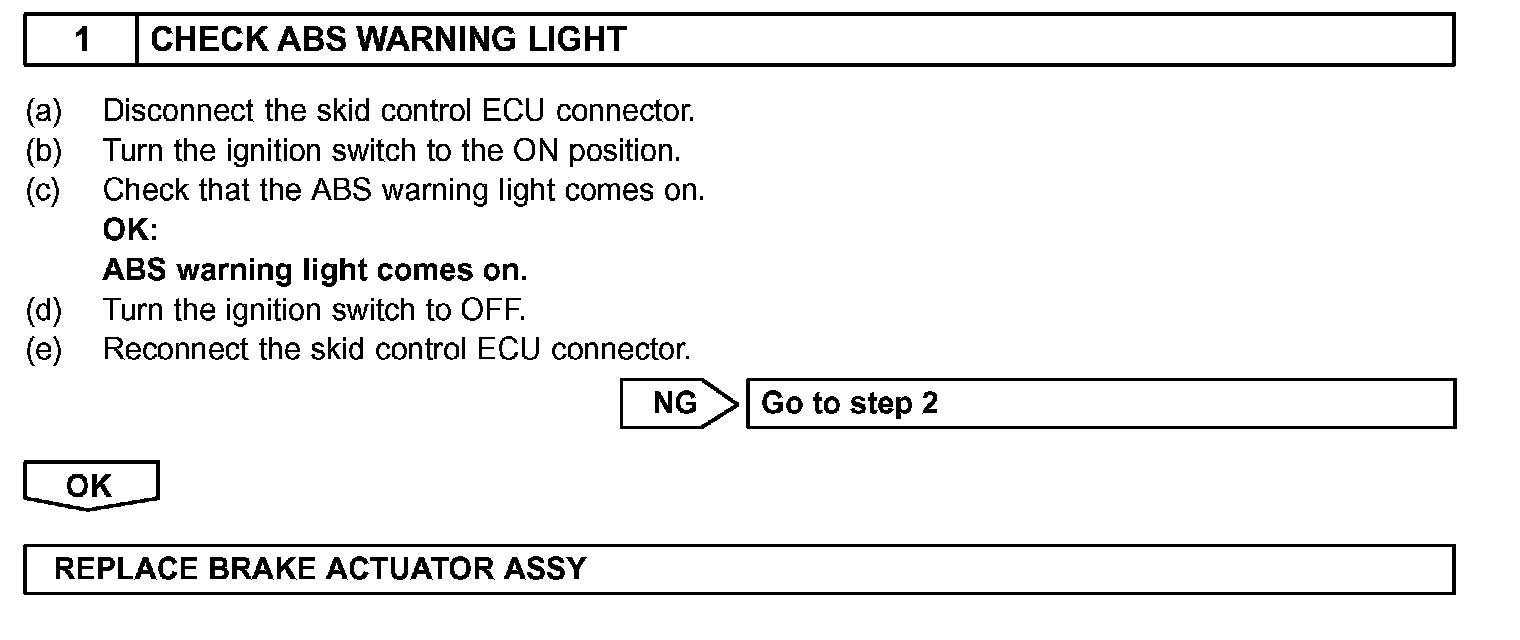

Step 1:

Step 2 - 3:

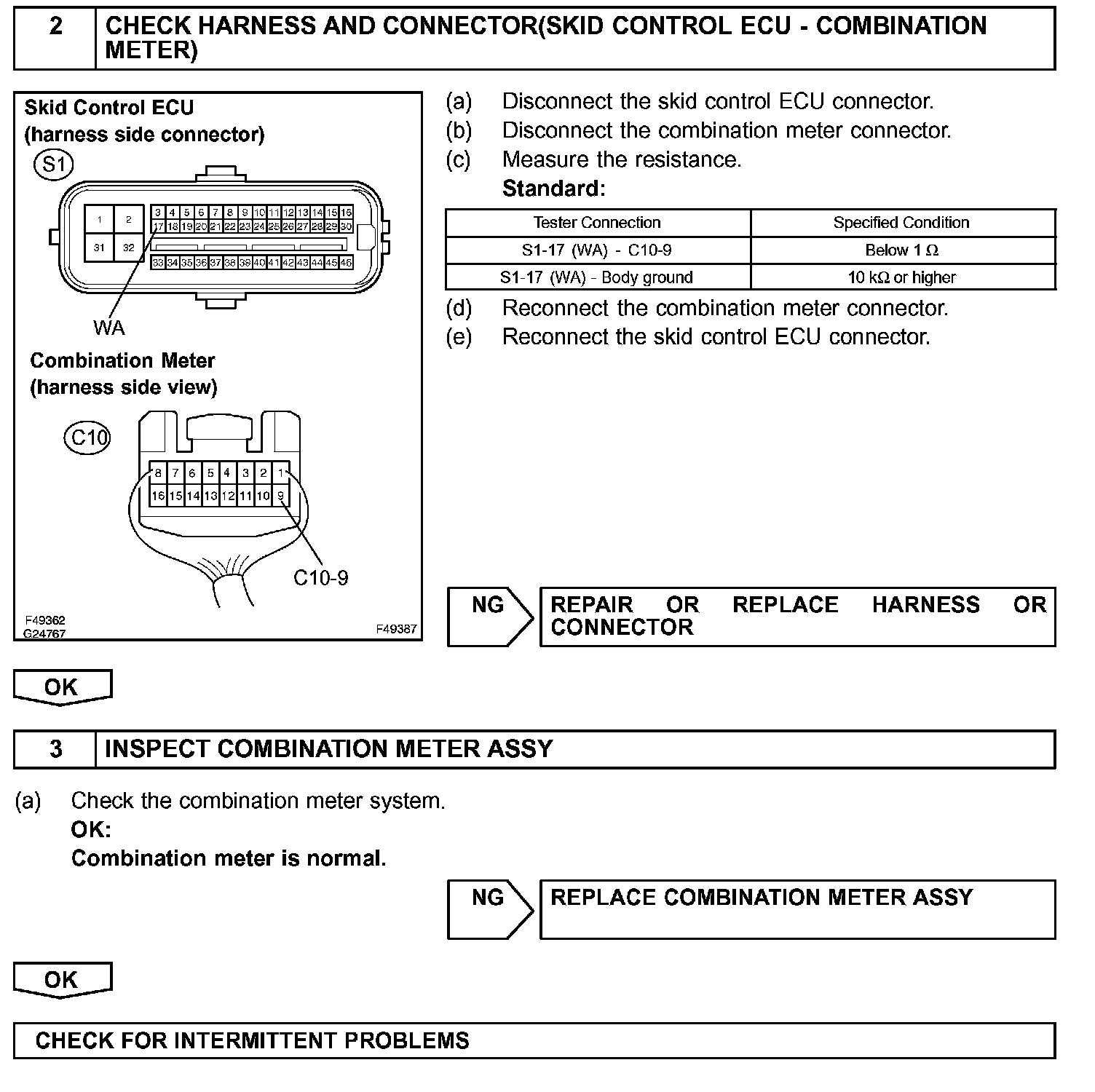

INSPECTION PROCEDURE
