Outer Rear View Mirror
OUTER REAR VIEW MIRROR ASSEMBLY LHREPLACEMENT
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH
3. REMOVE FRONT DOOR WINDOW REGULATOR HANDLE ASSEMBLY
4. REMOVE DOOR ASSIST GRIP COVER LH
5. REMOVE FRONT ARMREST BASE PANEL SUB-ASSEMBLY UPPER LH
6. REMOVE FRONT DOOR TRIM PANEL ASSEMBLY LH
7. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY LH

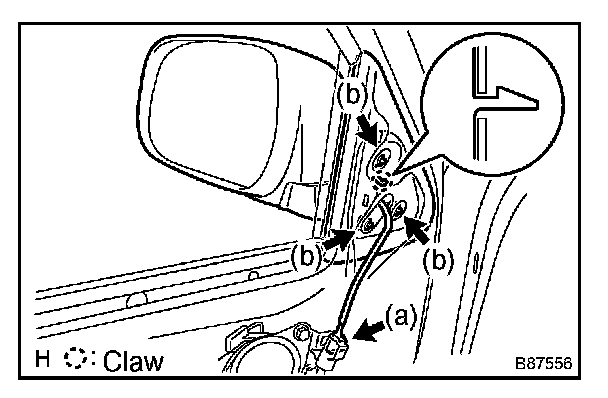

a. Disconnect the outer rear view mirror connector (w/Power mirror).

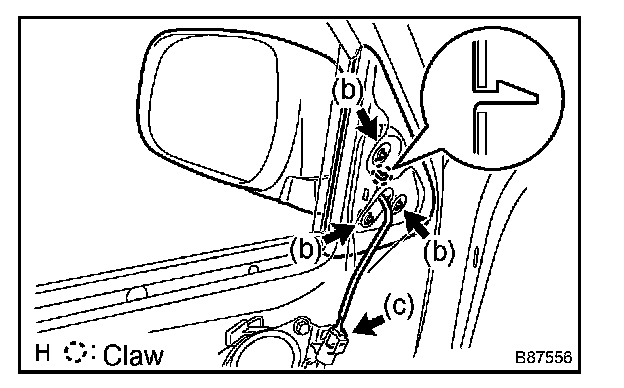

b. Remove the 3 nuts.
c. Disengage the claw and remove the outer rear view mirror.
8. REMOVE OUTER REAR VIEW MIRROR LH

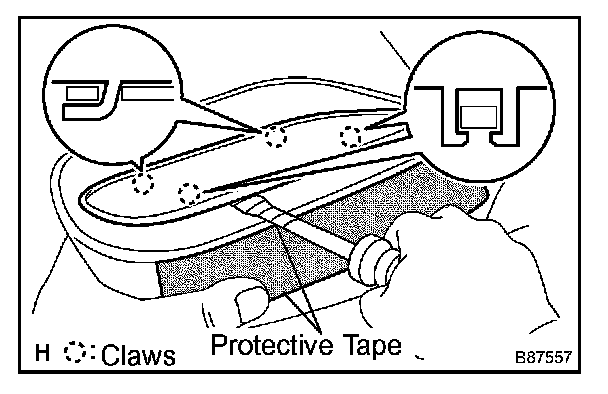

a. Apply protective tape to the outer circumference of the outer rear view mirror, as shown in the illustration.
b. Using a screwdriver with its tip taped in protective tape, disengage the 2 claws.
c. Disengage the 2 claws and remove the outer rear view mirror.
9. INSTALL OUTER REAR VIEW MIRROR LH

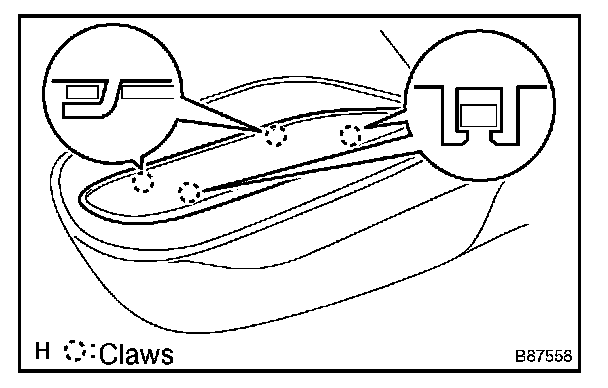

a. Engage the 2 claws into the outer rear view mirror.
b. Engage the 2 claws and install the outer rear view mirror.
10. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY LH
a. Engage the claw and install the outer rear view mirror.
b. Tighten the 3 nuts.
Torque: 8.0 N.m (80 kgf.cm, 71 in.lbf)
c. Connect the outer rear view mirror connector (w/ Power Mirror).
11. INSTALL FRONT DOOR TRIM PANEL ASSEMBLY LH
12. INSTALL FRONT ARMREST BASE PANEL SUB-ASSEMBLY UPPER LH
13. INSTALL DOOR ASSIST GRIP COVER LH
14. INSTALL FRONT DOOR WINDOW REGULATOR HANDLE ASSEMBLY
15. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH LH
16. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N.m (40 kgf.cm, 35 in.lbf)
