Inner Rear View Mirror
INNER REAR VIEW MIRROR ASSEMBLYREPLACEMENT
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (W/ AUTOMATIC GLARE-RESISTANT EC MIRROR)
2. REMOVE INNER REAR VIEW MIRROR ASSEMBLY
a. w/o Automatic glare-resistant EC mirror:

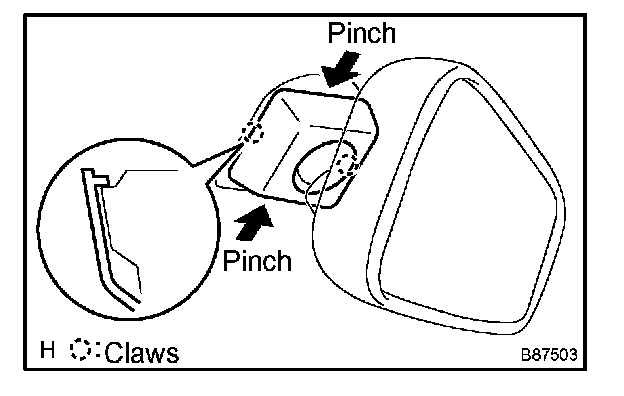

1. Pinch the cover and disengage the 2 claws, and remove the cover.

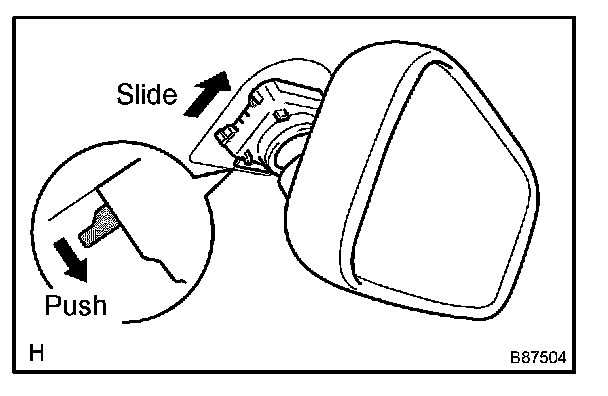

2. Push the lever, and slide and remove the inner rear view mirror.
b. w/ Automatic glare-resistant EC mirror.
1. Disconnect the EC mirror connector.

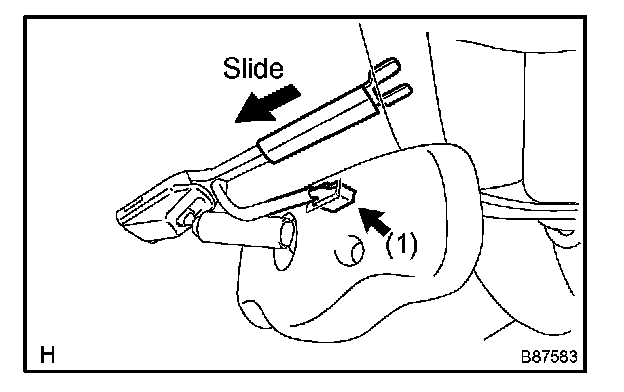

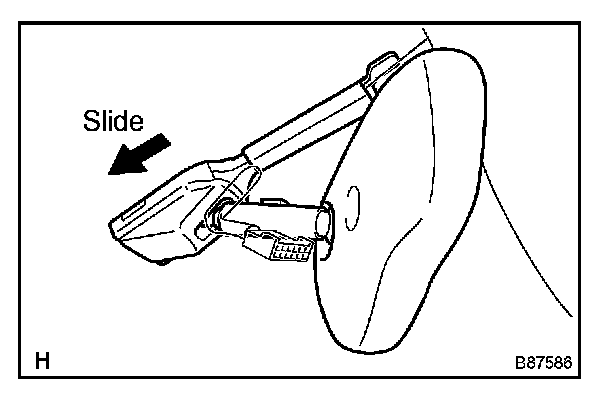

2. Slide the inner RR view mirror cover.
3. Slide the inner rear view mirror.

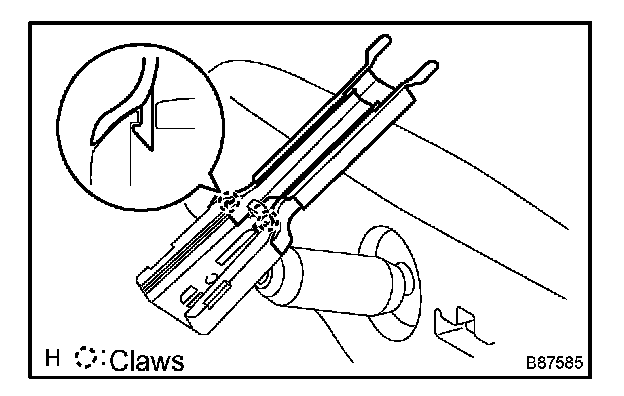

4. Disengage the 2 claws and remove the inner RR view mirror cover.
3. INSTALL INNER REAR VIEW MIRROR ASSEMBLY
a. w/o Automatic glare-resistant EC mirror:

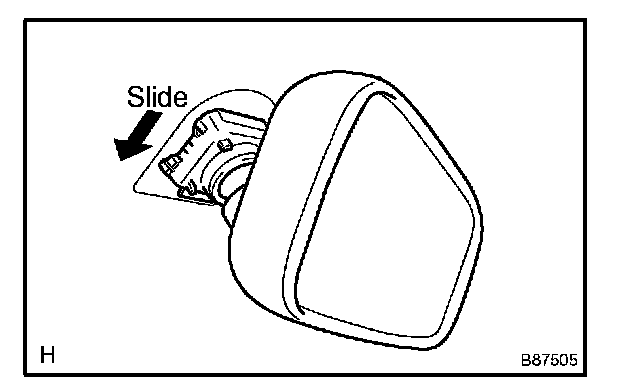

1. Slide and install the inner rear view mirror.
2. Engage the 2 claws and install the cover.
b. w/ Automatic glare-resistant EC mirror:

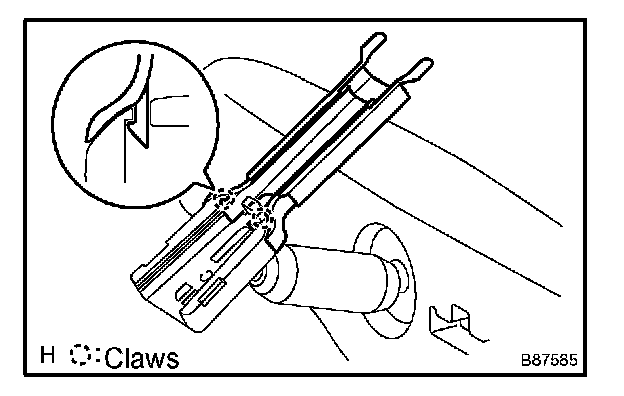

1. Engage the 2 claws and install the inner RR view mirror cover.

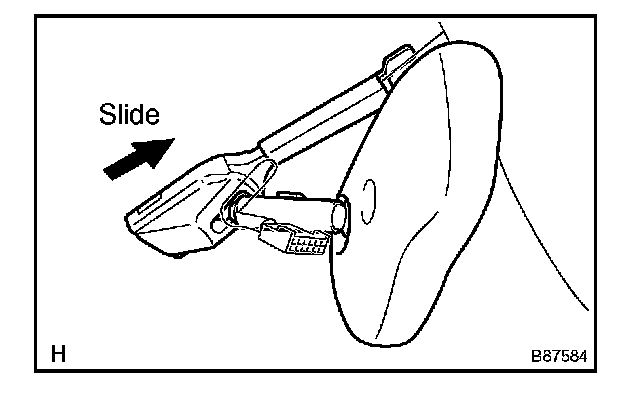

2. Slide and install the inner rear view mirror.

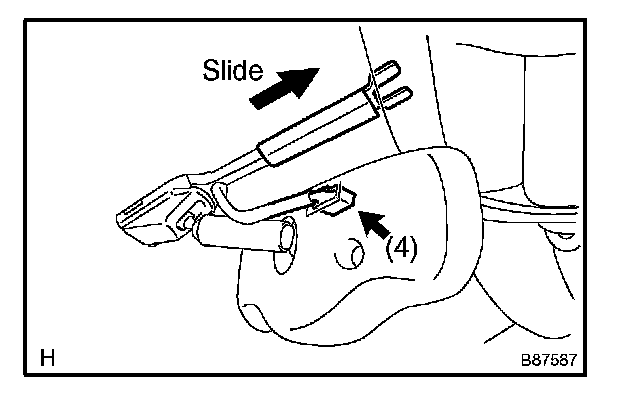

3. Slide the inner RR view mirror cover.
4. Connect the EC mirror connector.
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (W/ AUTOMATIC GLARE-RESISTANT EC MIRROR)
Torque: 3.9 N.m (40 kgf.cm, 35 in.lbf)
