All Doors Cannot Be Locked / Unlocked Simultaneously

ALL DOORS CANNOT BE LOCKED/UNLOCKED SIMULTANEOUSLY

CIRCUIT DESCRIPTION

The multiplex network body ECU activates the door lock motors with switch signals from the master switch, door control switch and driver/passenger side door key cylinder.

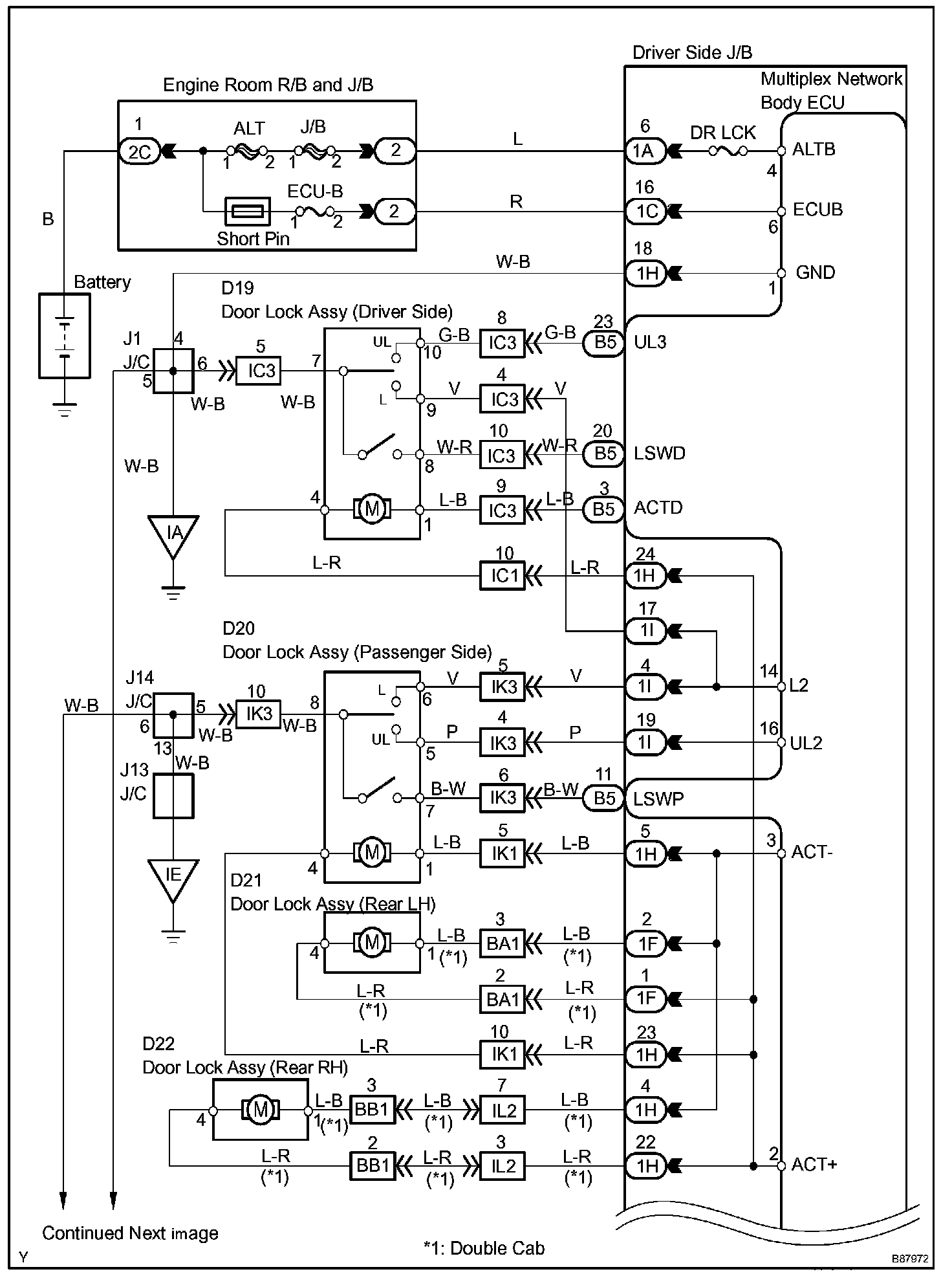

Wiring Diagram Part 1:

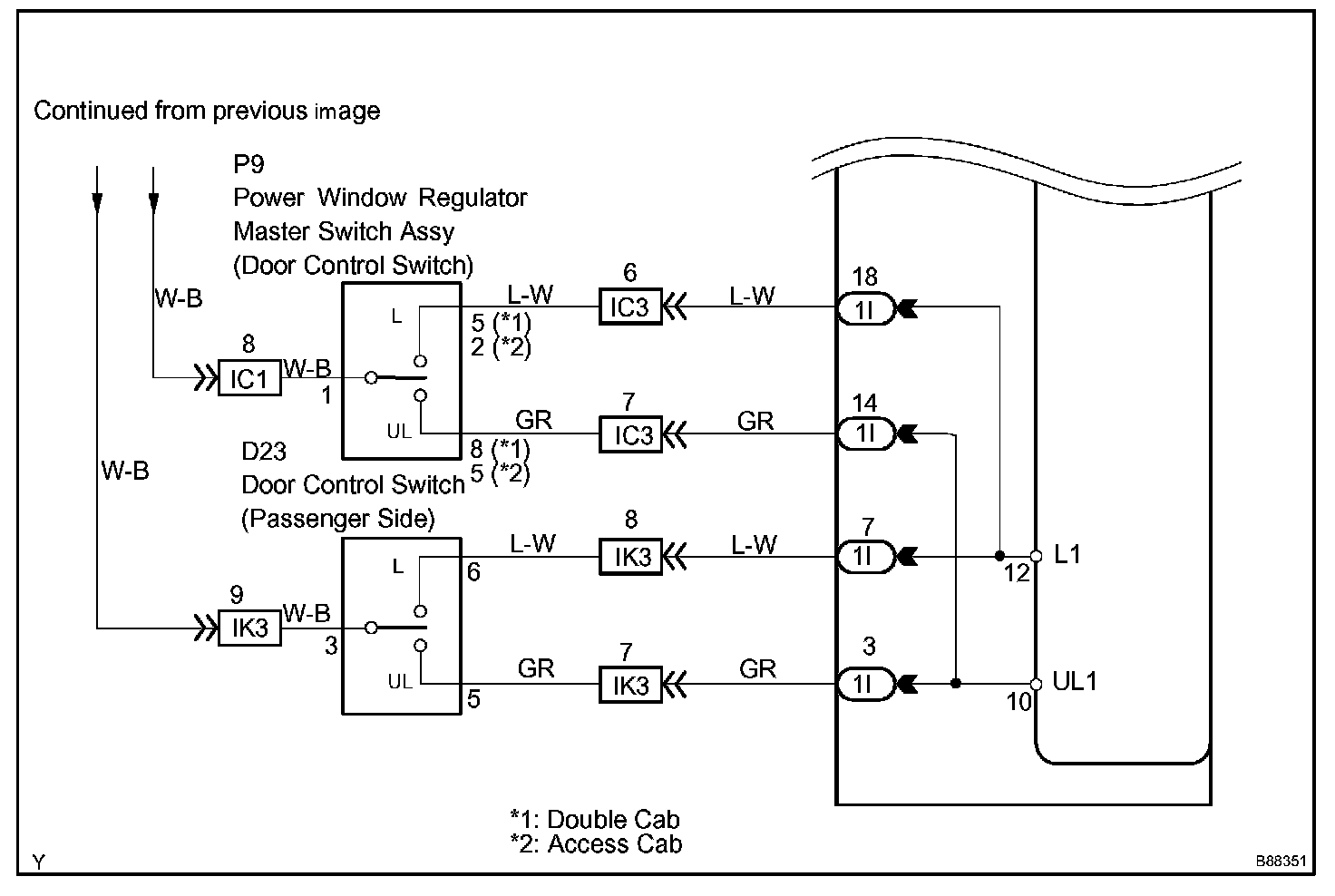

Wiring Diagram Part 2:

Step 1:

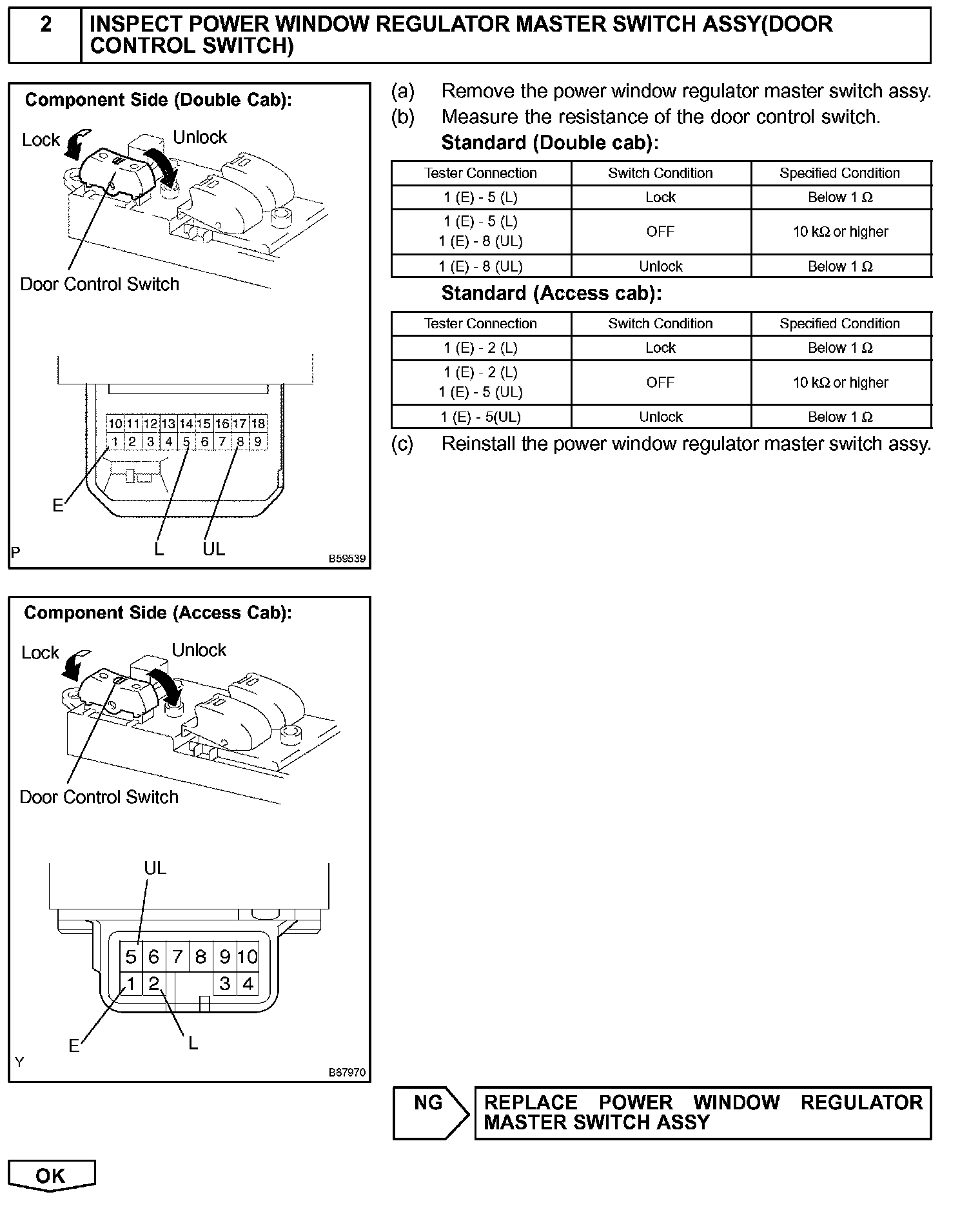

Step 2:

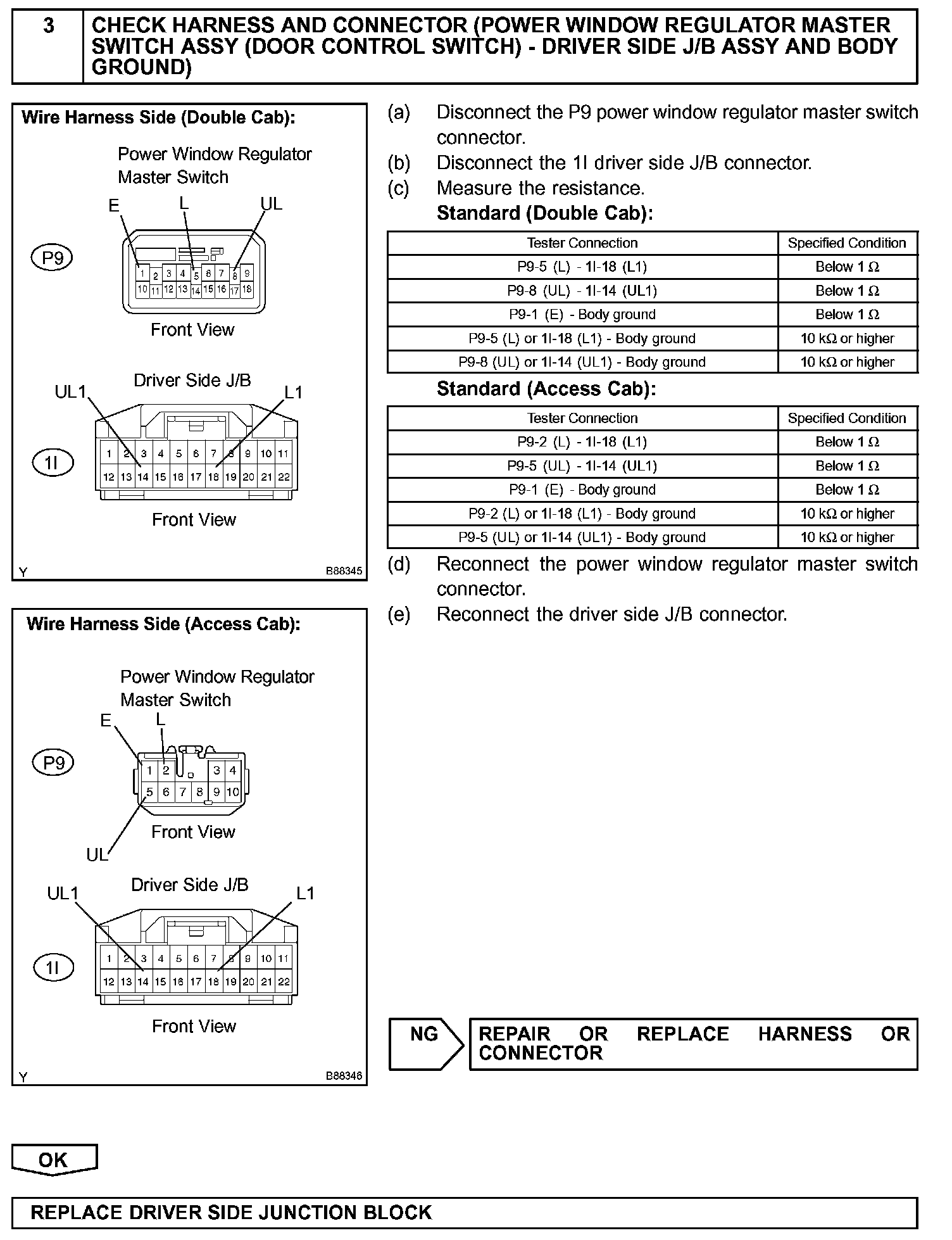

Step 3:

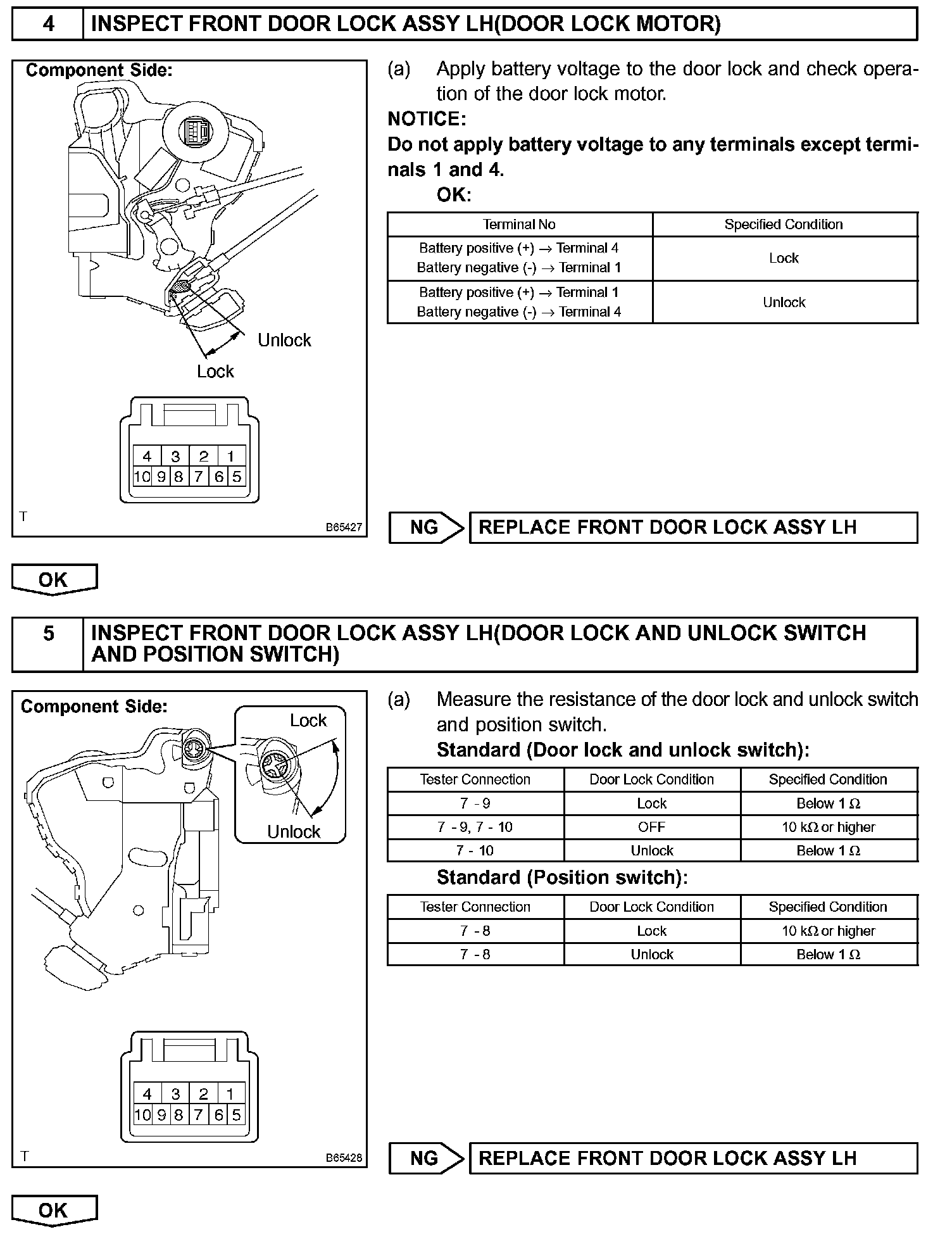

Step 4 - 5:

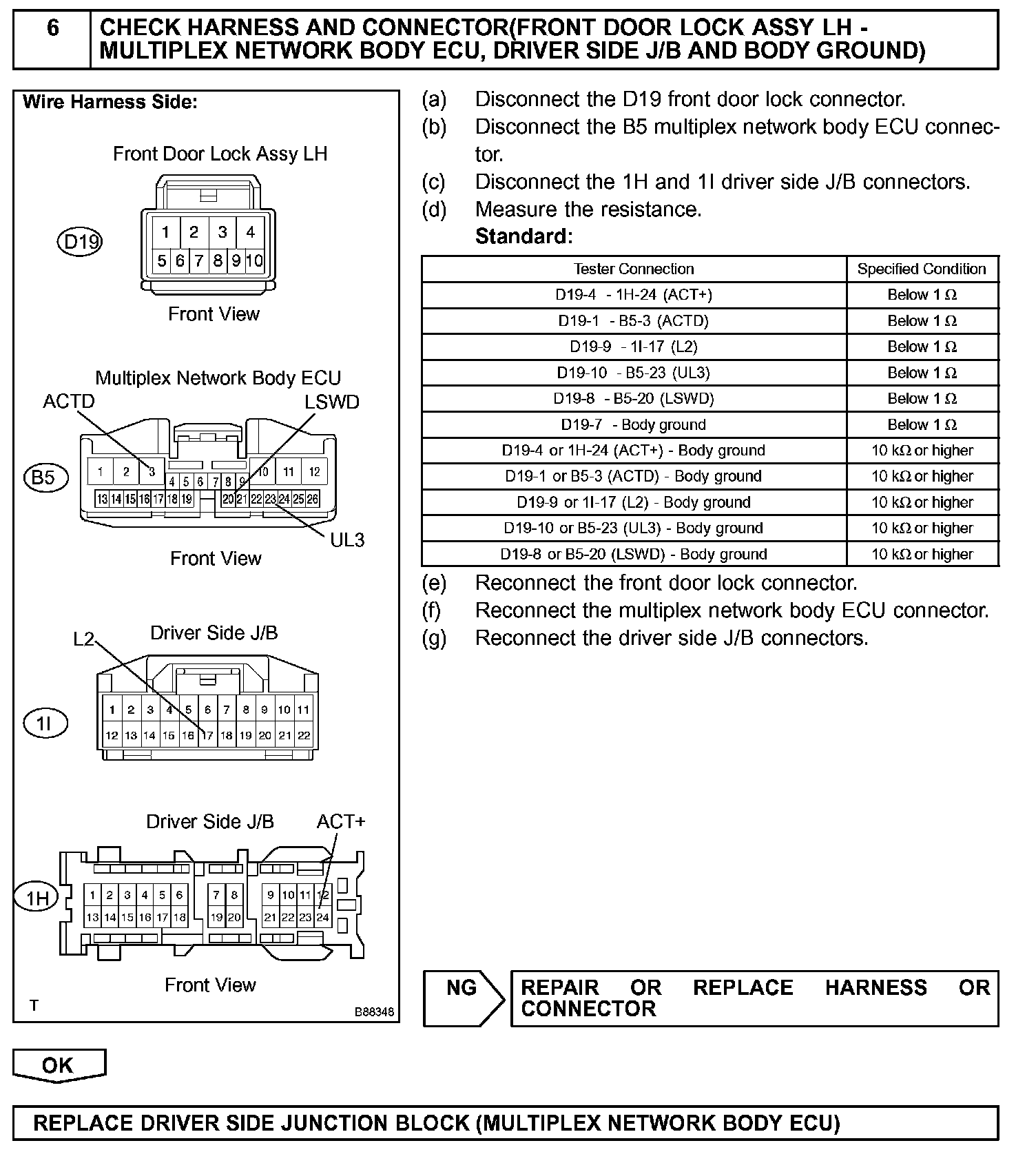

Step 6:

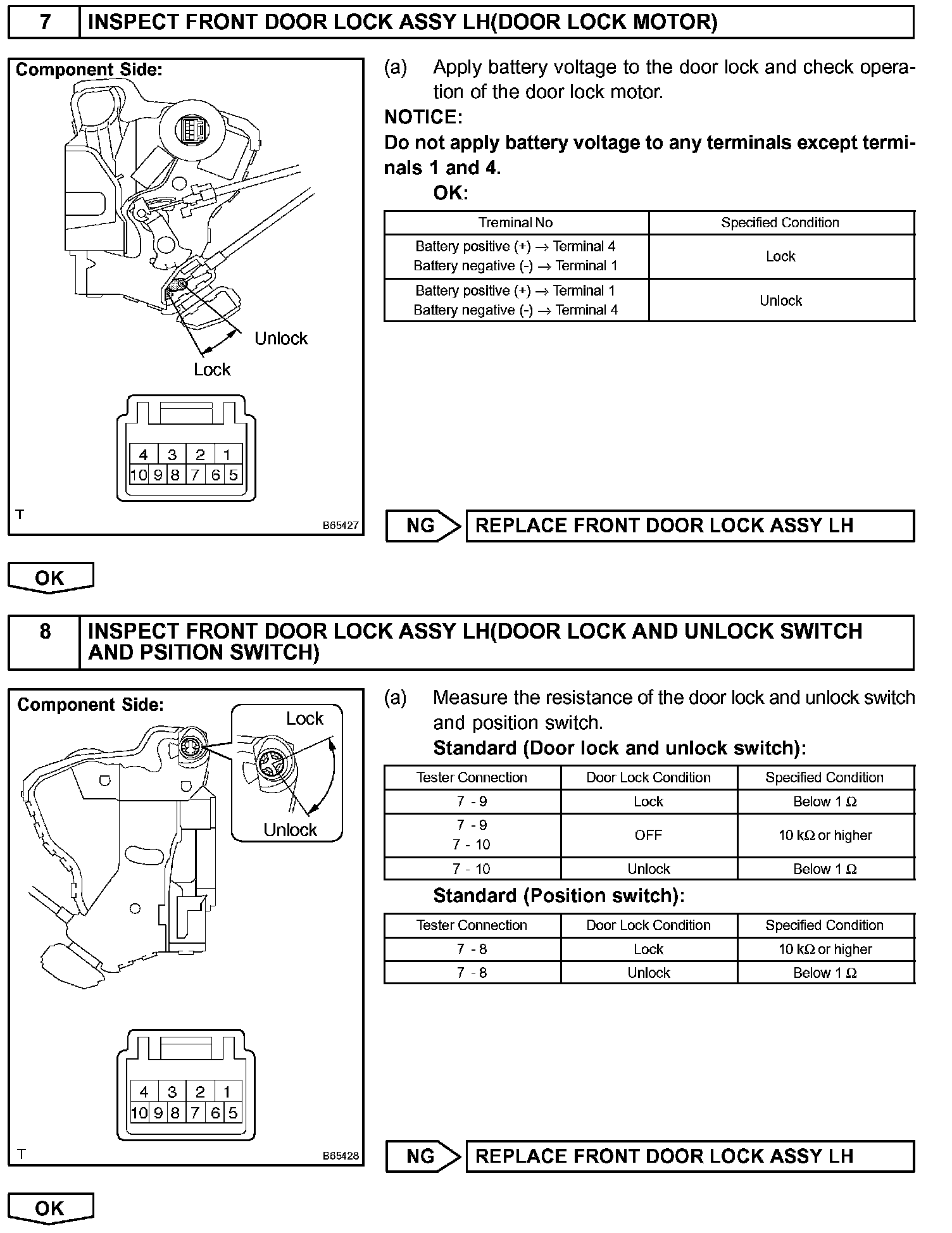

Step 7 - 8:

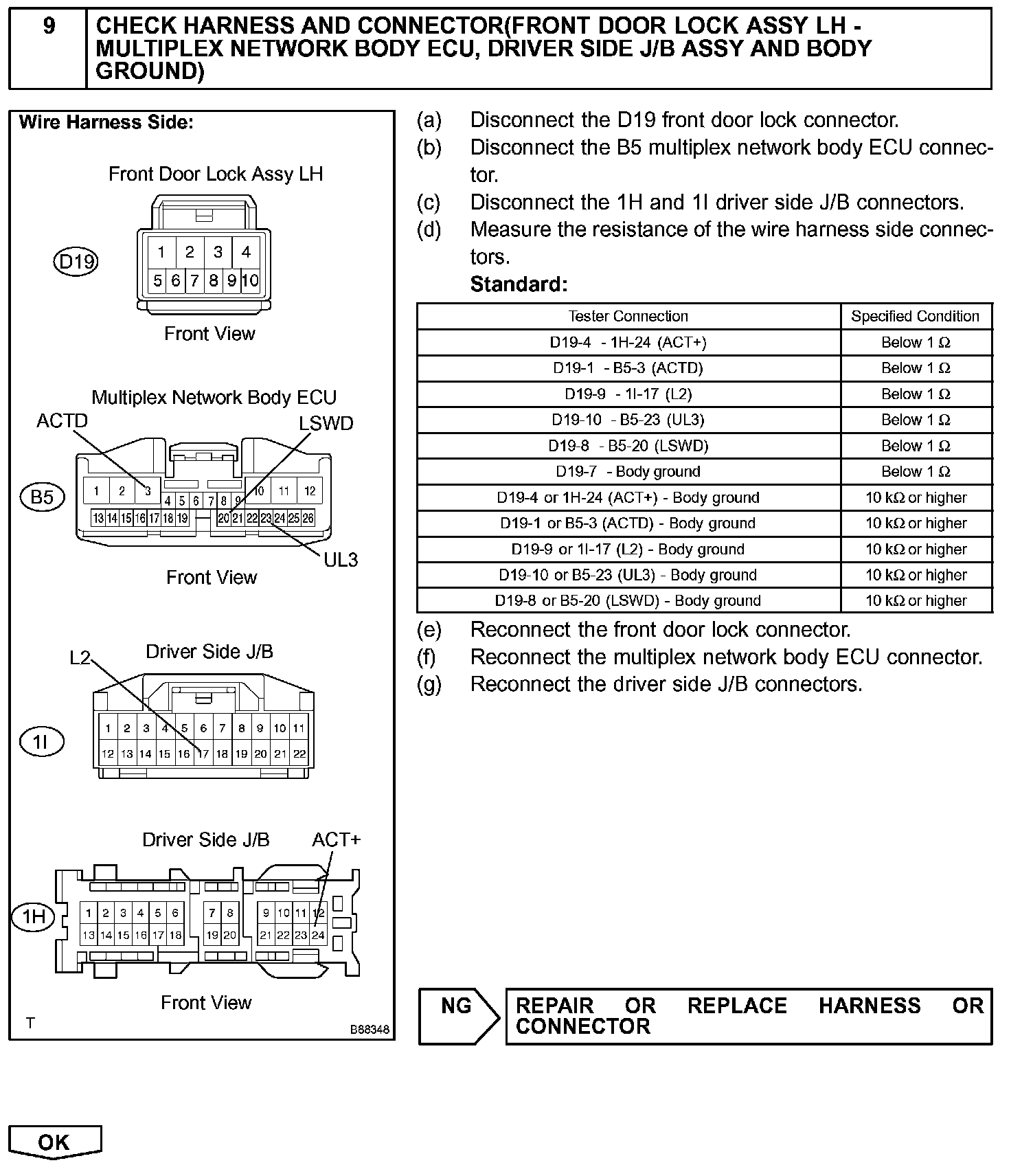

Step 9:

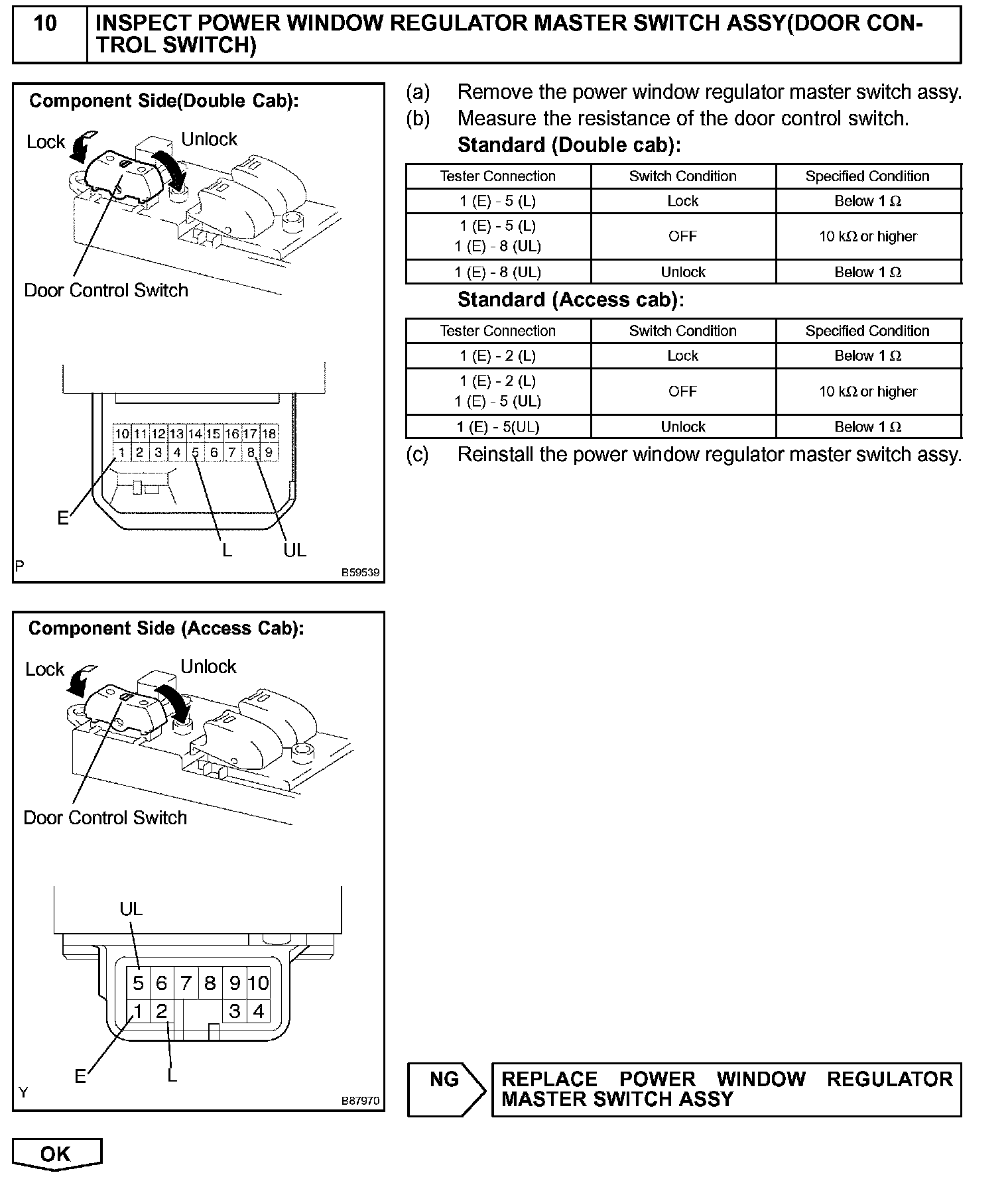

Step 10:

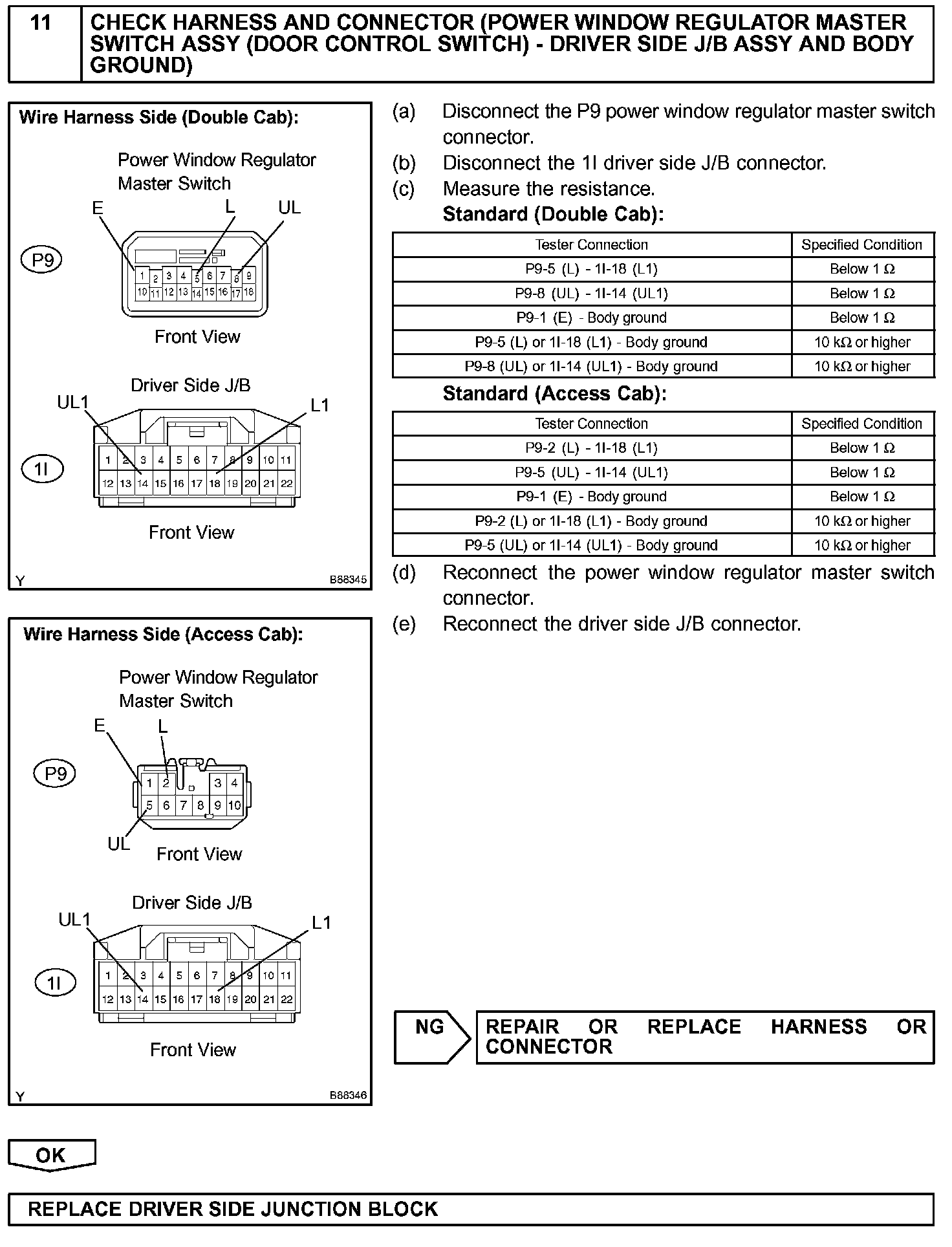

Step 11:

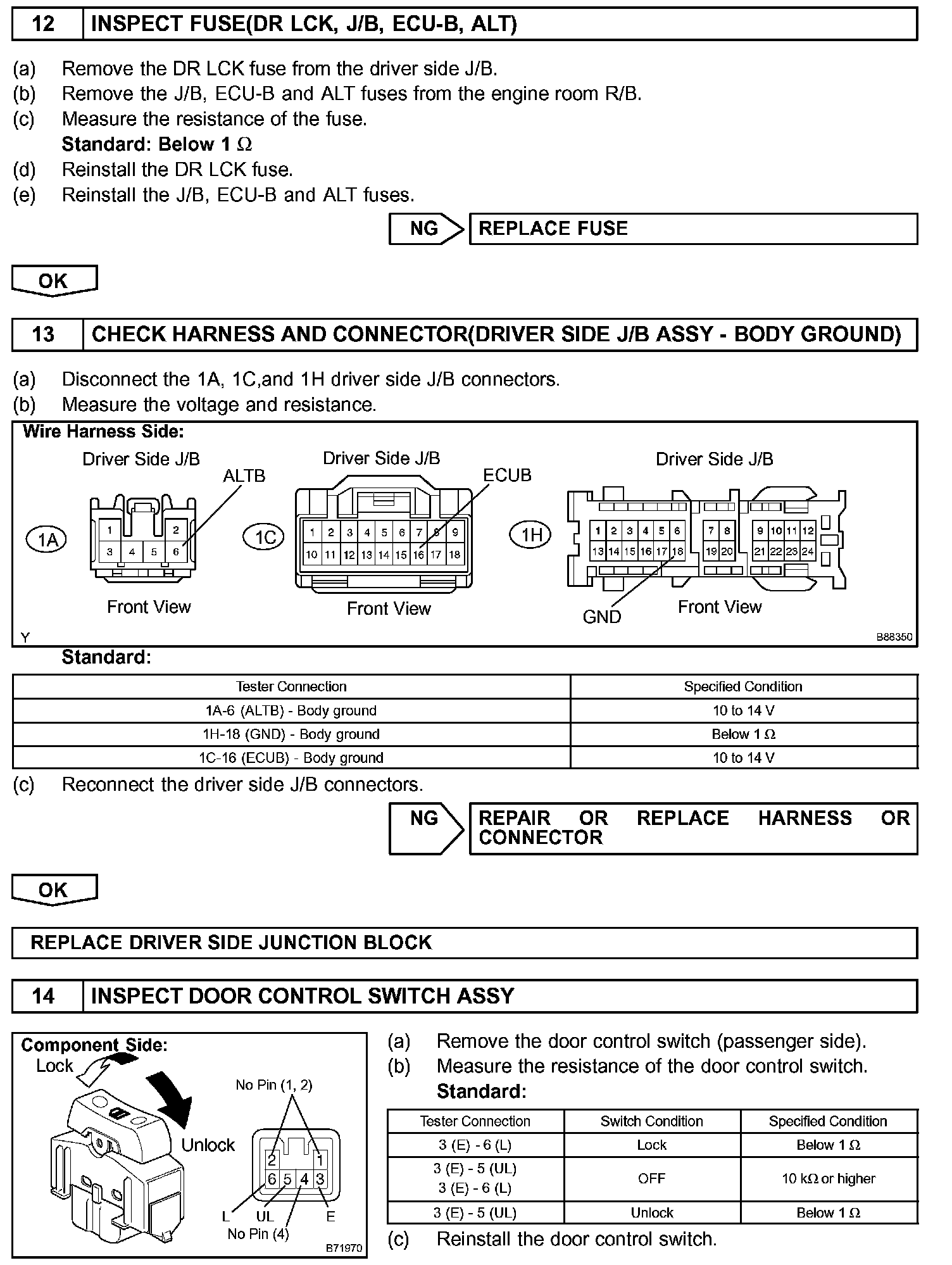

Step 12 - 14:

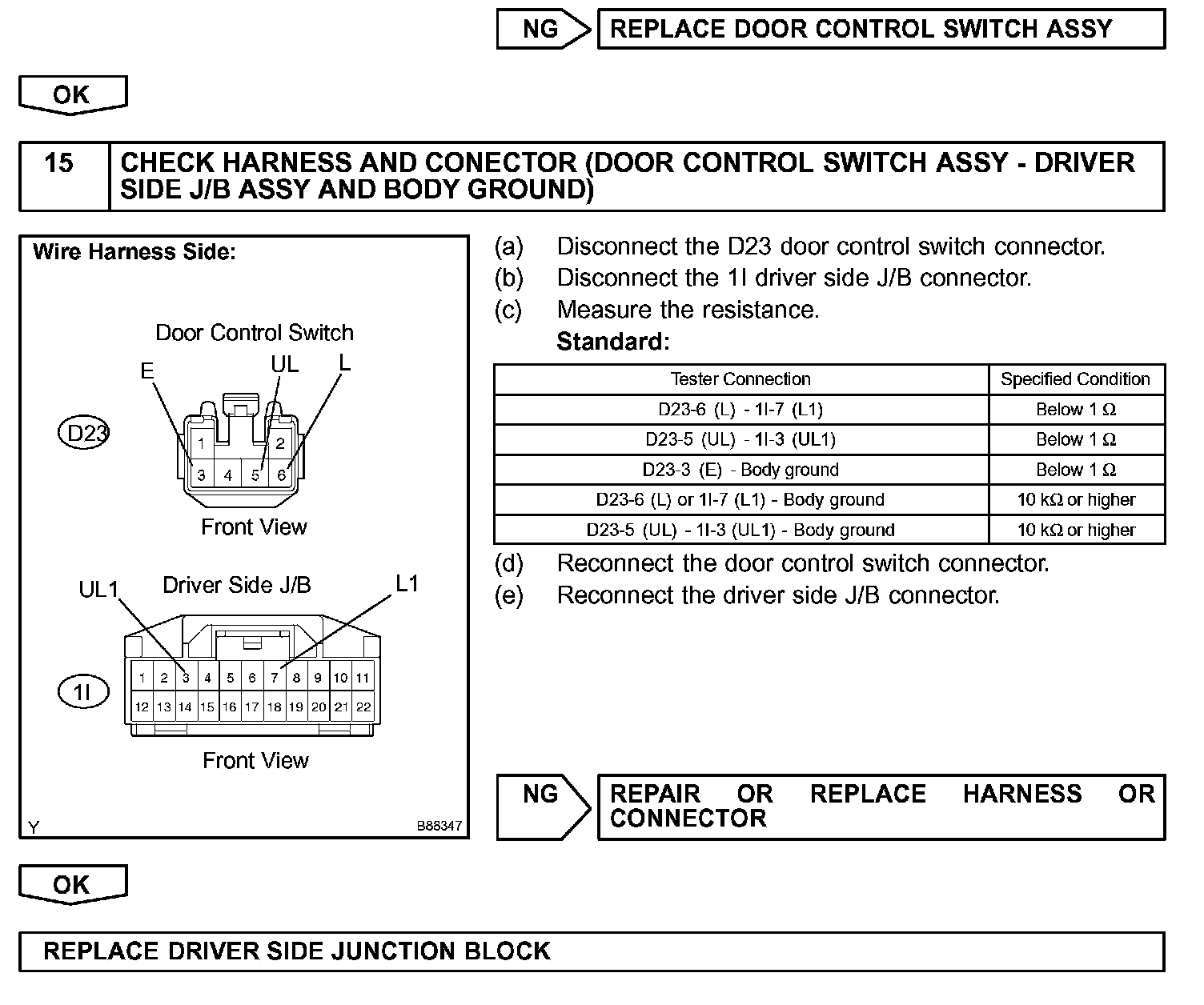

Step 14 (contd.) - 15:

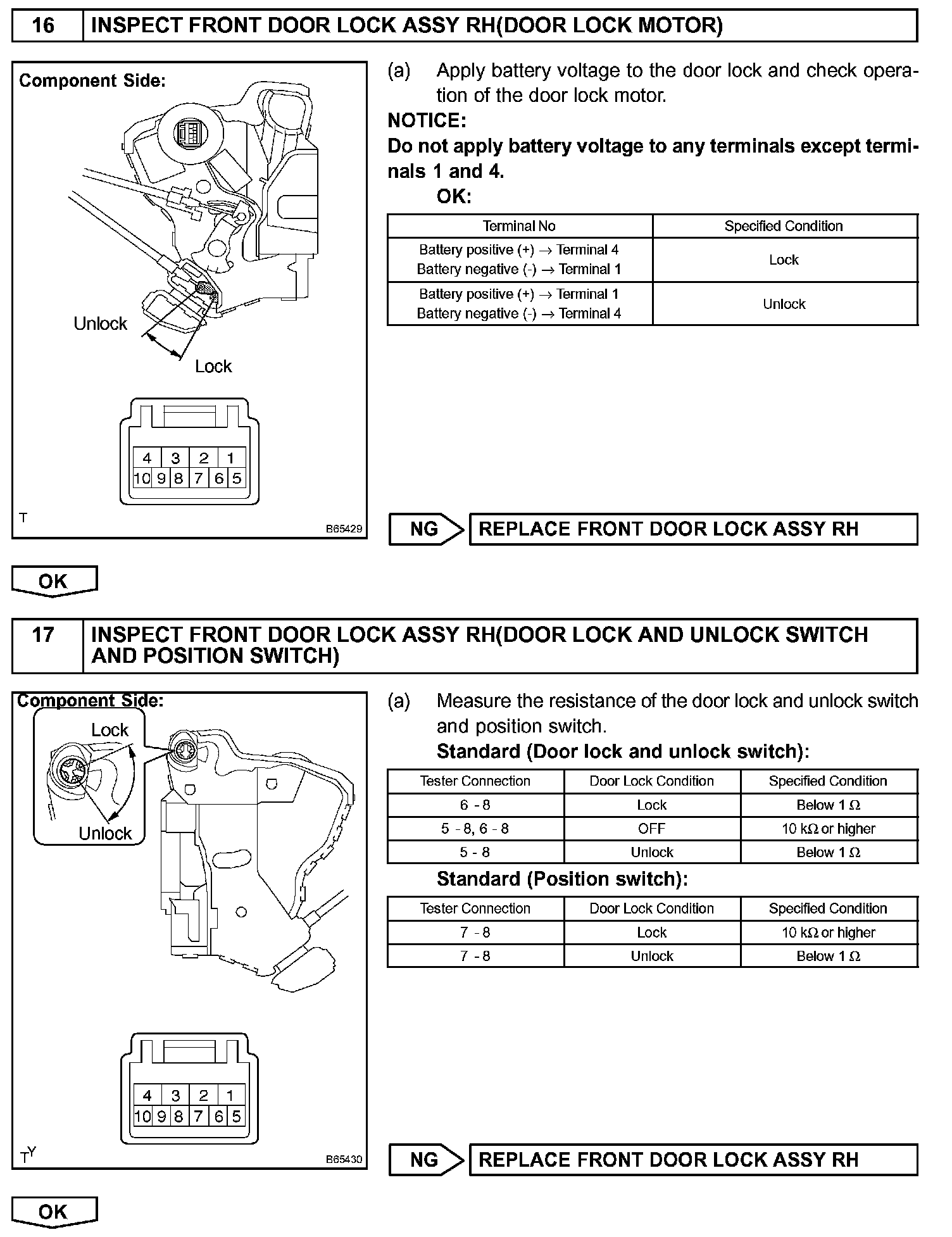

Step 16 - 17:

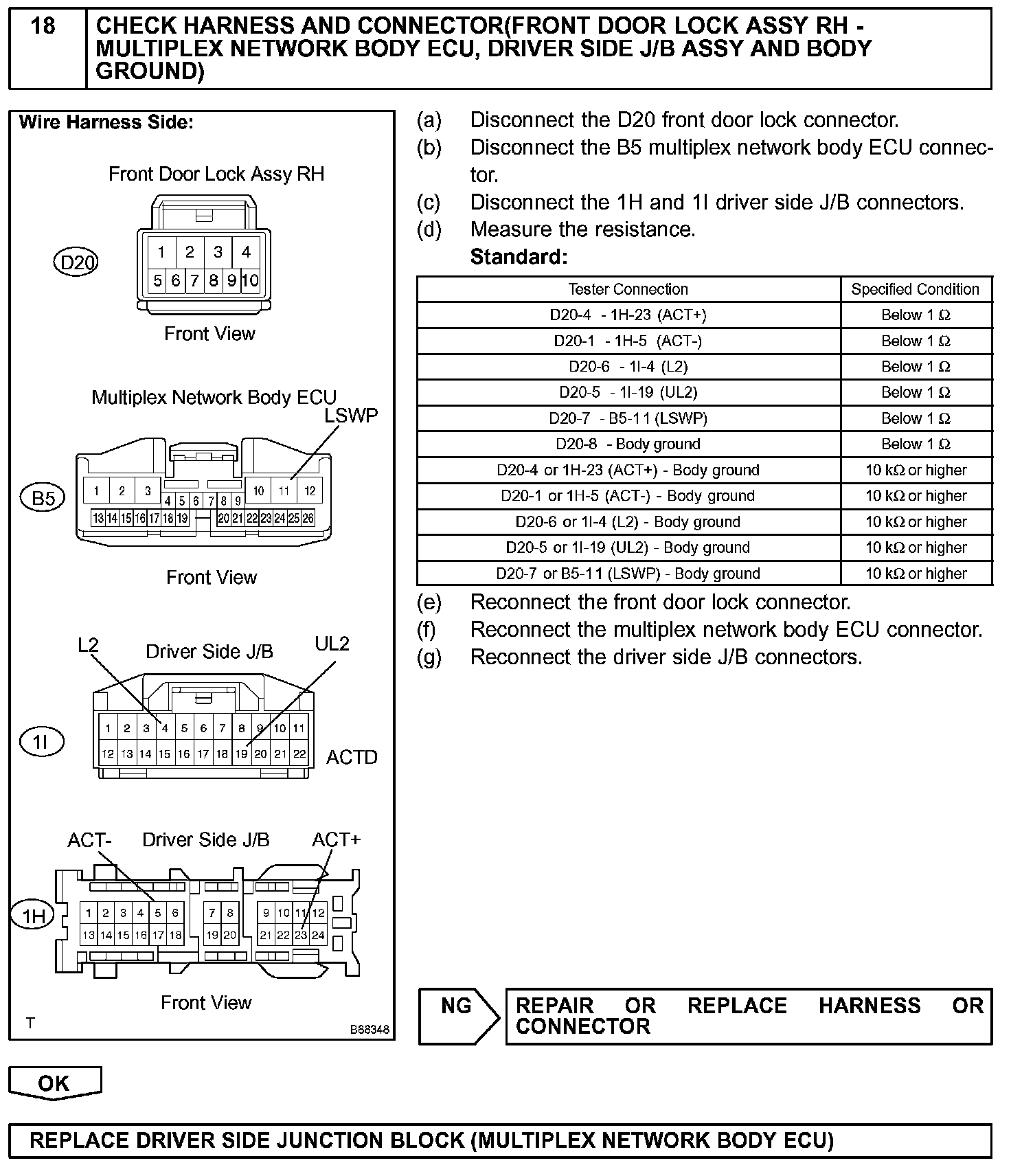

Step 18:

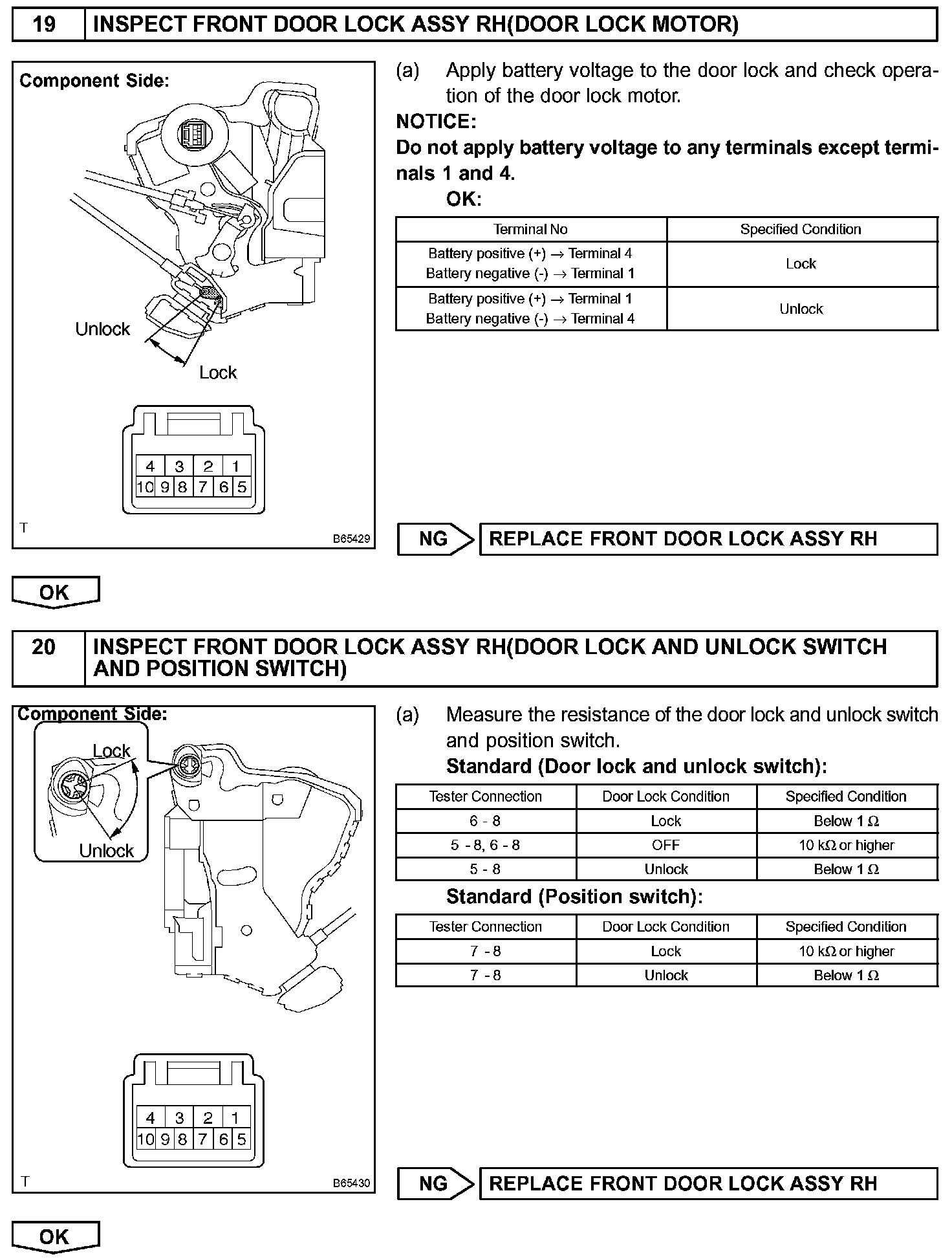

Step 19 - 20:

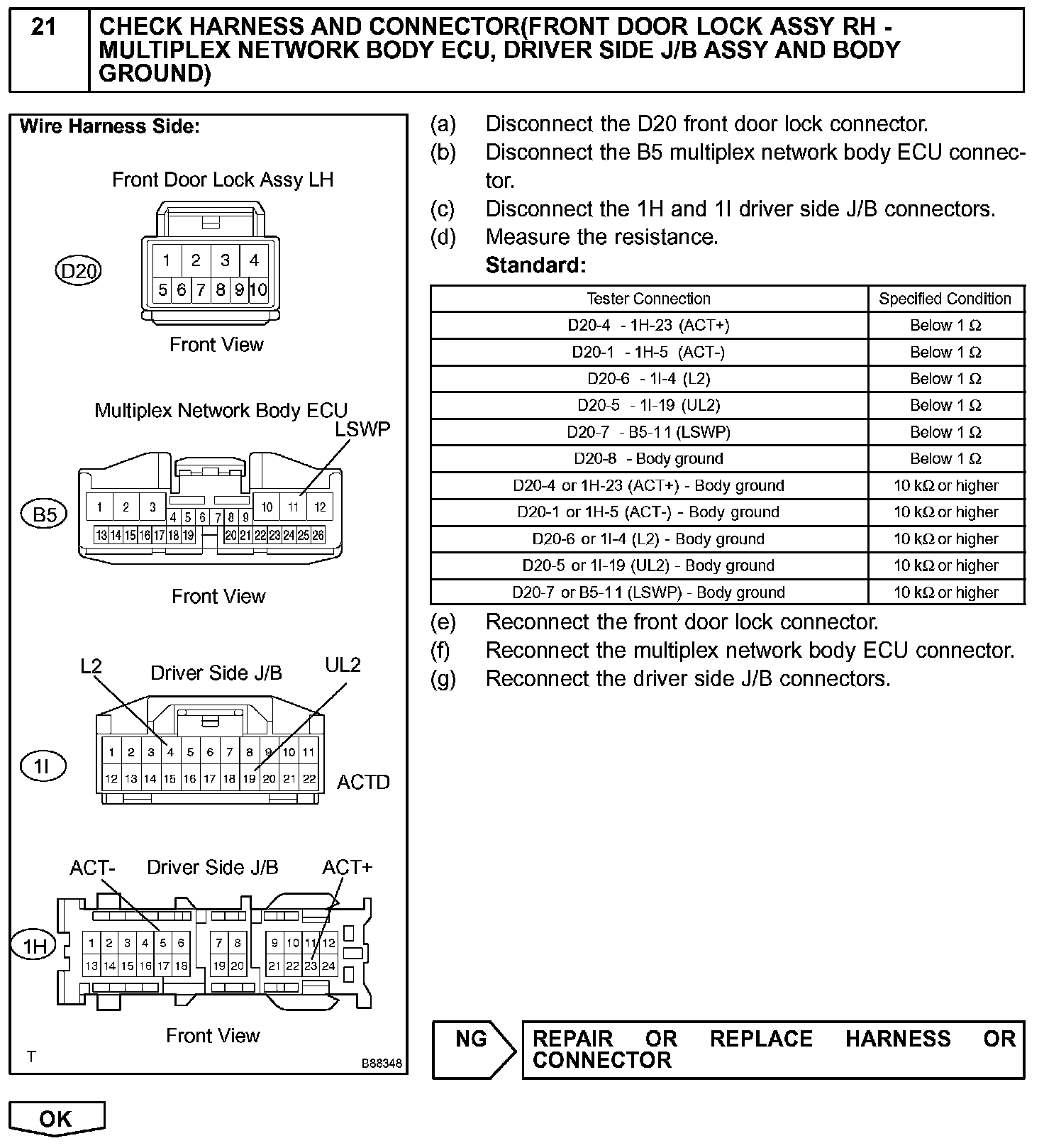

Step 21:

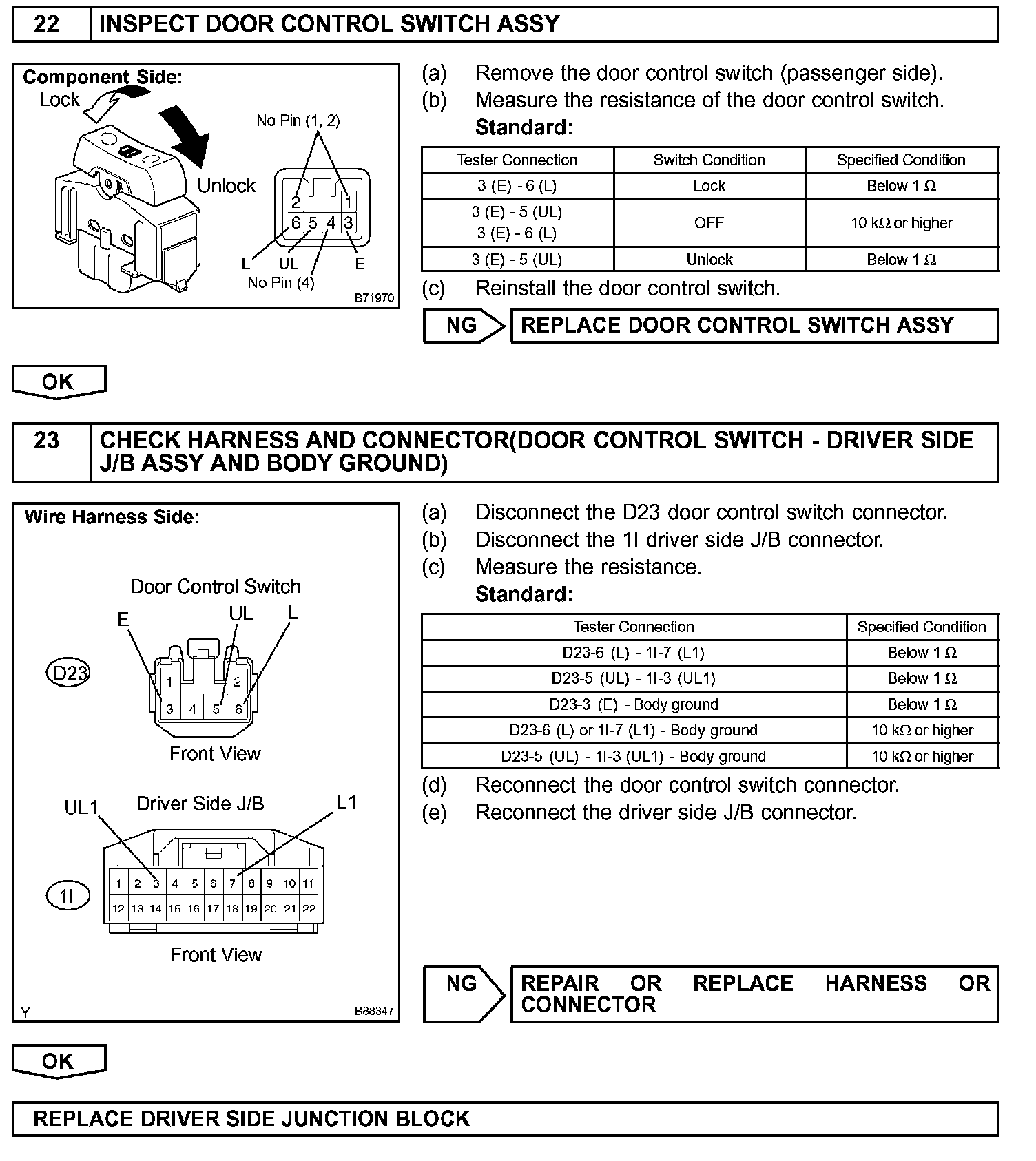

Step 22 - 23:

INSPECTION PROCEDURE
