Trailer Towing Relay: Testing and Inspection

INSPECT TOWING CONVERTER RELAY

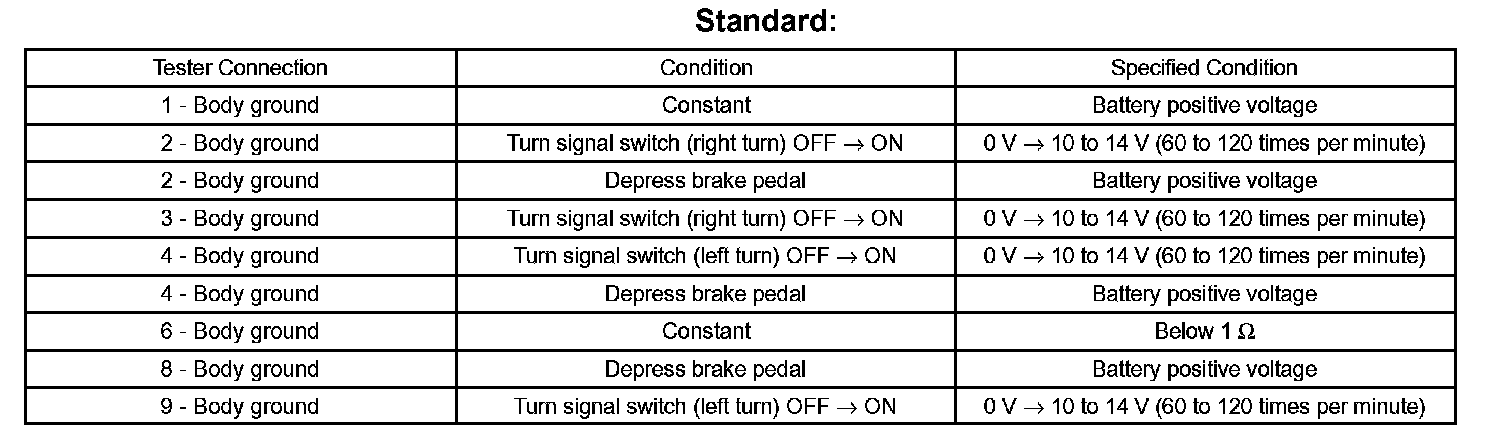

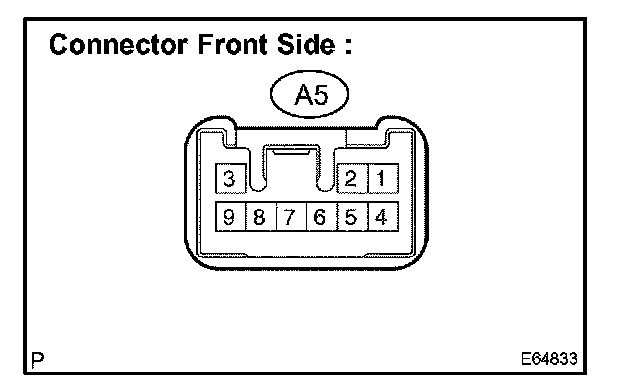

a. Measure the voltage and check the results in accordance with the value(s) in the table.







INSPECT TOWING CONVERTER RELAY

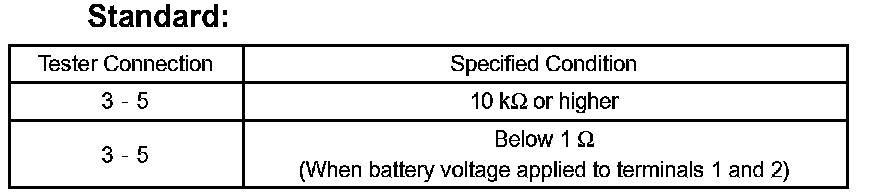

a. Check the resistance.

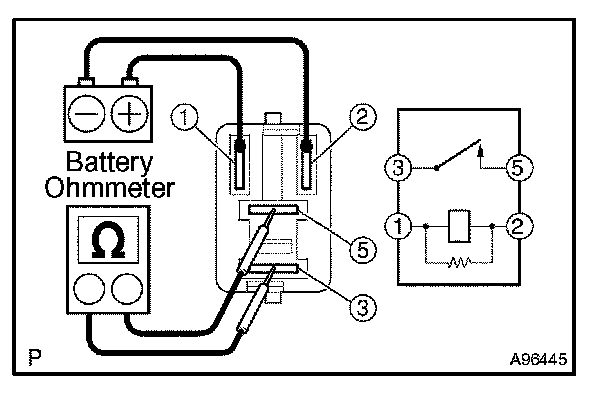

1. Using an ohmmeter, measure the resistance between the terminals.
If the result is not as specified, replace the towing converter relay.
