Trailer Towing Relay: Service and Repair

TOWING CONVERTER RELAY

REPLACEMENT

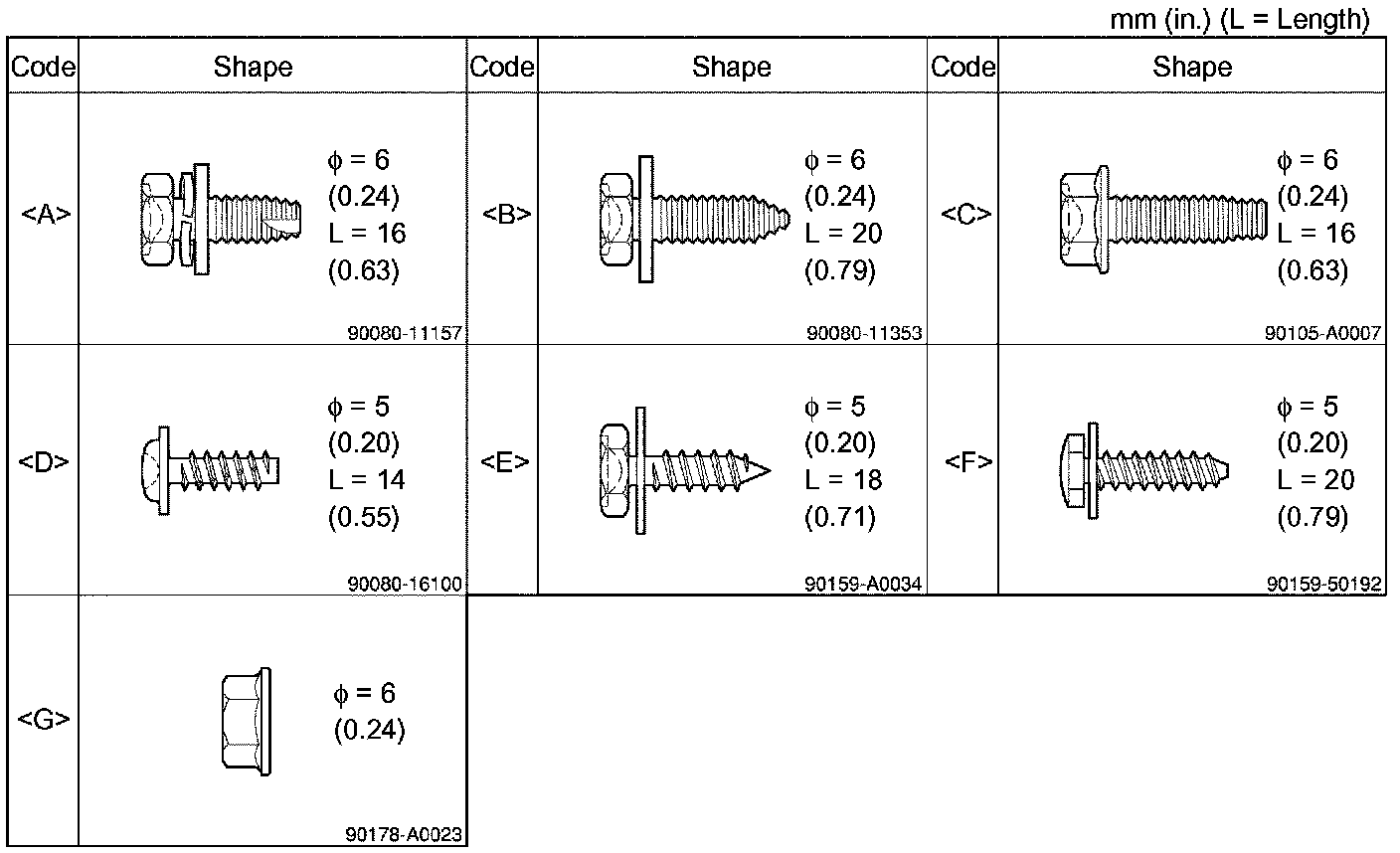

1. TABLE OF BOLT, SCREW AND NUT






HINT: All bolts, screws and nuts relevant to installing and removing the instrument panel are shown along with their alphabetic codes in the table.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Wait for at least 90 seconds after disconnecting the cable to prevent the airbag from working.

3. REMOVE FRONT FLOOR FOOTREST
4. REMOVE FRONT DOOR SCUFF PLATE LH
5. REMOVE FRONT DOOR SCUFF PLATE RH
6. REMOVE COWL SIDE TRIM BOARD LH
7. REMOVE COWL SIDE TRIM BOARD RH
8. SEPARATE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
9. SEPARATE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
10. REMOVE FRONT PILLAR GARNISH LH
11. REMOVE FRONT PILLAR GARNISH RH
12. REMOVE INSTRUMENT PANEL UNDER TRAY (PEDAL TYPE PARKING BRAKE)
13. REMOVE INSTRUMENT PANEL HOLE COVER (LEVER TYPE PARKING BRAKE)
14. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSEMBLY (AUTOMATIC TRANSMISSION,SEPARATE SEAT TYPE)
15. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSEMBLY (MANUAL TRANSMISSION, SEPARATE SEAT TYPE)
16. REMOVE CONSOLE BOX ASSEMBLY REAR (SEPARATE SEAT TYPE)
17. REMOVE INSTRUMENT PANEL CUP HOLDER TRAY (AUTOMATIC TRANSMISSION, SEPARATE SEAT TYPE)
18. REMOVE CONSOLE BOX FRONT (AUTOMATIC TRANSMISSION, SEPARATE SEAT TYPE)
19. REMOVE CONSOLE BOX FRONT (MANUAL TRANSMISSION, SEPARATE SEAT TYPE)
20. REMOVE CONSOLE BOX FRONT (AUTOMATIC TRANSMISSION, BENCH SEAT TYPE)
20. REMOVE CONSOLE BOX FRONT (AUTOMATIC TRANSMISSION, BENCH SEAT TYPE)
21. REMOVE CONSOLE BOX FRONT (MANUAL TRANSMISSION, BENCH SEAT TYPE)
22. REMOVE AIR CONDITIONING CONTROL ASSEMBLY
23. REMOVE RADIO RECEIVER ASSEMBLY W/ BRACKET
24. SEPARATE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
25. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER NO.1
26. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
27. REMOVE COMBINATION METER ASSEMBLY
28. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER
29. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
30. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LOWER RH
31. REMOVE INSTRUMENT PANEL LOWER LH
32. REMOVE INSTRUMENT COVER SUB-ASSEMBLY LOWER
33. REMOVE INSTRUMENT SIDE PANEL RH
34. DISCONNECT PASSENGER AIRBAG CONNECTOR
35. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY W/PASSENGER AIRBAG ASSEMBLY




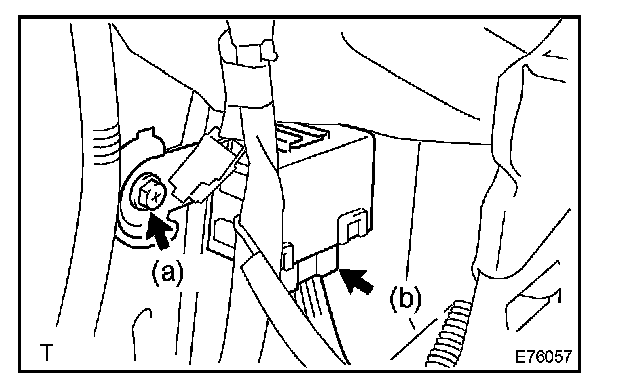

36. REMOVE TOWING CONVERTER RELAY
a. Disconnect the connector.
b. Remove the bolt and towing converter relay.

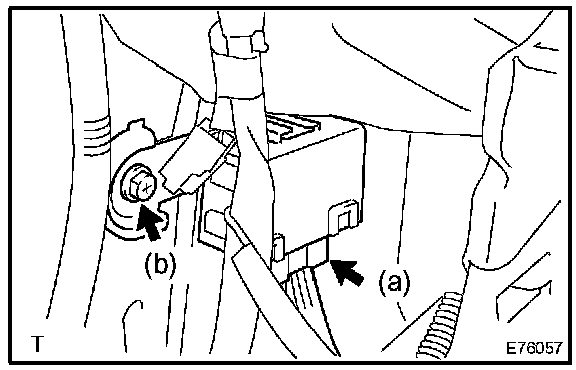

37. INSTALL TOWING CONVERTER RELAY
a. Install the towing converter relay with the bolt.

Torque: 7.0 N.m (71 kgf.cm, 62 in.lbf)

b. Connect the connector.

38. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY W/PASSENGER AIRBAG ASSEMBLY
39. CONNECT PASSENGER AIRBAG CONNECTOR
40. INSTALL INSTRUMENT SIDE PANEL RH
41. INSTALL INSTRUMENT COVER SUB-ASSEMBLY LOWER
42. INSTALL INSTRUMENT PANEL LOWER LH
43. INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LOWER RH
44. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
45. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER
46. INSTALL COMBINATION METER ASSEMBLY
47. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
48. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER NO.1
49. CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
50. INSTALL RADIO RECEIVER ASSEMBLY W/ BRACKET
51. INSTALL AIR CONDITIONING CONTROL ASSEMBLY
52. INSTALL CONSOLE BOX FRONT (MANUAL TRANSMISSION, BENCH SEAT TYPE
53. INSTALL CONSOLE BOX FRONT (AUTOMATIC TRANSMISSION, BENCH SEAT TYPE)
54. INSTALL CONSOLE BOX FRONT (MANUAL TRANSMISSION, SEPARATE SEAT TYPE)
55. INSTALL CONSOLE BOX FRONT (AUTOMATIC TRANSMISSION, SEPARATE SEAT TYPE)
56. INSTALL INSTRUMENT PANEL CUP HOLDER TRAY (AUTOMATIC TRANSMISSION, SEPARATE SEAT TYPE)
57. INSTALL CONSOLE BOX ASSEMBLY REAR (SEPARATE SEAT TYPE)
58. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSEMBLY (MANUAL TRANSMISSION, SEPARATE SEAT TYPE)
59. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSEMBLY (AUTOMATIC TRANSMISSION,SEPARATE SEAT TYPE)
60. INSTALL INSTRUMENT PANEL HOLE COVER (LEVER TYPE PARKING BRAKE)
61. INSTALL INSTRUMENT PANEL UNDER TRAY (PEDAL TYPE PARKING BRAKE)
62. INSTALL FRONT PILLAR GARNISH LH
63. INSTALL FRONT PILLAR GARNISH RH
64. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
65. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
66. INSTALL COWL SIDE TRIM BOARD LH
67. INSTALL COWL SIDE TRIM BOARD RH
68. INSTALL FRONT DOOR SCUFF PLATE LH
69. INSTALL FRONT DOOR SCUFF PLATE RH
70. INSTALL FRONT FLOOR FOOTREST
71. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 3.9 N.m (40 kgf.cm, 35 in.lbf)

72. INSPECT SRS WARNING LIGHT
