Radio, Stereo, and Compact Disc

DIAGNOSTIC TROUBLE CODE CHART

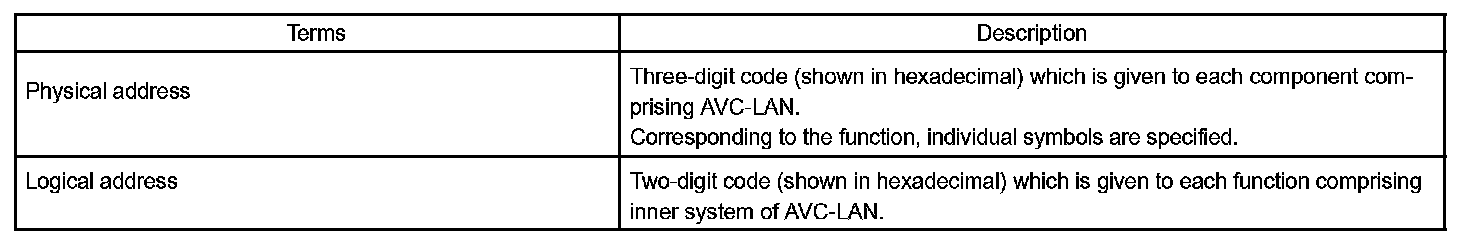

HINT: Titles for each unit are stated in the following order: physical address (part name).

1. 190 (RADIO RECEIVER ASSEMBLY)

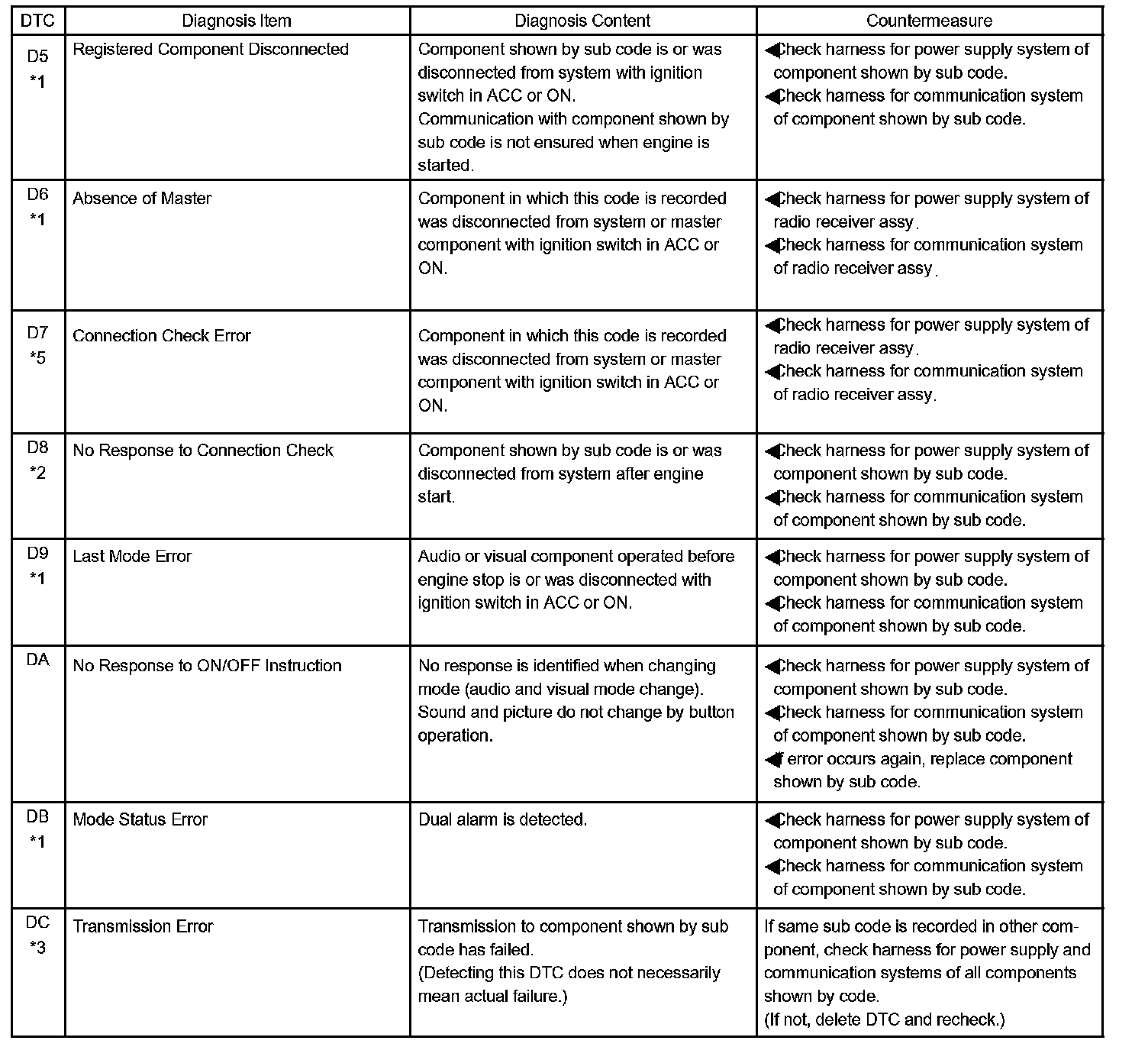

D51 - DC3:

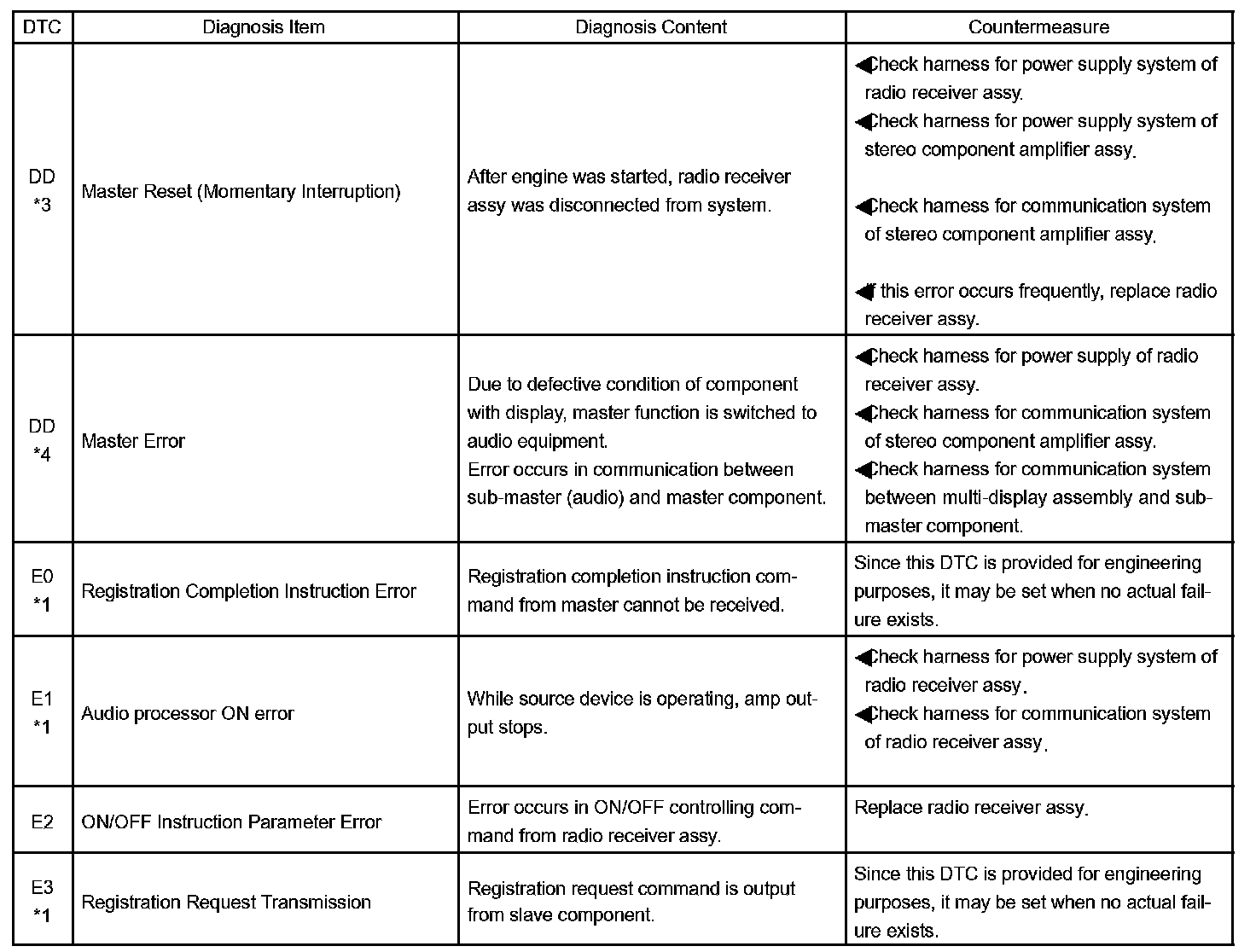

DD*4 - 22:

a. Logical address: 01 (Communication control)

HINT:
- *1: This DTC may be recorded depending on the battery condition or engine start voltage even if no failure is detected.
- *2: If the power connector is disconnected after the engine starts, this DTC is recorded after 180 seconds.
- *3: This DTC may be stored if the ignition key is turned to the START position again when the engine is already running.
- *4: This DTC may be stored if the ignition key is held in the START position for one minute or more before returning to the ON position.
- *5: The DTC is stored 210 seconds after the master component power supply connector is disconnected with the ignition switch in ACC or IG.

42 - 46:

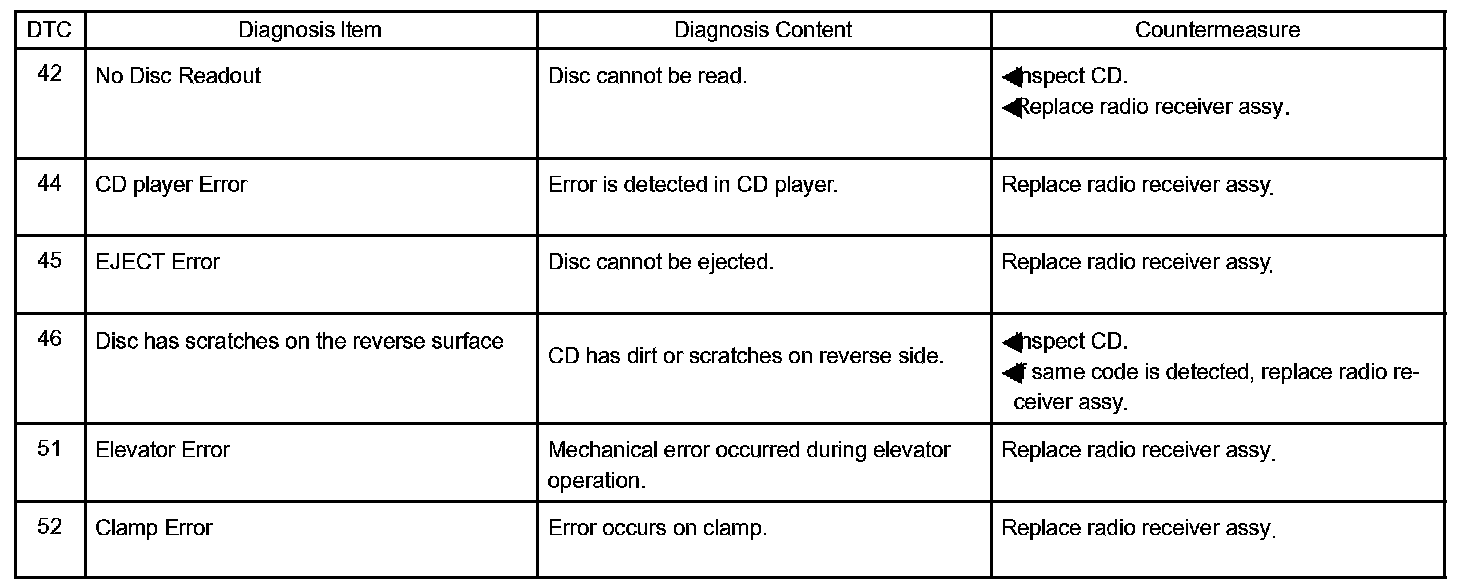

b. Logical address: 62 (CD player)

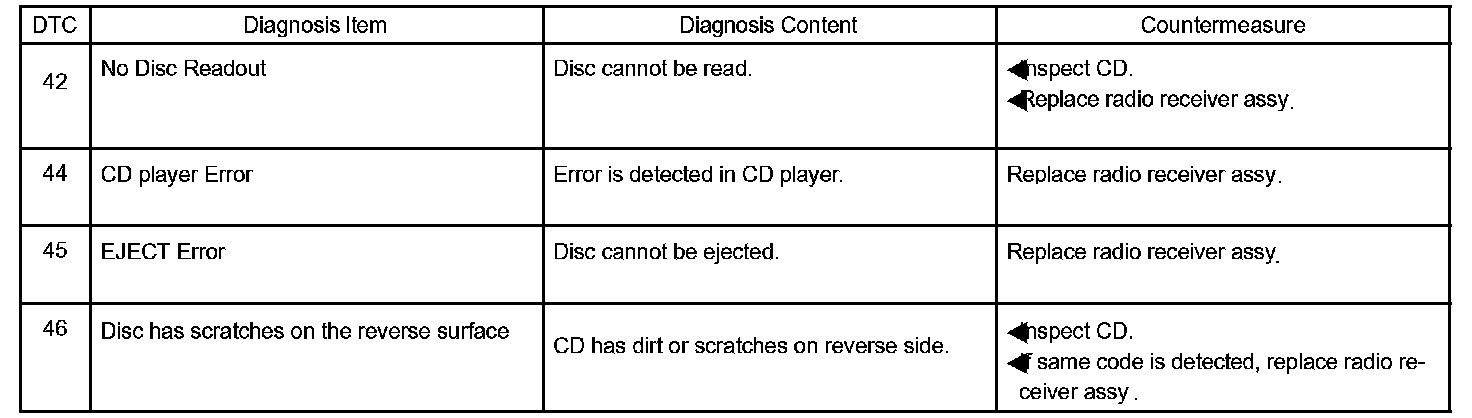

42 - 52:

c. Logical address: 63 (In-dash CD changer)

2. 440 (STEREO COMPONENT AMPLIFIER ASSEMBLY)

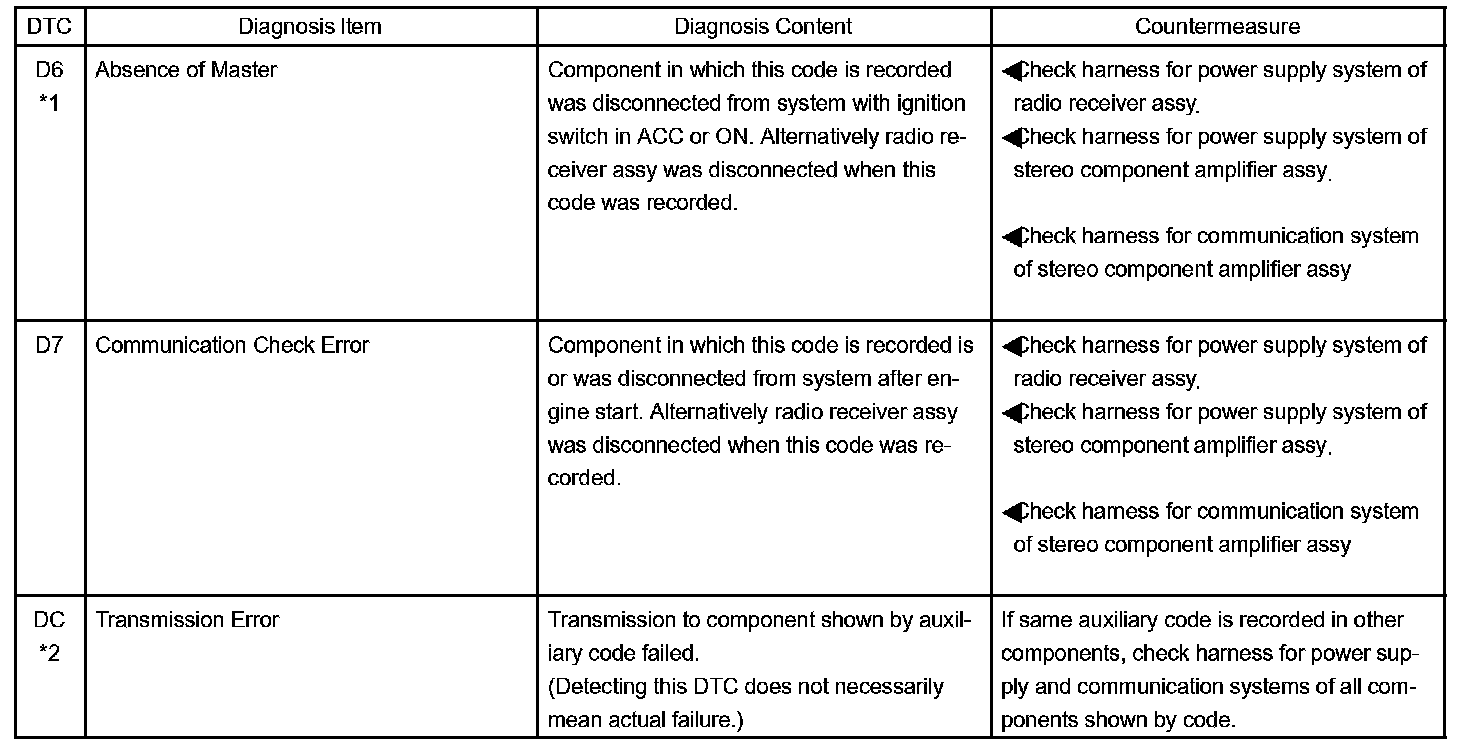

D61 - DC2:

DD3 - E31:

Logical address: 01 (Communication control)

HINT:
- *1: This DTC may be recorded depending on the battery condition or engine start voltage even if no failure is detected.
- *2: This DTC may be stored if the ignition key is turned to the START position again when the engine is already running.
- *3: This DTC may be stored if the ignition key is held in the START position for one minute or more before returning to the ON position.
- *4: If the device is reported as not existing during verification, check the power source circuit and AVC-LAN circuit for the device.
