Engine Control System - SFI System

DIAGNOSTIC TROUBLE CODE CHART

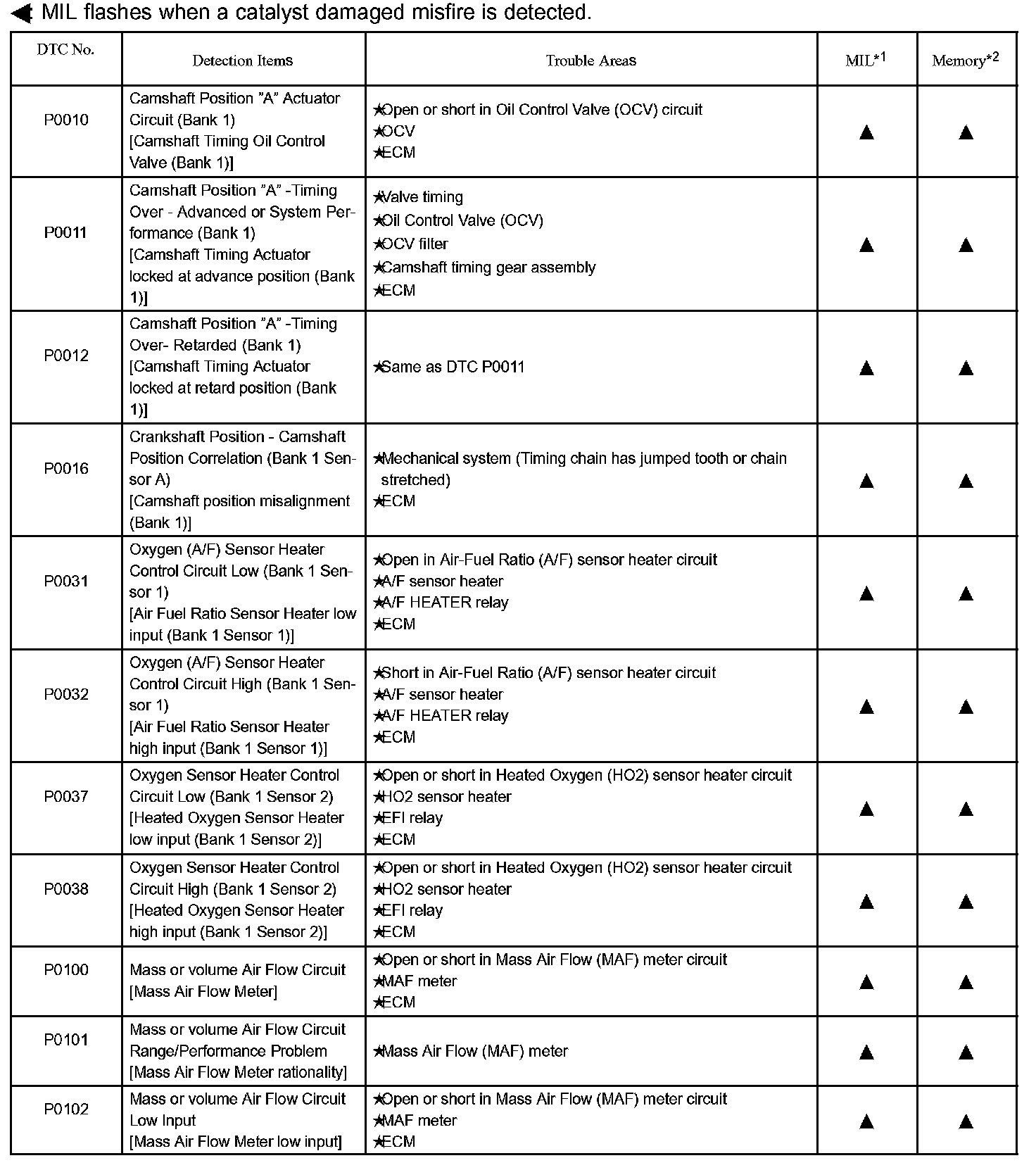

P0010 - P0102:

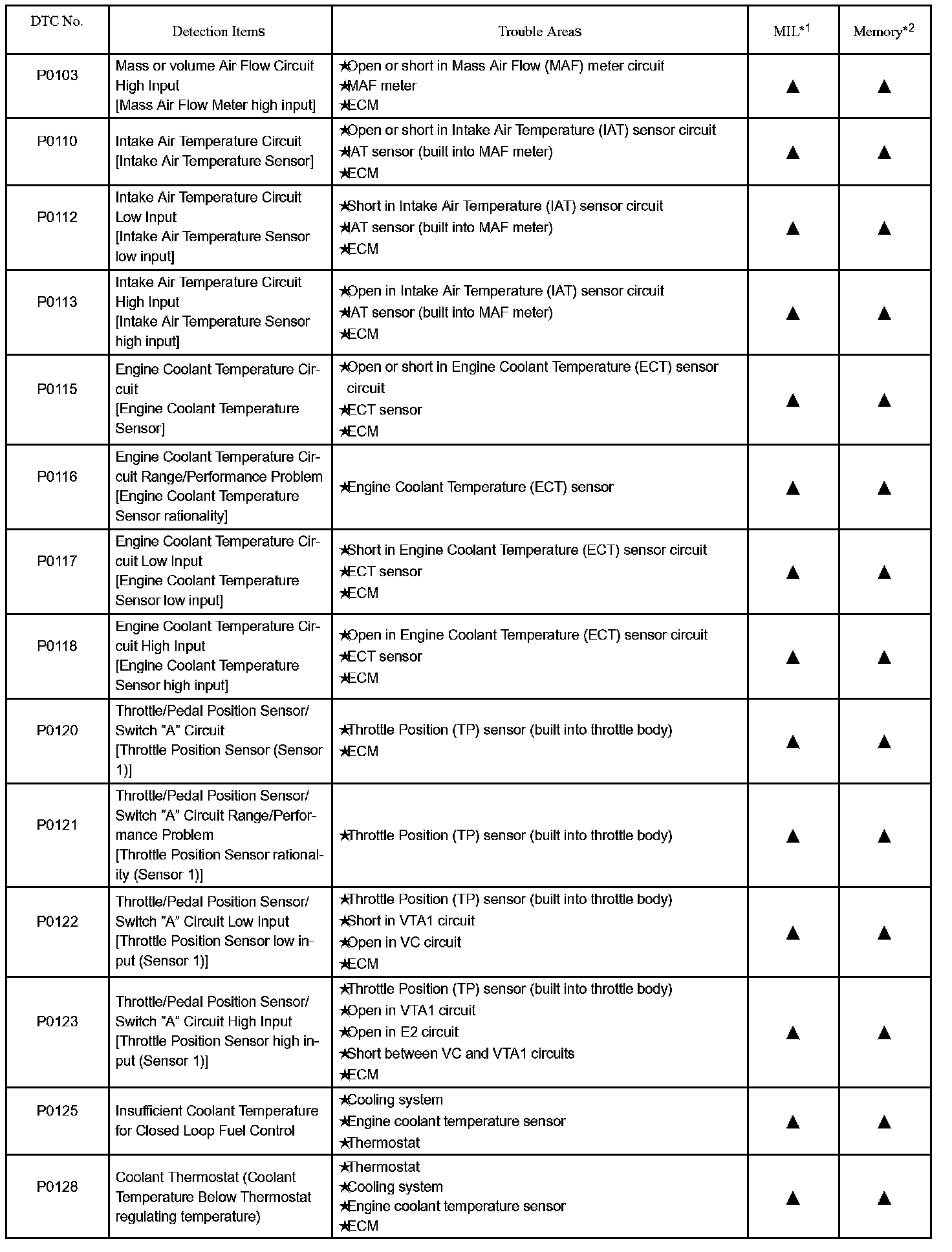

P0103 - P0128:

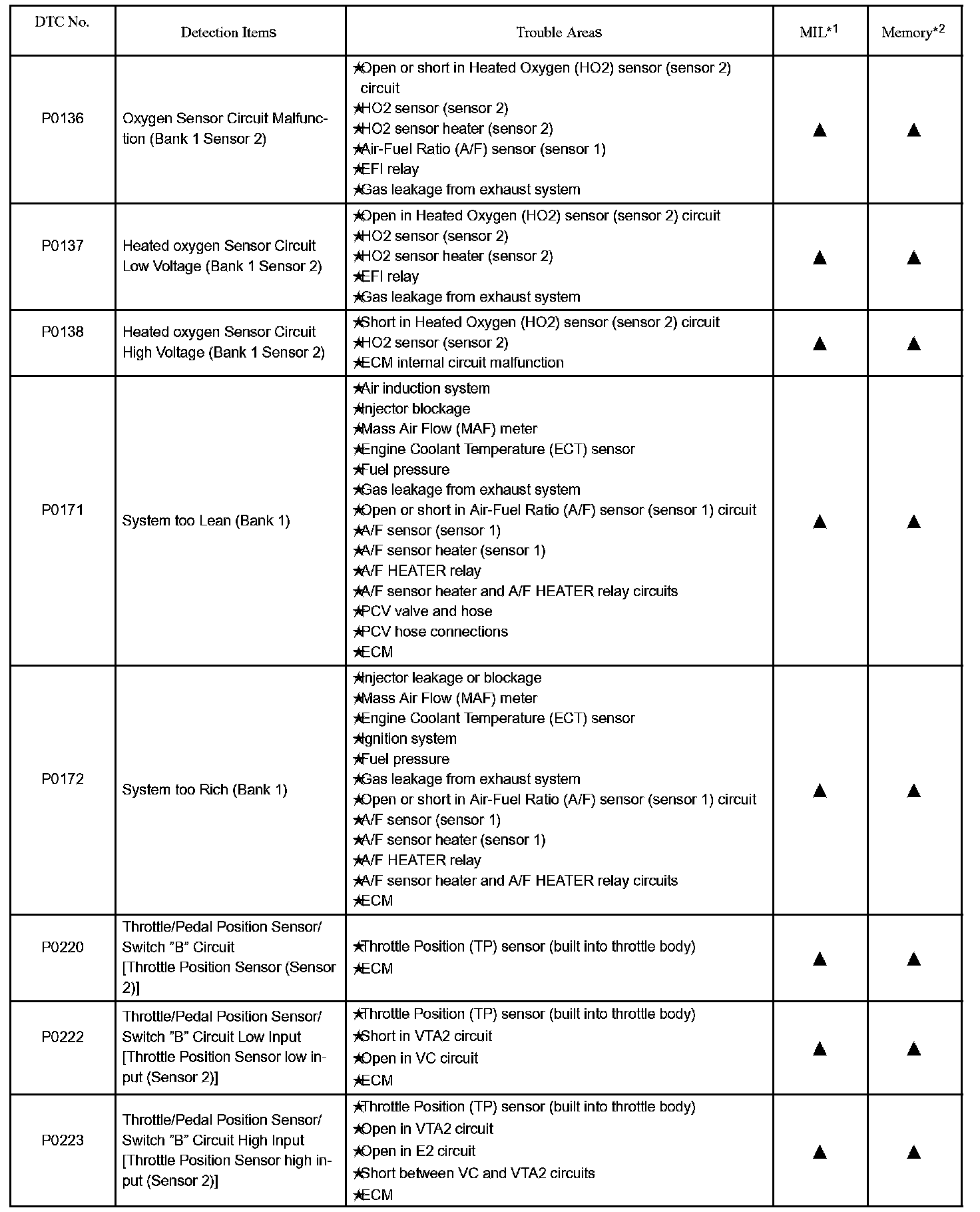

P0136 - P0223:

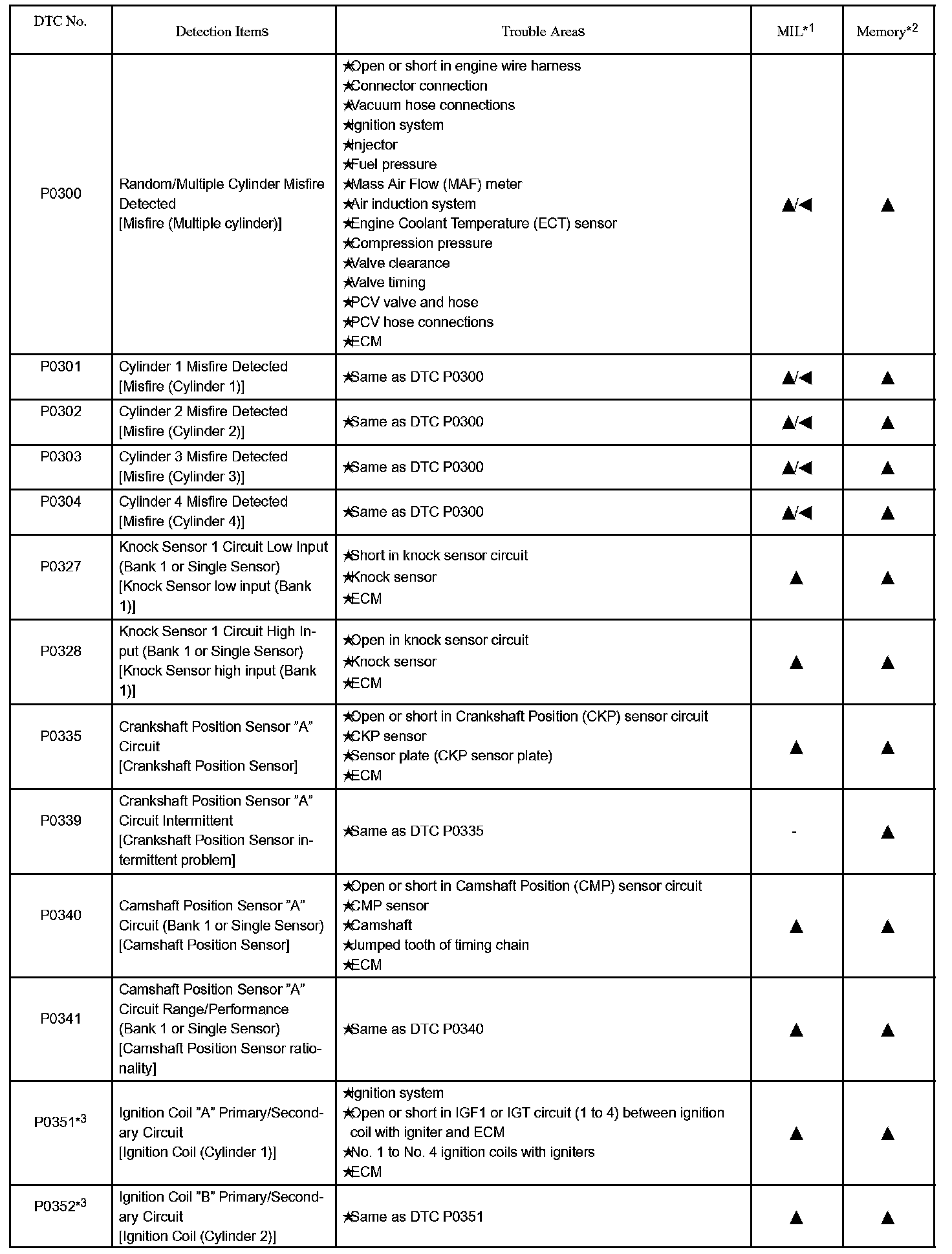

P0300 - P0352:

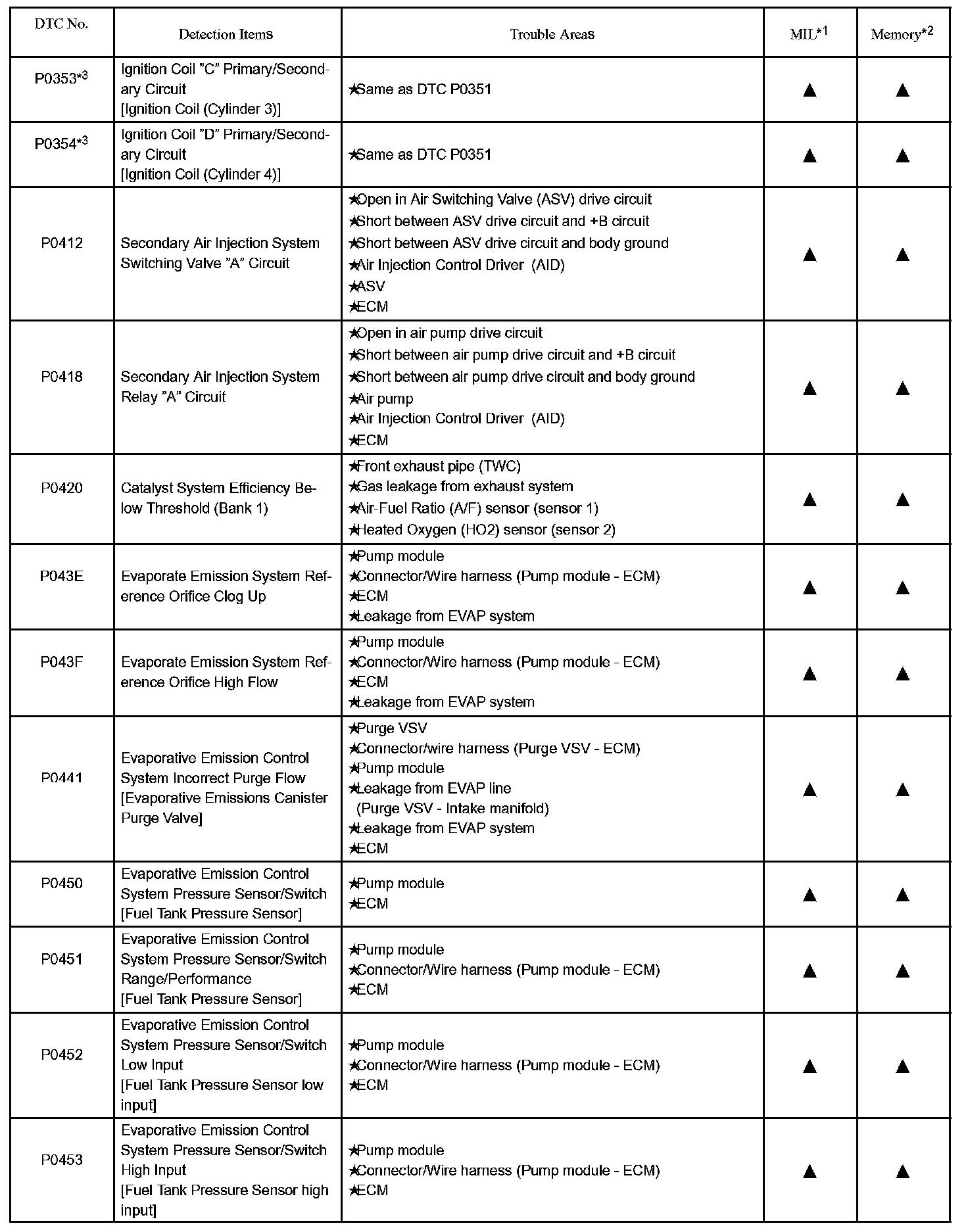

P0353 - P0453:

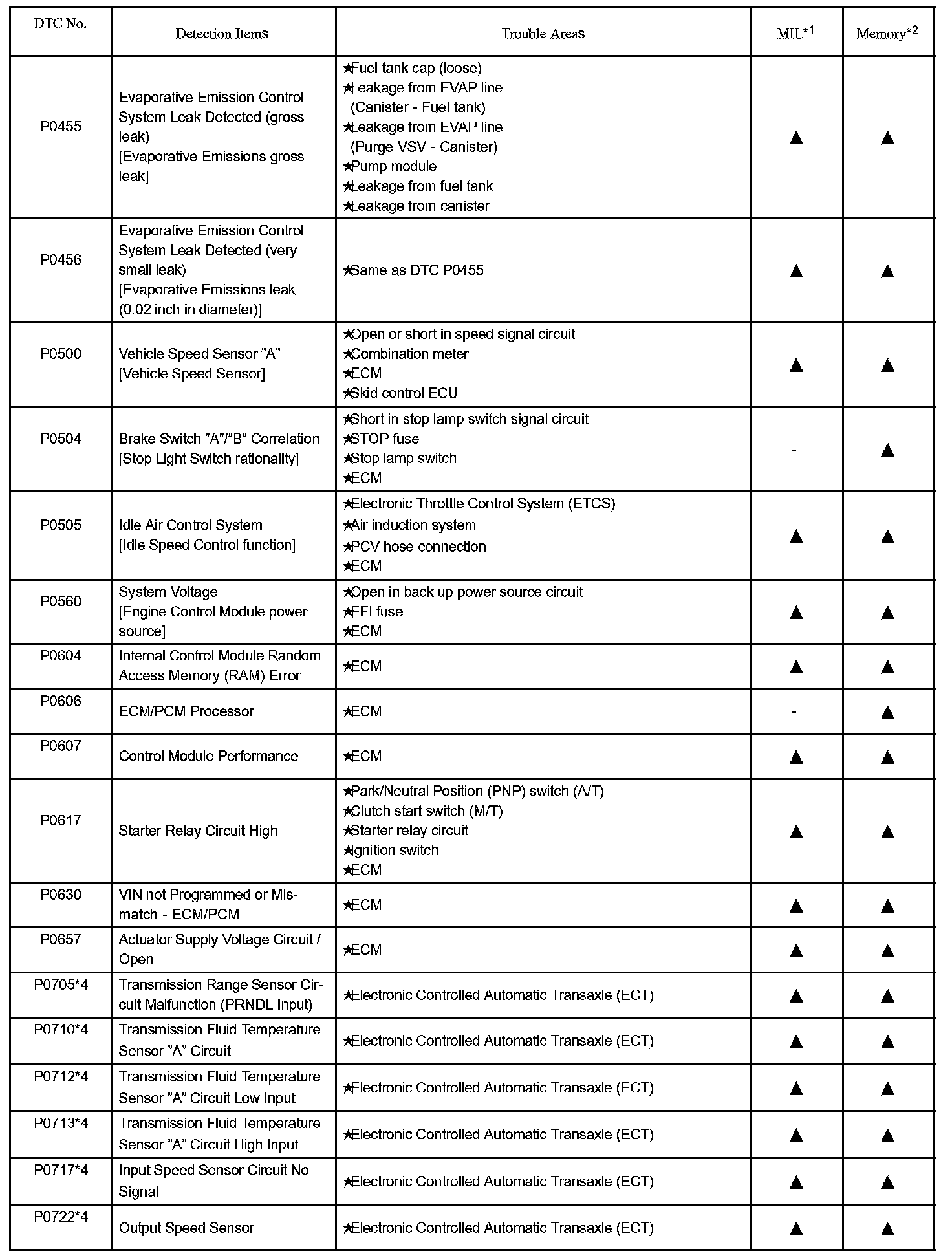

P0455 - P0722:

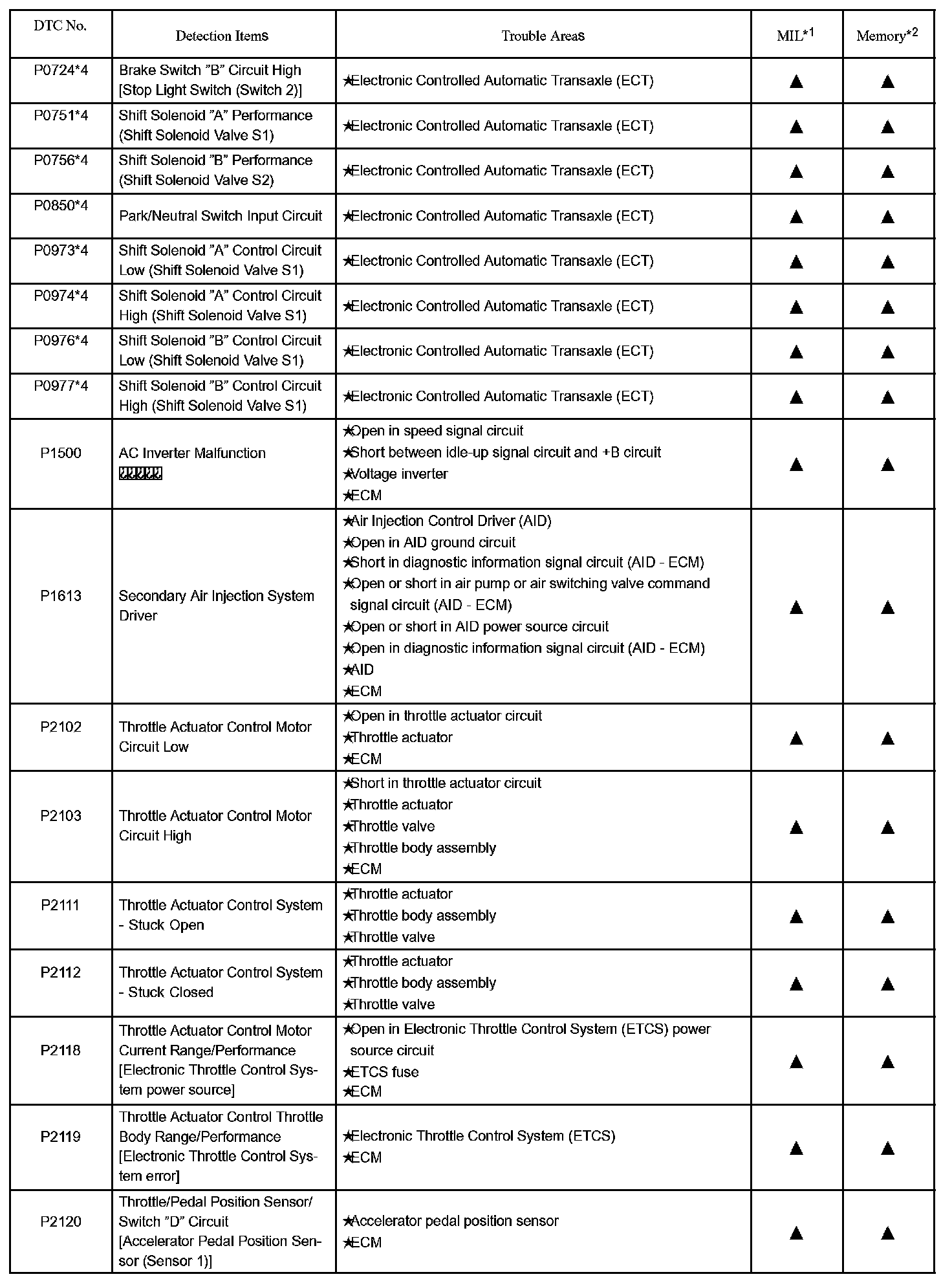

P0724 - P2120:

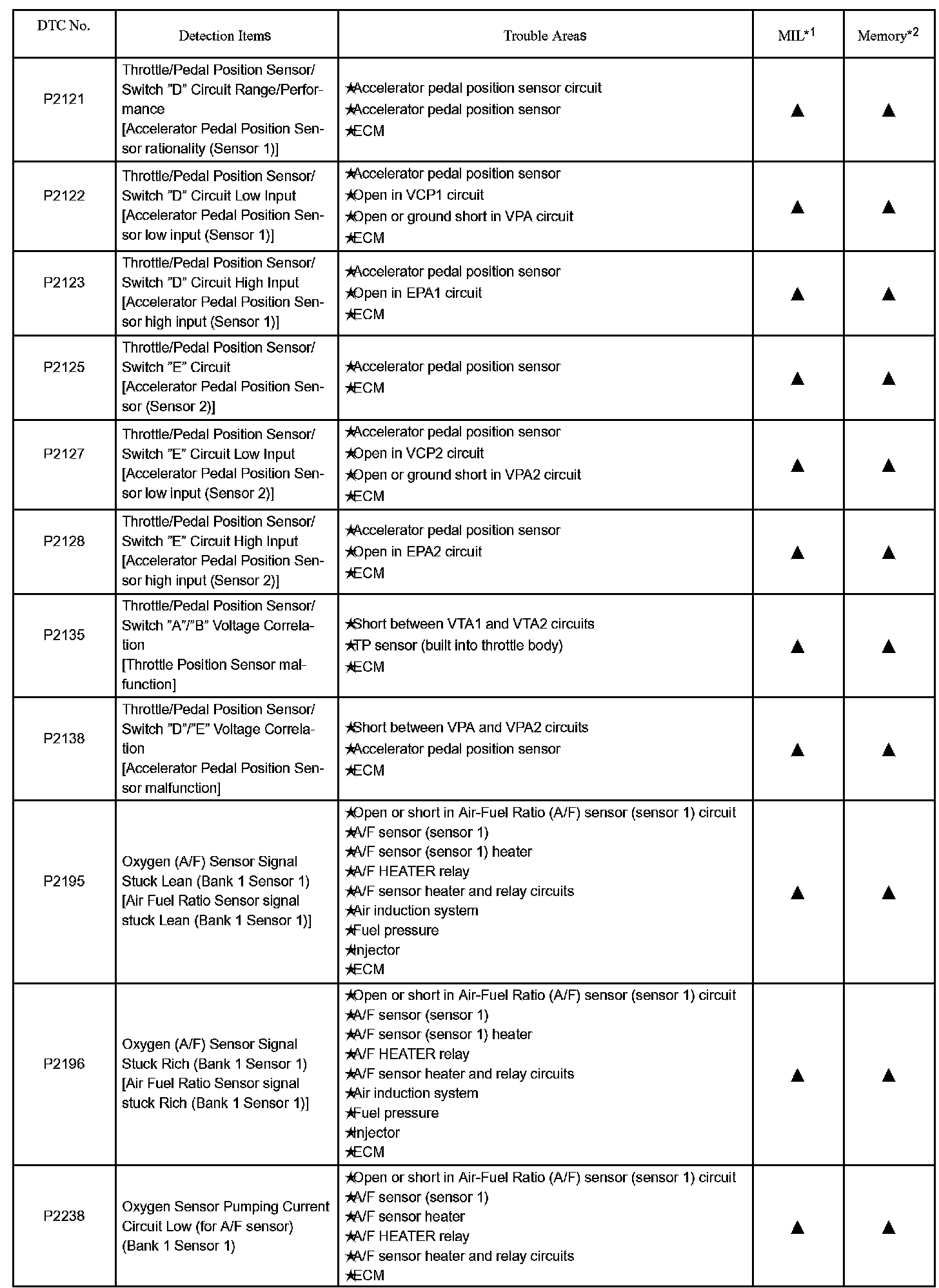

P2121 - P2238:

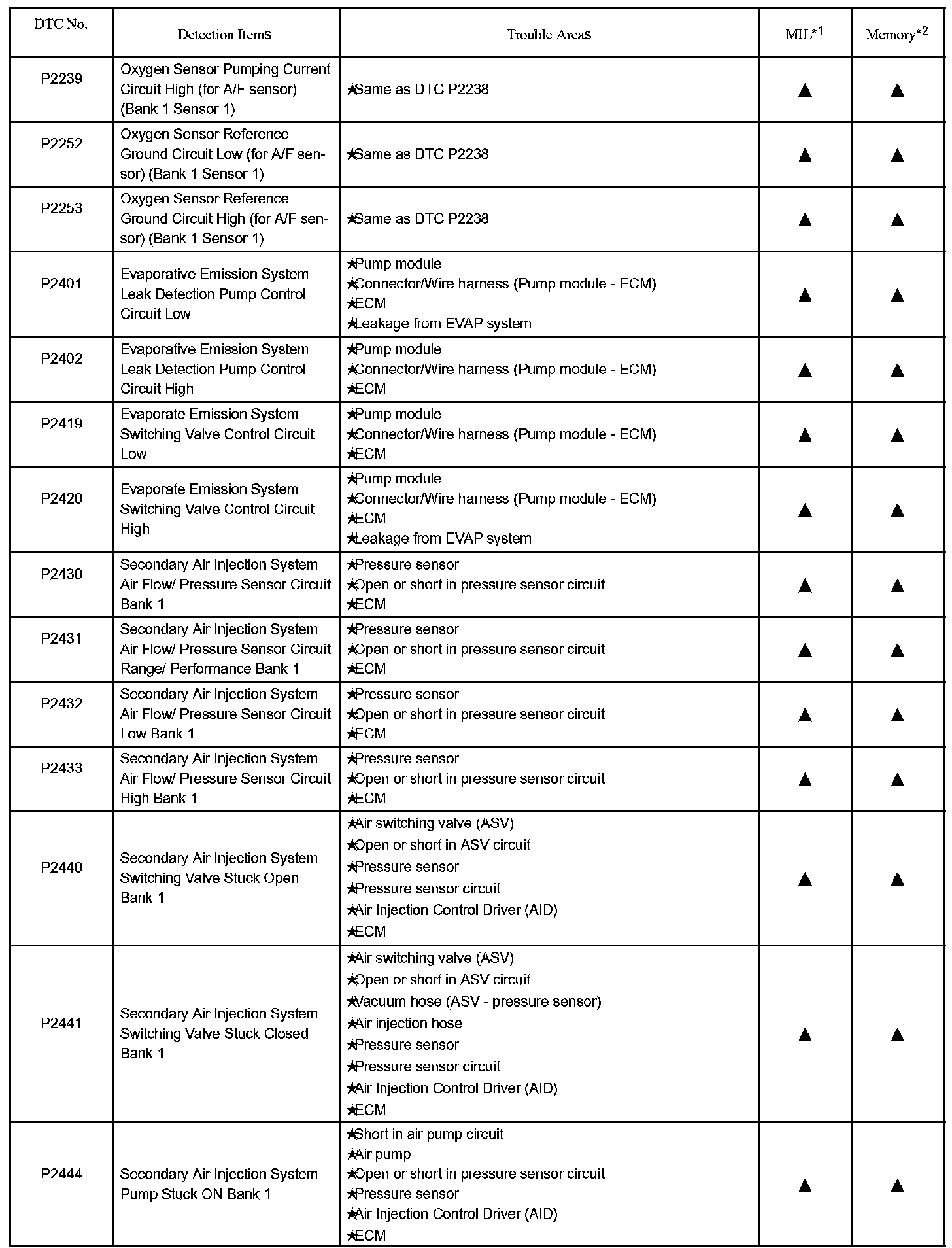

P2239 - P2444:

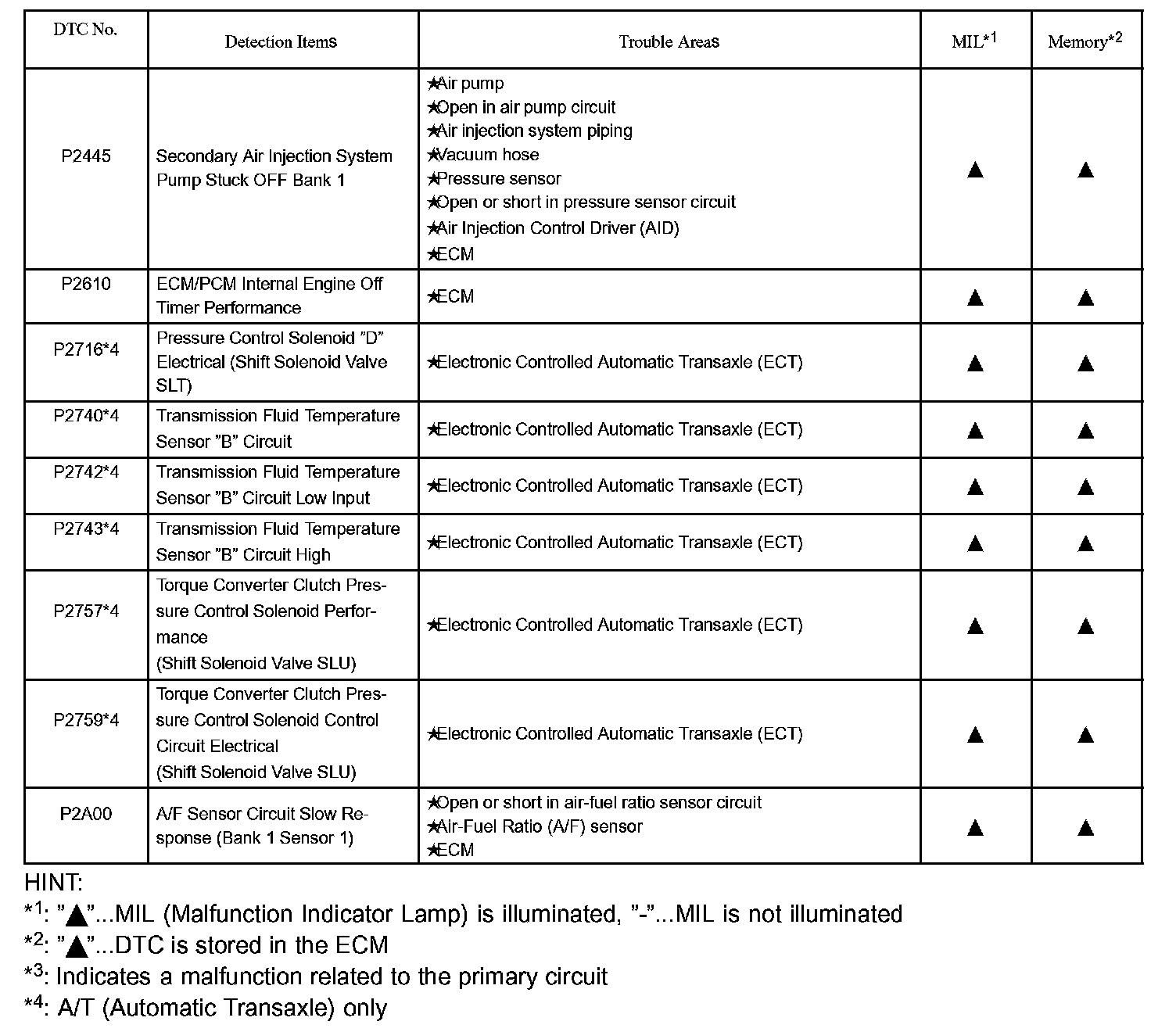

P2445 - P2A00:

HINT: The parameters listed in the chart are for reference only. Factors such as instrument type may cause readings to differ slightly from stated values.

If any DTCs are displayed during a check mode DTC check, check the circuit for the DTCs listed in the table. For details of each DTC, refer to the respective "DTC No." in the DTC chart.
