Compressor Clutch Relay: Testing and Inspection

INSPECT MAGNET-CLUTCH RELAY

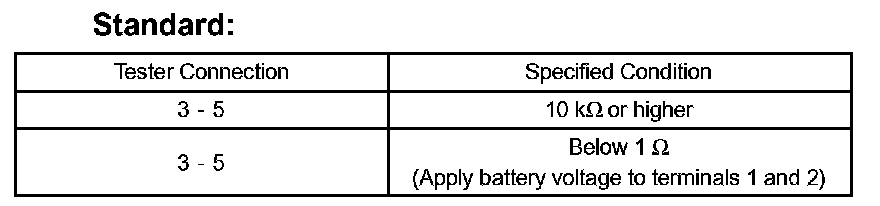

a. Check the resistance.
1. Using an ohmmeter, measure the resistance between the terminals.
If the result is not as specified, replace the relay.
