Valve Body: Service and Repair
TRANSMISSION VALVE BODY ASSY (A340E)REPLACEMENT
CAUTION: When working with FIPG material, you must observe the following guidelines.
^ Using a razor blade and gasket scraper, remove all the old FIPG material from the gasket surfaces.
^ Thoroughly clean all components to remove all loose material.
^ Clean both sealing surfaces with a non-residue solvent.
^ Apply FIPG in an approximately 1 mm (0.04 inch) wide bead along the sealing surface.
^ Parts must be assembled within 10 minutes of application. Otherwise, the FIPG material must be removed and reapplied.
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. DRAIN AUTOMATIC TRANSMISSION FLUID
a. Remove the drain plug, gasket and drain ATF.
b. Install a new gasket and drain plug.
Torque: 20 Nm (204 kgf-cm, 15 ft. lbs.)
3. REMOVE TRANSMISSION OIL FILLER TUBE SUB-ASSY
4. REMOVE AUTOMATIC TRANSMISSION OIL PAN SUB-ASSY
NOTICE: Some fluid will remain in the oil pan.

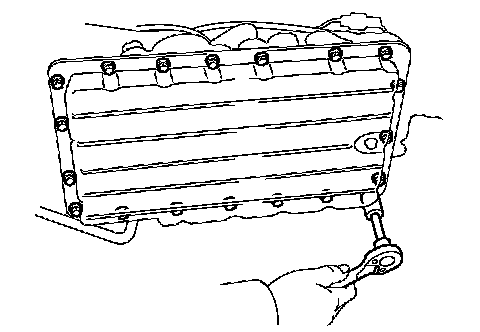

a. Remove the 19 bolts and oil pan sub-assembly.

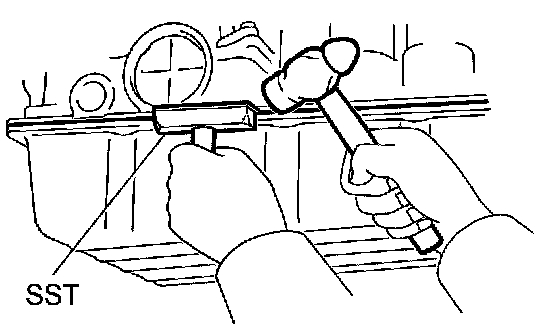

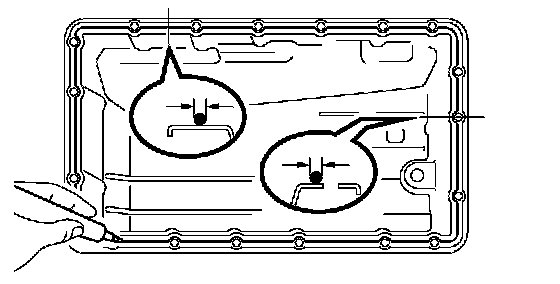

b. Insert the blade of SST between the transmission case and oil pan, cut off applied sealer and remove the oil pan.
SST 09032-00100
NOTICE: When removing the oil pan, be careful not to damage the oil pan flange.
c. Examine the particles in the pan.

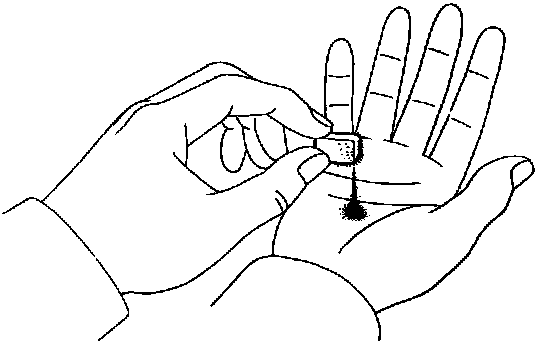

(1) Remove the magnets and use them to collect steel particles. Carefully inspect the foreign matter and particles in the pan and on the magnets to anticipate the type of wear you will find in the transmission.
Steel (magnetic) ... bearing, gear and clutch plate wear
Brass (non-magnetic) ... bushing wear
5. REMOVE VALVE BODY OIL STRAINER ASSY

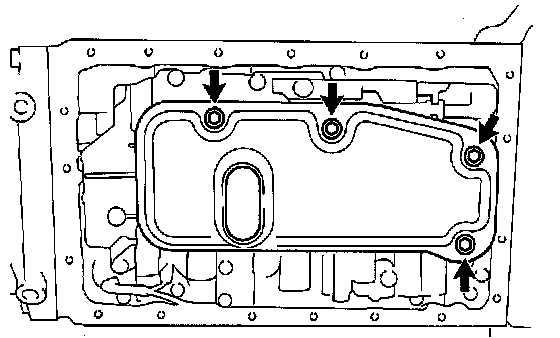

a. Remove the 4 bolts and oil strainer.
NOTICE: Be careful as some fluid will come out of the oil strainer.

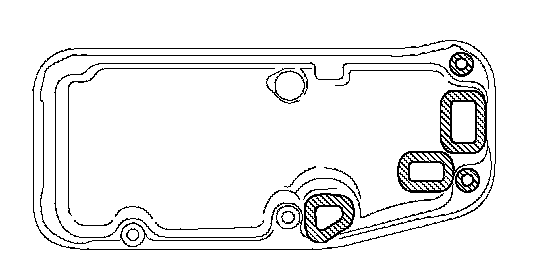

b. Remove the 5 gaskets from the oil strainer.
6. REMOVE TRANSMISSION WIRE

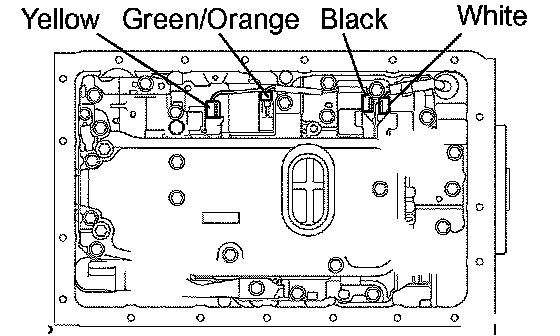

a. Disconnect the 4 connectors from each shift solenoid valve.

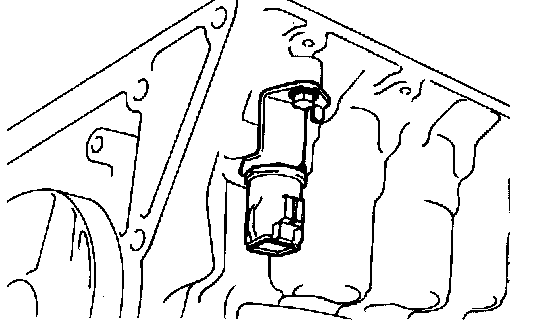

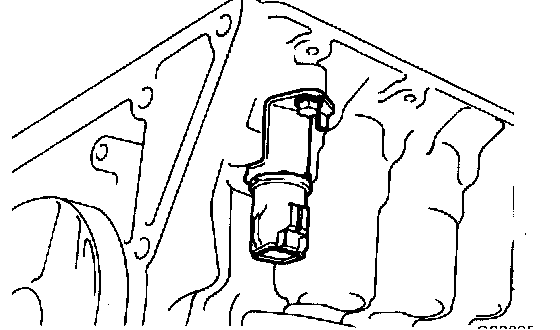

b. Remove the bolt and the stopper plate from the case.
c. Pull the solenoid wiring out of the transmission case.
d. Remove the O-rings from the solenoid wiring.
7. REMOVE TRANSMISSION VALVE BODY ASSY

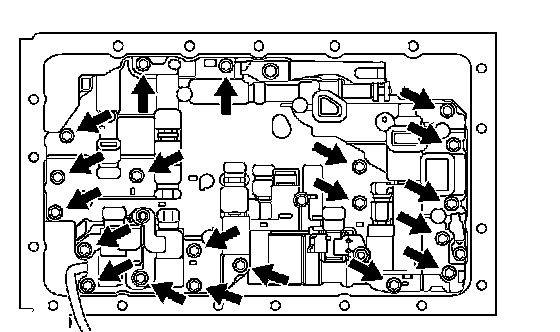

a. Remove the 20 bolts and valve body assy.

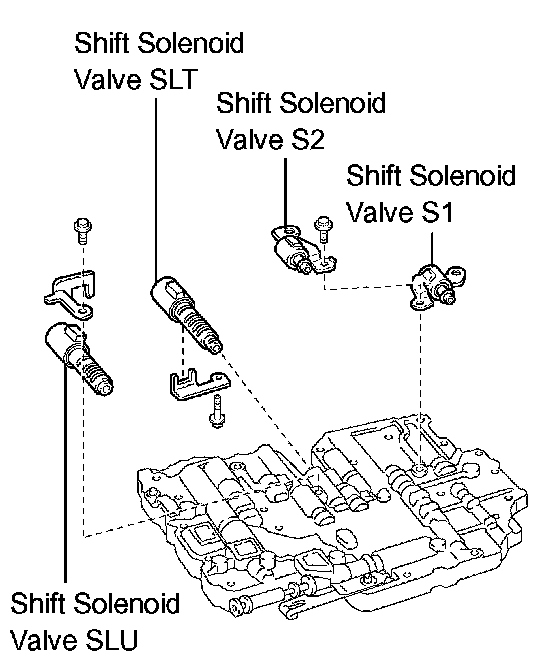

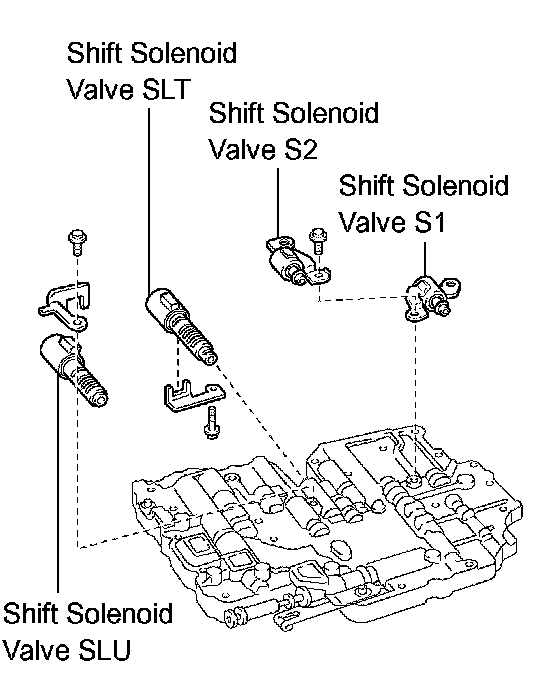

b. Remove the bolt and shift solenoid valves S1 and S2.
c. Remove the bolt and shift solenoid valve SLU.
d. Remove the bolt and shift solenoid valve SLT.
8. INSTALL TRANSMISSION VALVE BODY ASSY
a. Install the shift solenoid valve SLU with the bolt.
Torque: 6.4 Nm (65 kgf-cm, 56 inch lbs.)
b. Install the shift solenoid valves S1 and S2 with the bolt.
Torque: 6.4 Nm (65 kgf-cm, 56 inch lbs.)
c. Install the shift solenoid valve SLT with the bolt.
Torque: 6.4 Nm (65 kgf-cm, 56 inch lbs.)

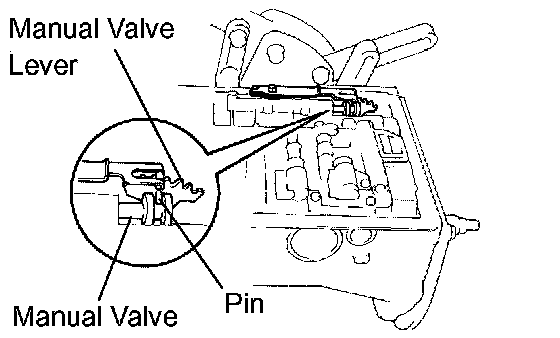

d. Align the groove of the manual valve with the pin of the lever.

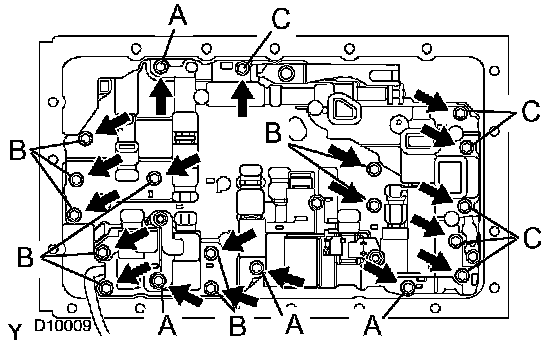

e. Install the 20 bolts.
Torque: 11 Nm (110 kgf-cm, 8 ft. lbs.)
Bolt length:
Bolt A: 23 mm (0.91 inch)
Bolt B: 28 mm (1.10 inch)
Bolt C: 36 mm (1.42 inch)
9. INSTALL TRANSMISSION WIRE
a. Coat a new O-ring with ATF, and install it onto the solenoid wiring.
b. Install the solenoid wiring onto the case, and install the stopper plate.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
c. Connect the connectors to each shift solenoid valve.
10. INSTALL VALVE BODY OIL STRAINER ASSY
a. Install 5 new gaskets.
b. Install the oil strainer with the 4 bolts.
Torque: 10 Nm (100 kgf-cm, 7 ft. lbs.)

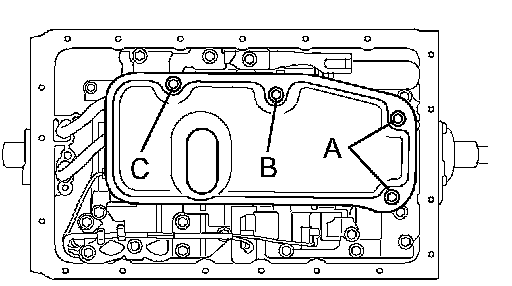

Bolt length:
Bolt A: 14 mm (0.55 inch)
Bolt B: 20 mm (0.79 inch)
Bolt C: 23 mm (0.91 inch)
11. INSTALL AUTOMATIC TRANSMISSION OIL PAN SUB-ASSY
HINT: Remove any packing material and be careful not to drop oil on the contact surfaces of the transmission case and oil pan subassembly.

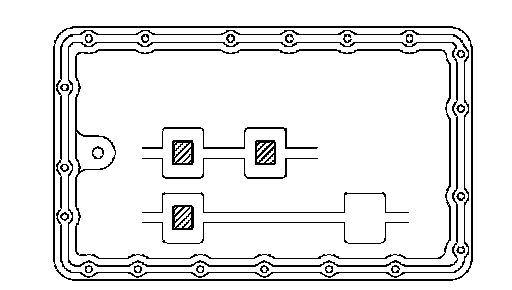

a. Install the 3 magnets onto the oil pan sub-assembly, in the portions indicated in the illustration.
b. Apply FIPG to the oil pan, as shown in the illustration.
FIPG: Part No.08826-00090, THREE BOND 1281 or equivalent
c. Install the oil pan sub-assembly with the 19 bolts.
Torque: 7.4 Nm (75 kgf-cm, 65 inch lbs.)
12. INSTALL TRANSMISSION OIL FILLER TUBE SUB-ASSY
13. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 Nm (40 kgf-cm, 35 inch lbs.)
14. ADD AUTOMATIC TRANSMISSION FLUID
15. INSPECT AUTOMATIC TRANSMISSION FLUID
