Skid Control ECU Communication Stop Mode
Skid Control ECU Communication Stop Mode
SKID CONTROL ECU COMMUNICATION STOP MODE
MODE DESCRIPTION

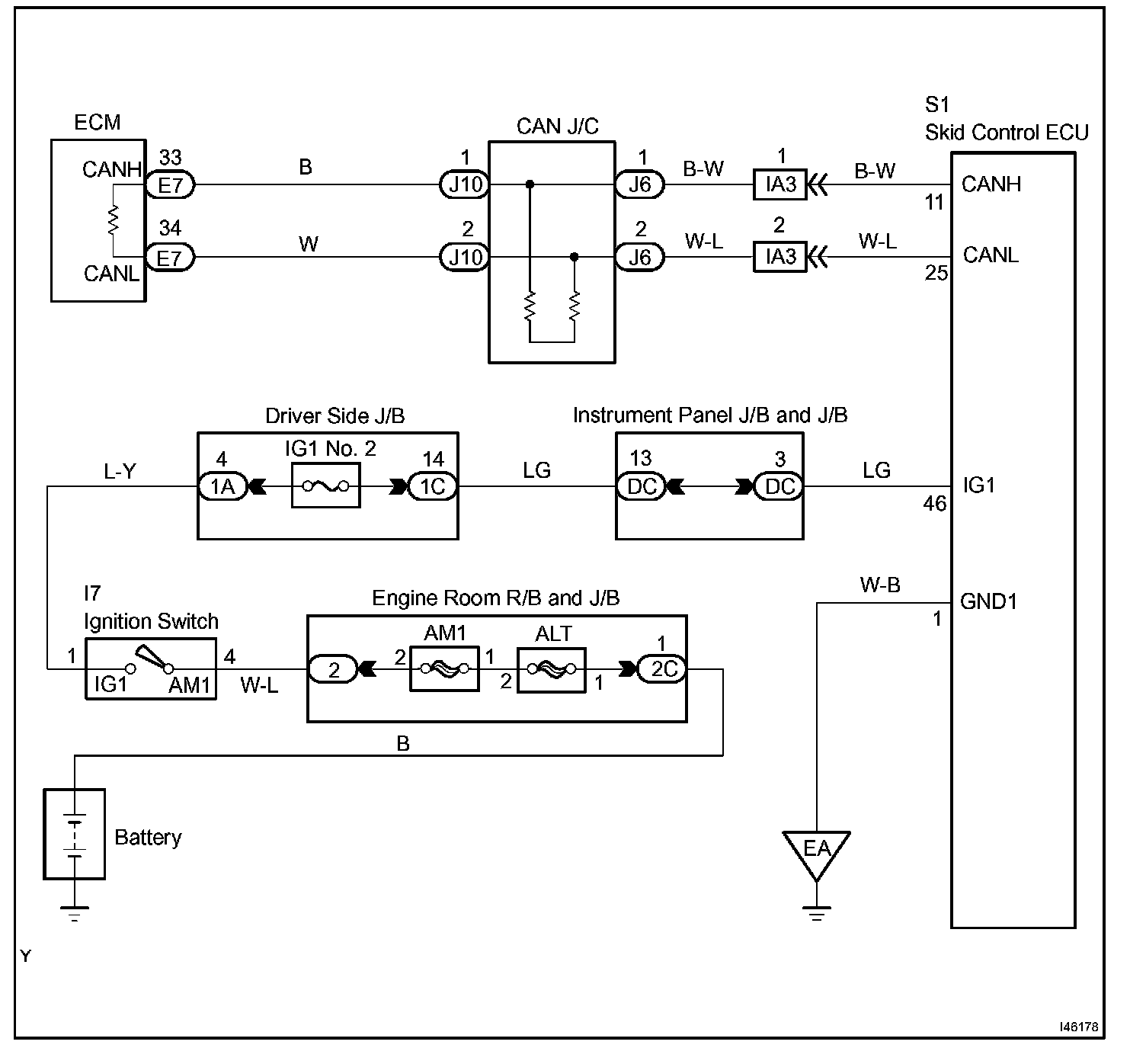

Wiring Diagram:

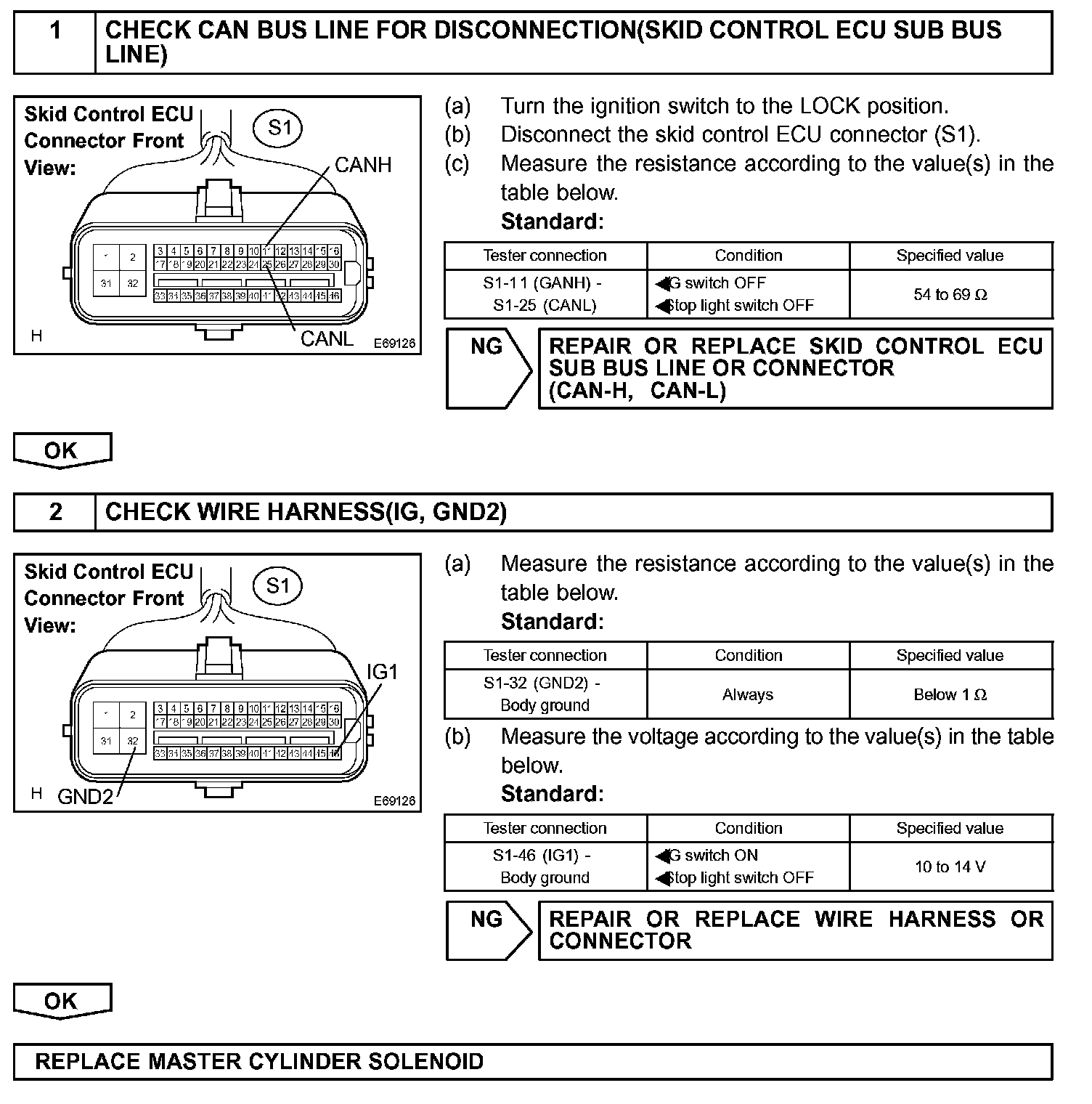

Step 1 - 2:
INSPECTION PROCEDURE
