Drive Belt: Service and Repair

FAN AND GENERATOR V BELT (2TR-FE)

REPLACEMENT





1. REMOVE FAN AND GENERATOR V BELT

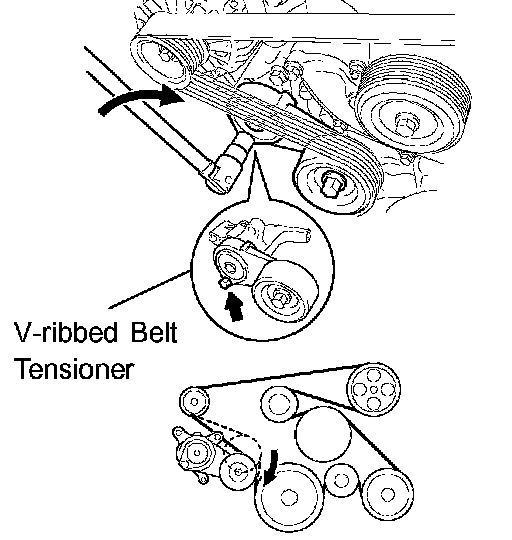

a. Turning the hexagonal bolt on the V-ribbed belt tensioner clockwise, loosen and then remove the V belt.





2. INSTALL FAN AND GENERATOR V BELT
a. Provisionally install the V belt onto each pulley.

NOTICE: Install the V belt onto each pulley and finally install the V belt onto the V-ribbed belt tensioner.

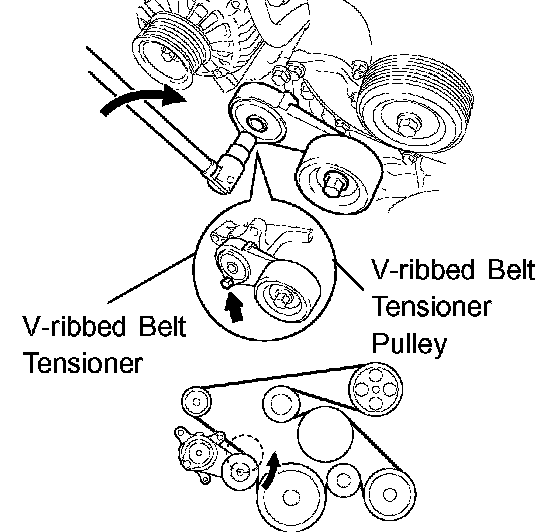

b. Turn the hexagonal bolt on the V-ribbed belt tensioner clockwise and install the V belt onto the V-ribbed belt tensioner pulley.
3. INSPECT FAN AND GENERATOR V BELT
