Home
>>
Toyota Truck
>>
2005
>>
Tacoma 2WD L4-2.7L (2TR-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Headlamp
>>
System Diagram
System Diagram

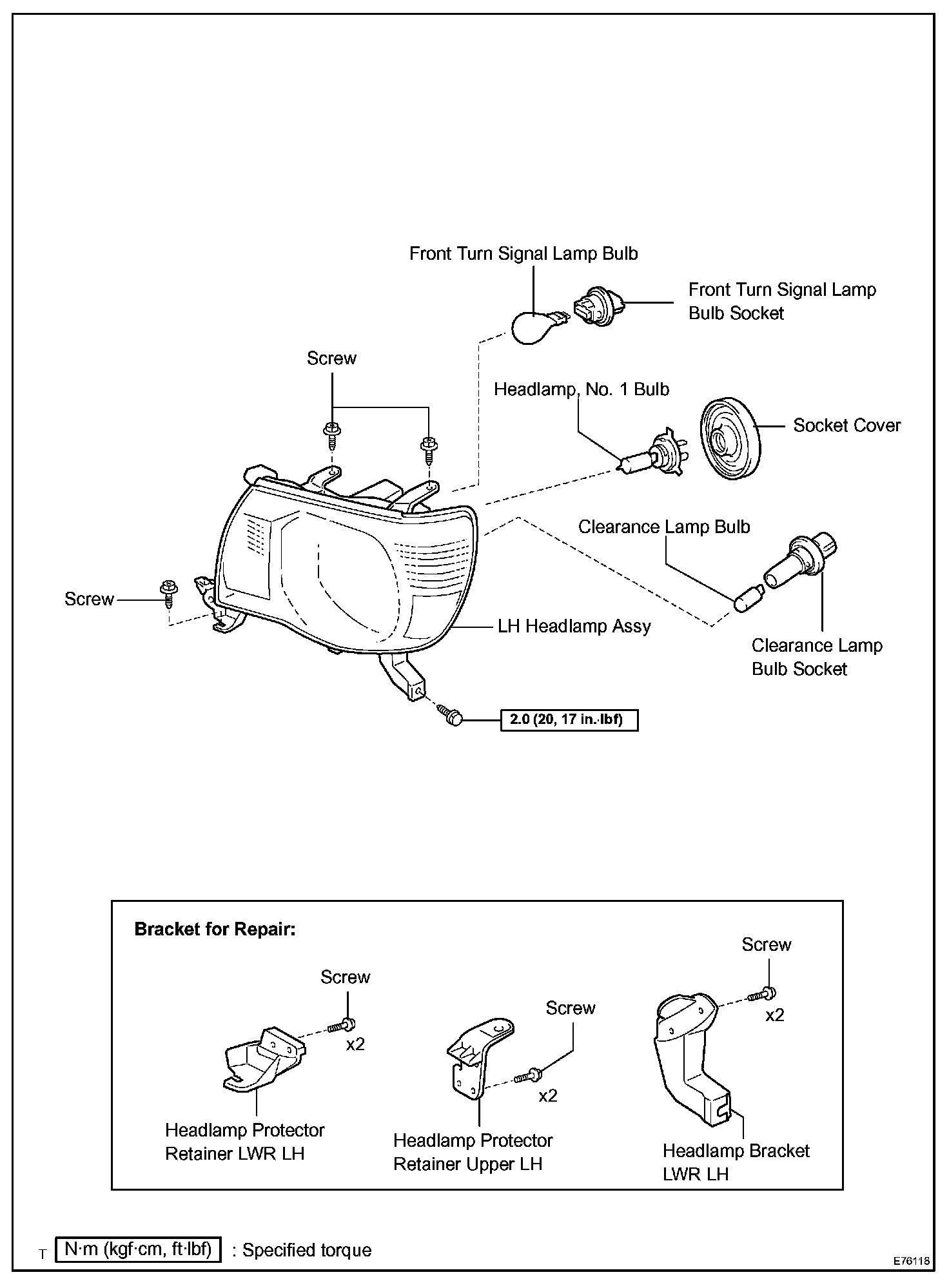

LH Headlamp Assy:
LH Headlamp Assy:
