Tailgate Cover: Service and Repair

TAILGATE PROTECTOR RH

REPLACEMENT

1. REMOVE TAILGATE PROTECTOR RH

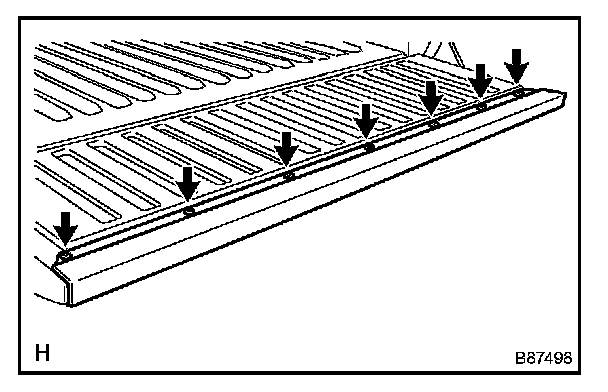

a. Using a Torx(R) socket wrench T30, remove the 7 screws.

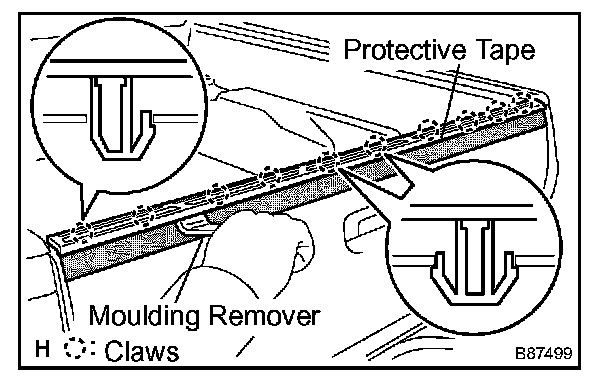

b. Apply protective tape to the outer circumference of the tailgate protector.
c. Using a moulding remover, disengage the 10 claws and remove the tailgate protector.

2. INSTALL TAILGATE PROTECTOR RH

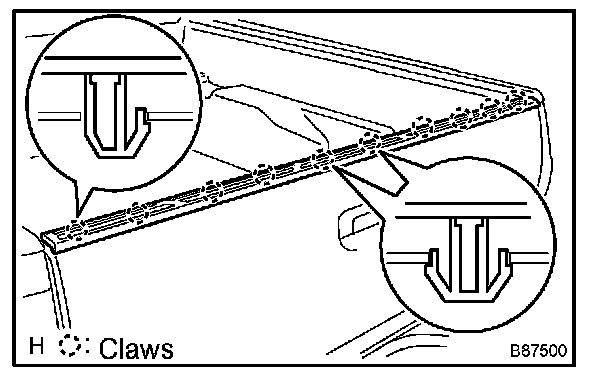

a. Engage the 10 claws and install the tailgate protector.




b. Using a Torx(R) socket wrench T30, tighten the 7 screws.
