Entertainment System - Poor Rear Seat Screen Visibility
ELECTRICALEL007-05
Title:
POOR VISIBILITY OF REAR SEAT
ENTERTAINMENT SCREEN IN
DETENT POSITION
Models:
'04 - '05 Sienna
May 23, 2005
Introduction
Some customers may have difficulty viewing the Rear Seat Entertainment screen when it is placed in the detent position. The detent position has been modified to improve visibility.
NOTE:
The Rear Seat Entertainment screen is NOT designed to stay in place in the rearmost position.
Applicable Vehicles
^ 2004 - 2005 model year Sienna vehicles produced BEFORE the Production Change Effective VINs shown below.

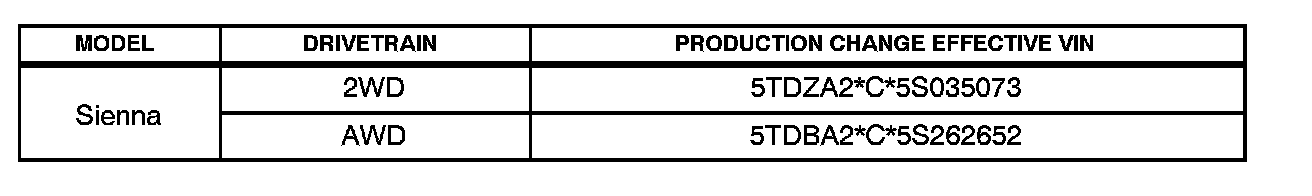

Production Change Information

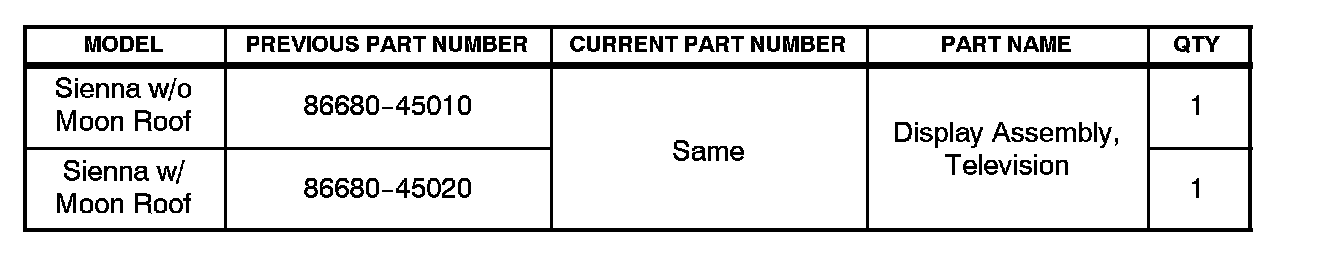

Parts Information
Repair Procedure
Replace the Rear Seat Entertainment display through the Panasonic Exchange Program.
For instructions on replacing the Rear Seat Entertainment display, refer to the Technical Information System (TIS): 2004 or 2005 model year Sienna Repair Manual: Audio & Visual System: Television Display Assy: Replacement

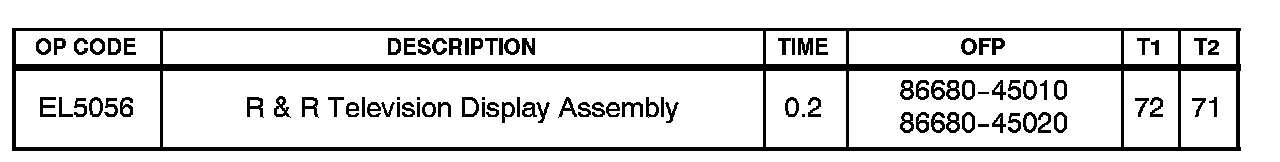

Warranty Information
Applicable Warranty*:
This repair is covered under the Toyota Comprehensive Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.
* Warranty application is limited to correction of a problem based upon a customer's specific complaint.
