Instruments - Compass Calibration Procedure

PRE-DELIVERY SERVICE
PD048-04

Title:
INITIAL CALIBRATION OF COMPASS
DURING PDS

Models:
'05 Sienna

October 28, 2004

Introduction

Some 2005 model year Sienna vehicles are equipped with a compass option. Use the following procedure to complete initial calibration of the compass during the ROAD TEST section of Pre-Delivery Service (PDS).

Applicable Vehicles

^ 2005 model year Sienna vehicles.

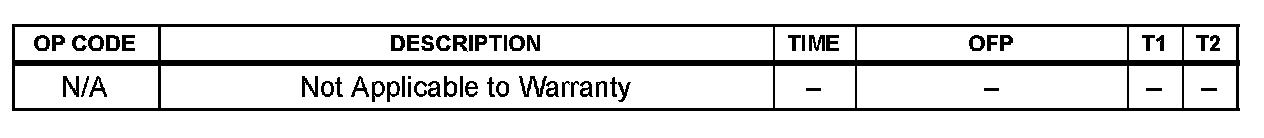

Warranty Information

Compass Calibration Procedure





1. Turn the ignition switch to the "ON" position and check that the direction (N, NE, E, SE, S, SW, W, NW) appears on the compass display.

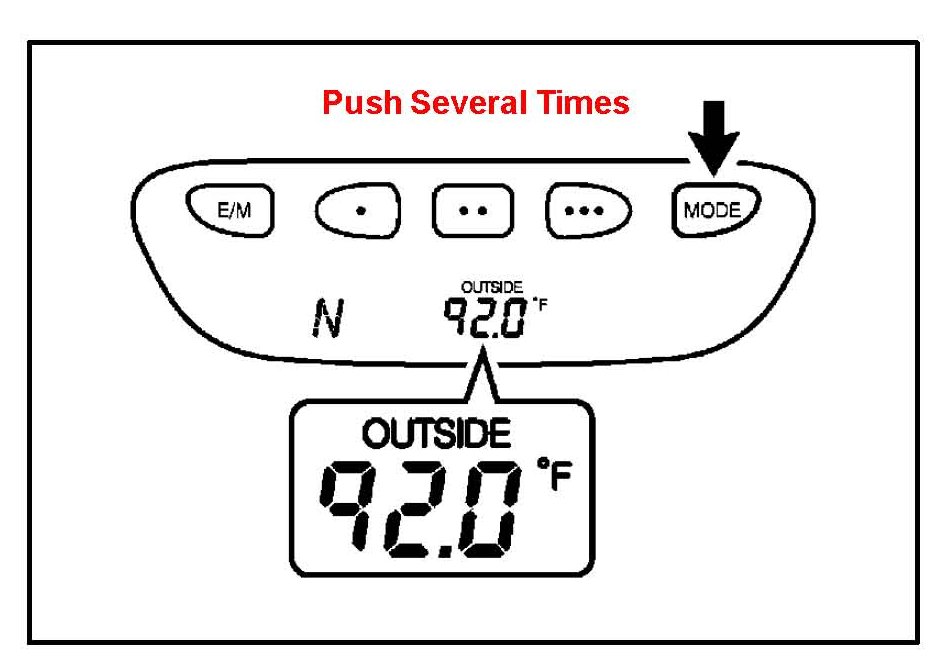

2. Push the "MODE" button several times to display the outside temperature on the multi-information display.

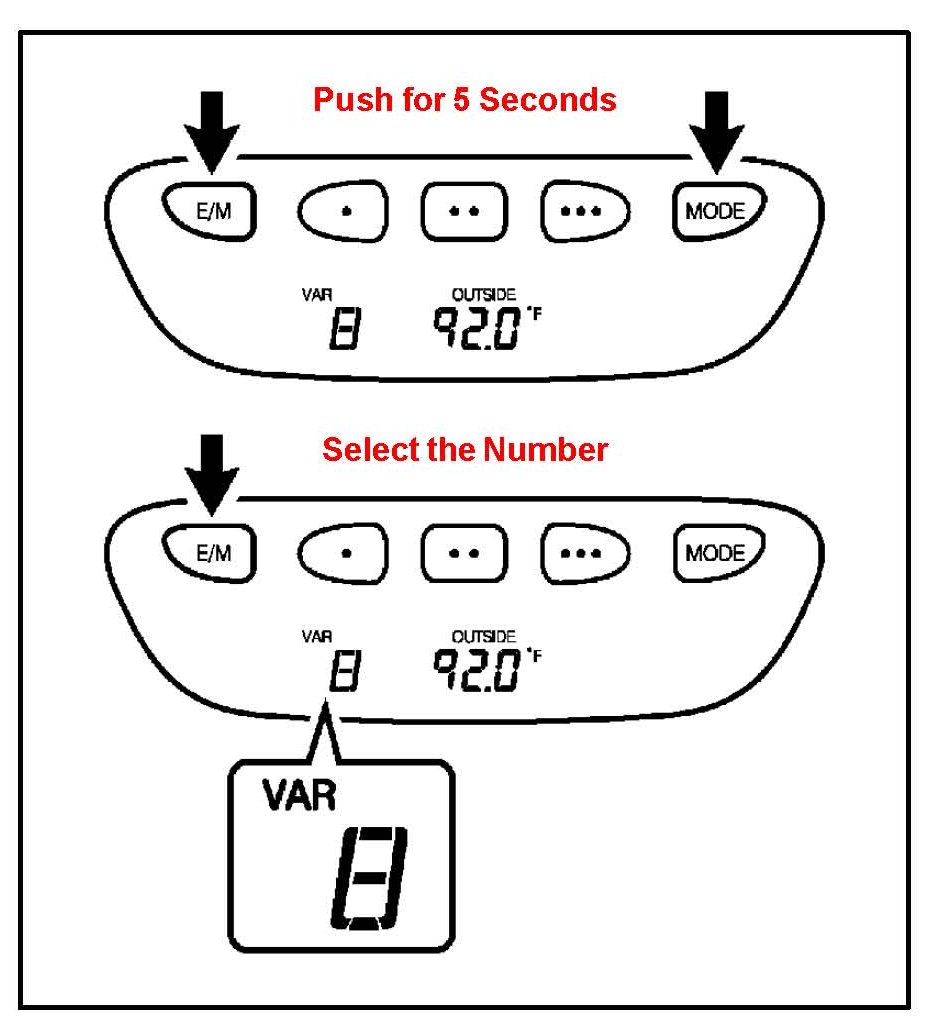

3. Push and hold both the "MODE" and "E/M" buttons simultaneously for 5 seconds until the "VAR" indicator appears on the compass display.

Then push the "E/M" button to select the number of the zone where the vehicle is located.

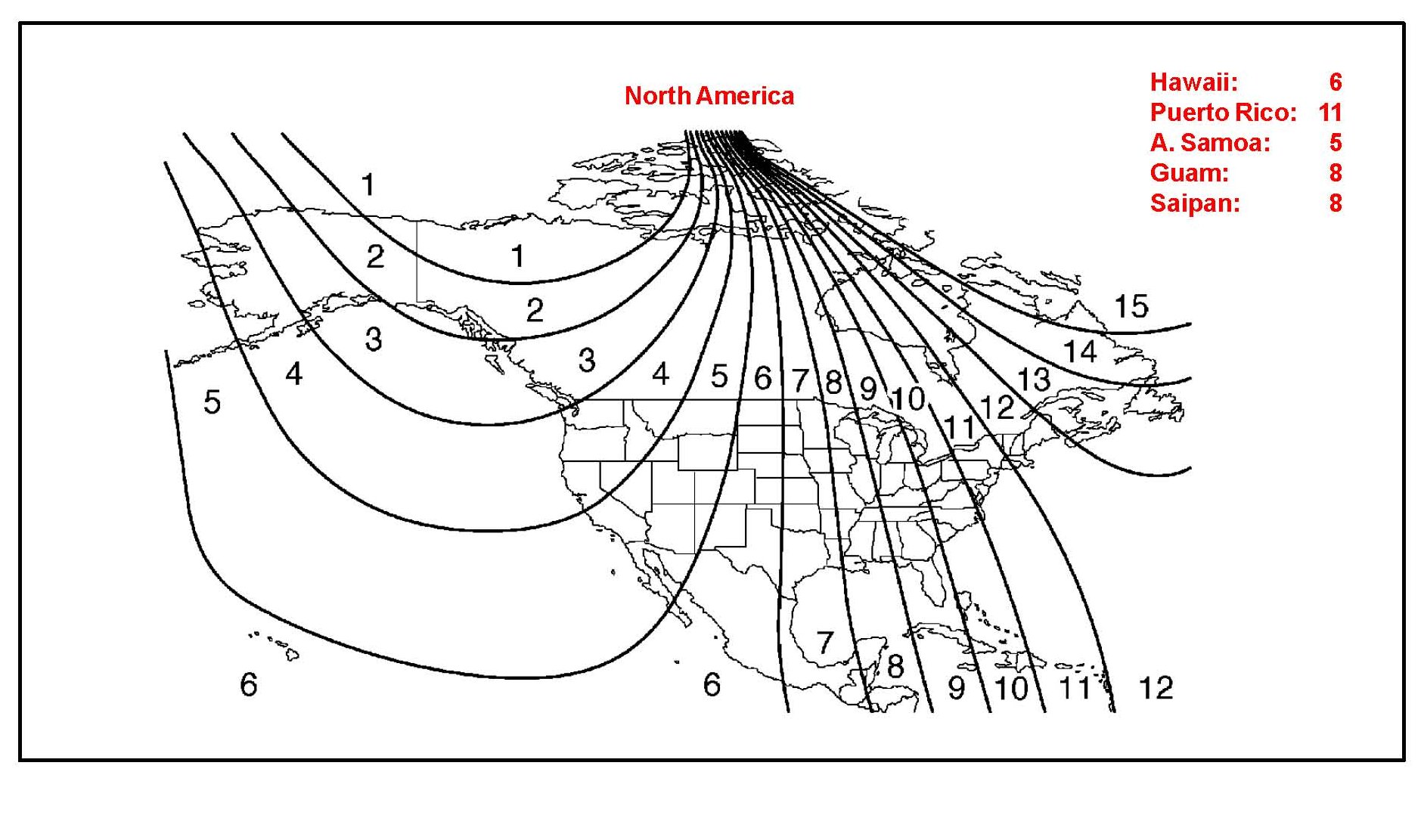

See the map below for zone reference.

4. Leave system alone for 10 seconds. The display will return to compass and outside temperature mode. Verify that the zone reference is saved in memory.

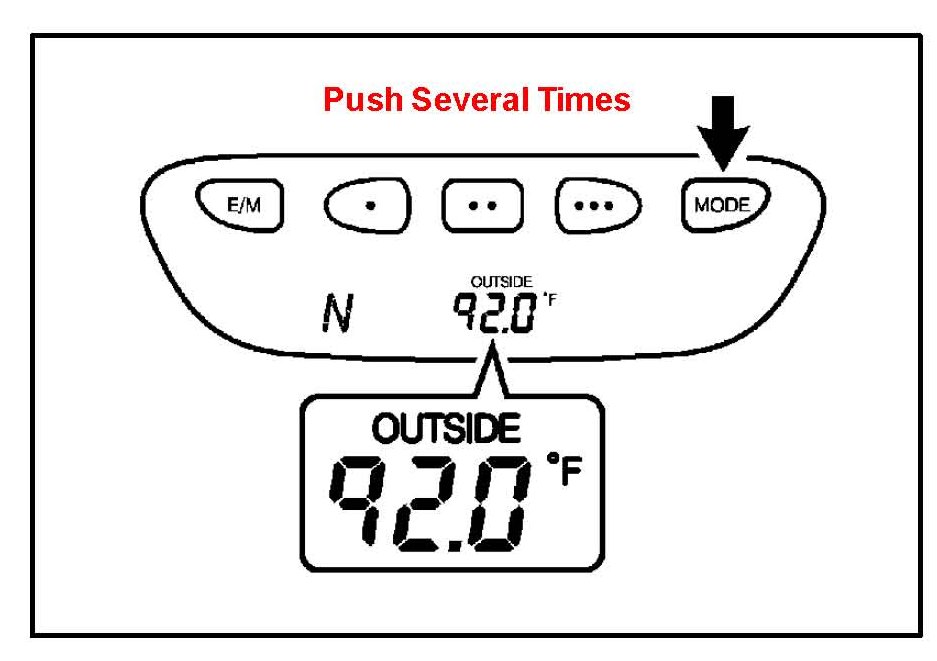

5. Start the engine then push the "MODE" button several times until the outside temperature is displayed on the multi-information display.

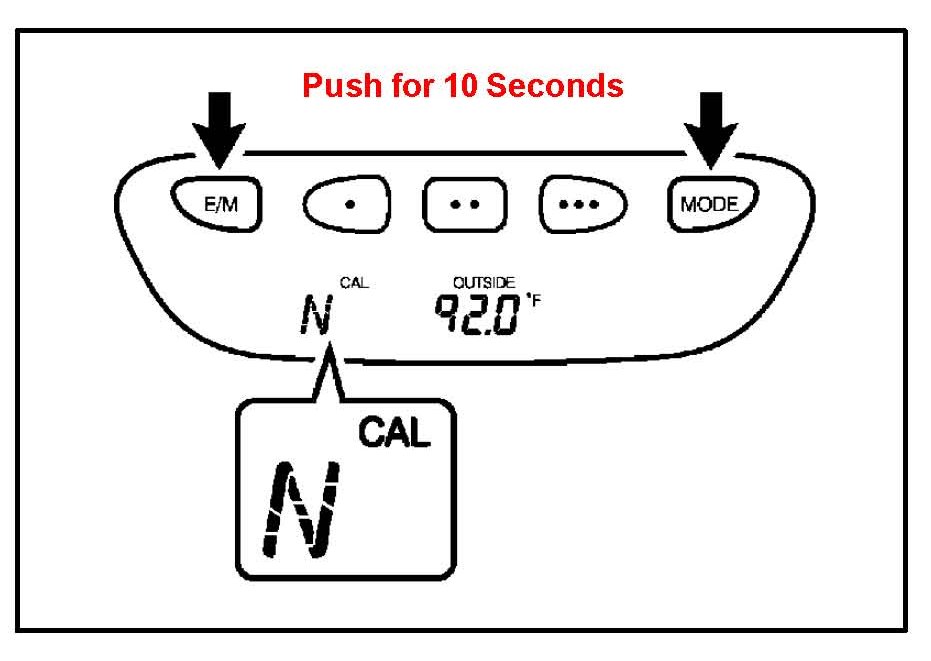

6. Push and hold the "MODE" and "E/M" buttons Simultaneously for 10 seconds until the "CAL indicator appears on the compass display.

NOTE
At this time, the compass display is locked in "N".

7. Drive the vehicle slowly at 5 mph (8 km/hr), or less, in a circle until the "CAL" indication goes off and the direction is displayed. If there is not enough space to drive in a circle, drive around the block until the direction is displayed.

After performing the above steps, calibration is complete.

NOTE

^ Do not perform calibration of the compass in a place where the earth's magnetic field is subject to interference by artificial magnetic fields (underground parking, under a steel tower, between buildings, roof parking, near a railroad crossing, near a large vehicle, etc.)

^ During calibration, do not operate electric systems (moon roof, power windows, etc.) as they may interfere with the calibration.
