Home
>>
Toyota Truck
>>
2005
>>
Sienna FWD V6-3.3L (3MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Oil Pump, Engine
Oil Pump, Engine

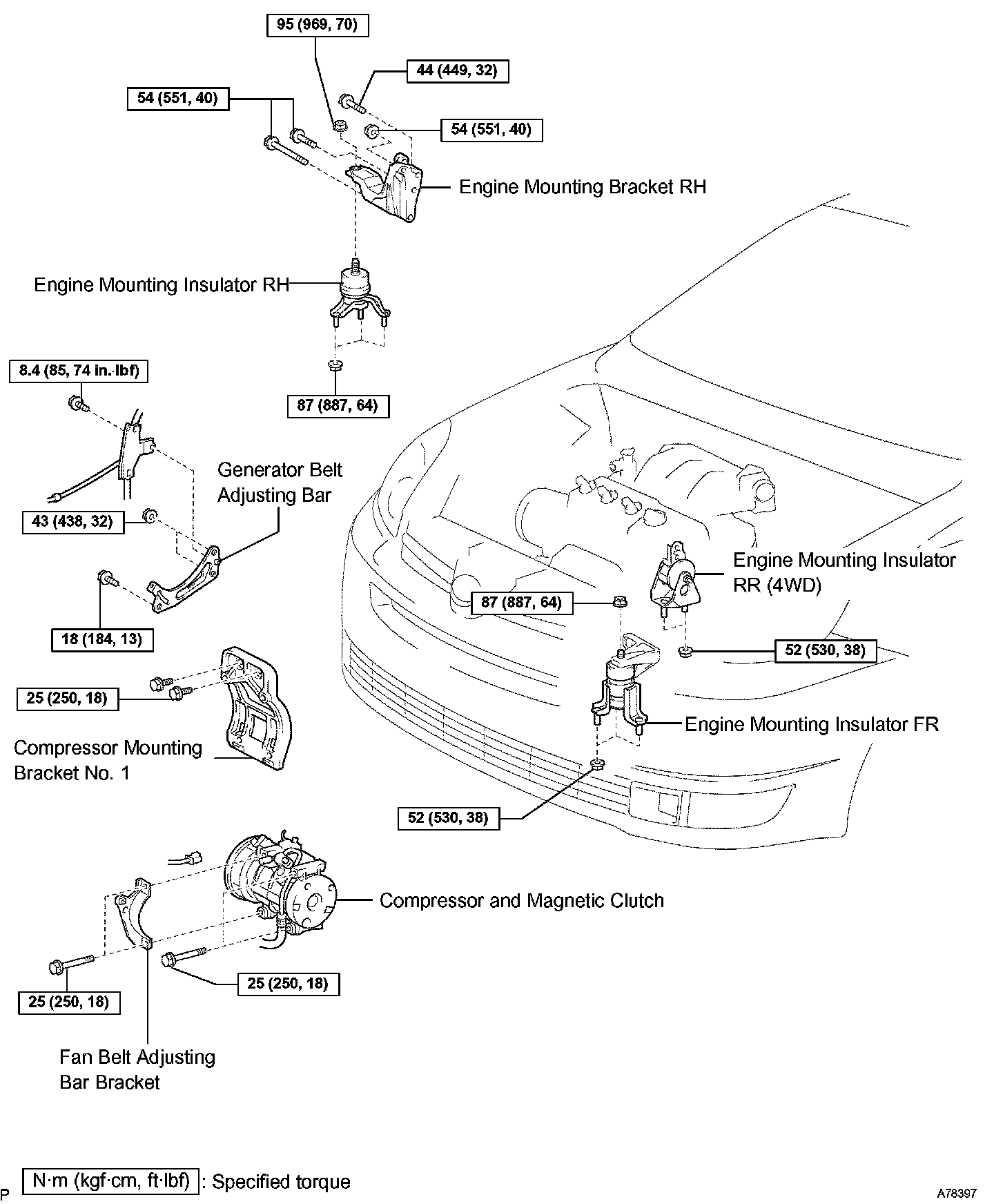

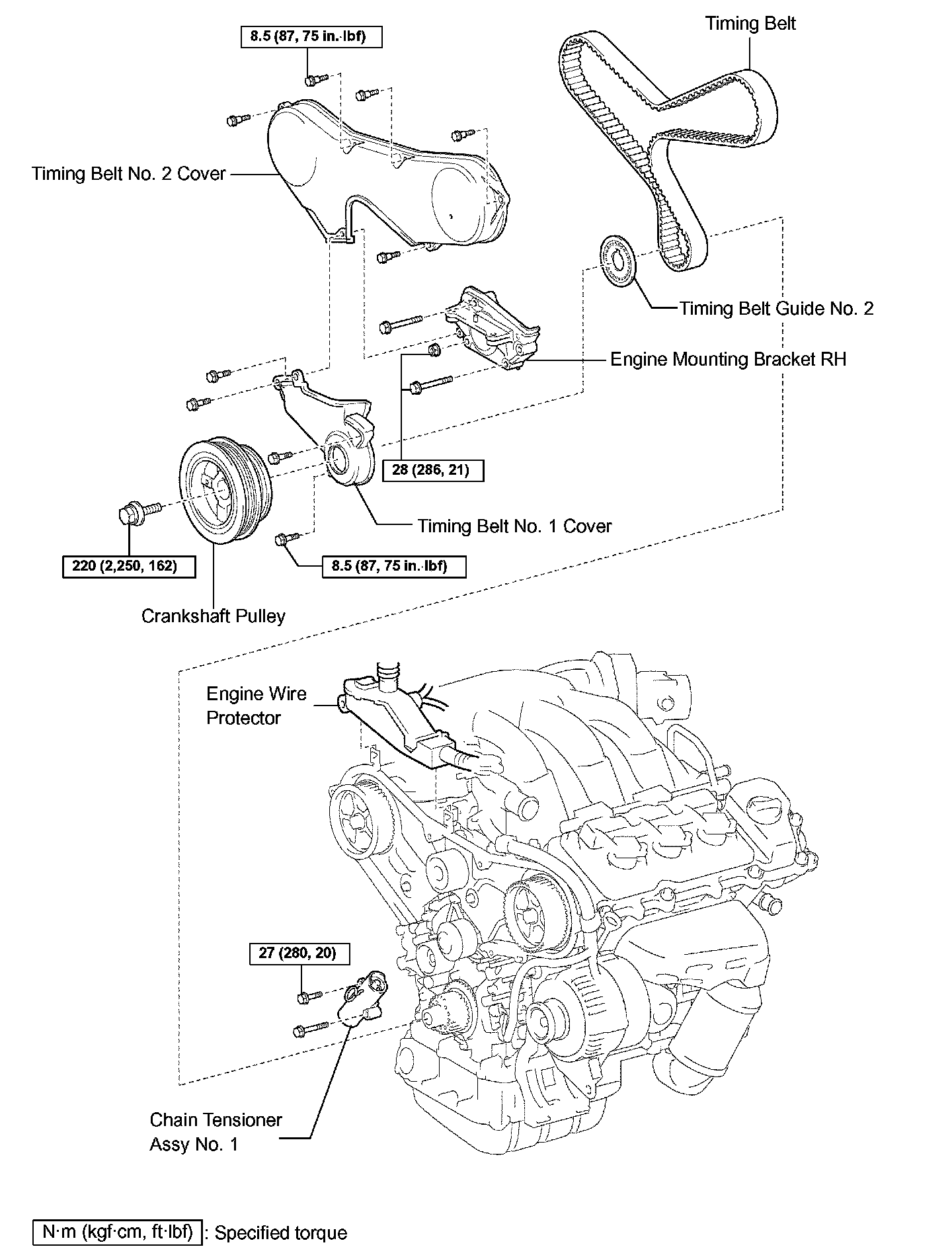

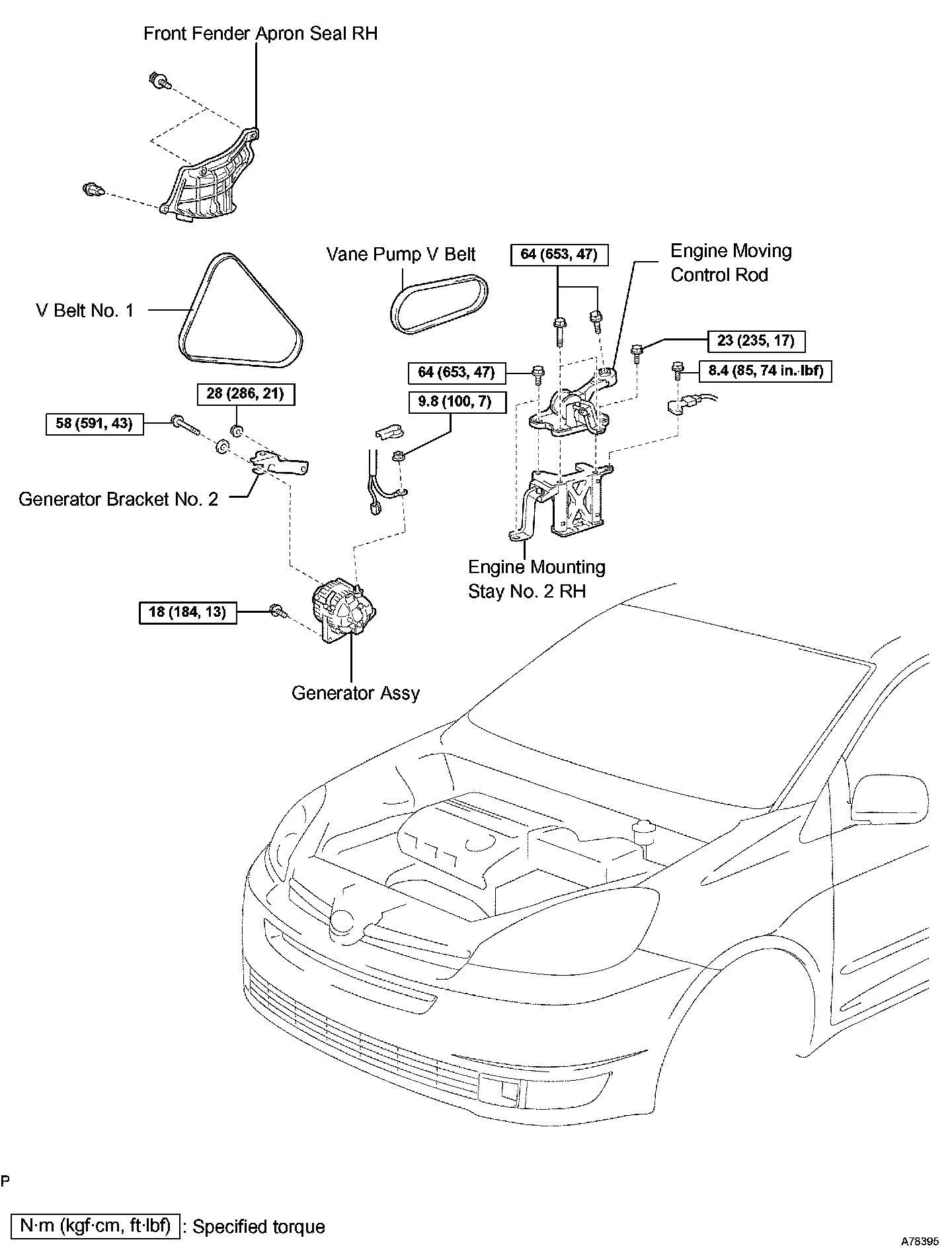

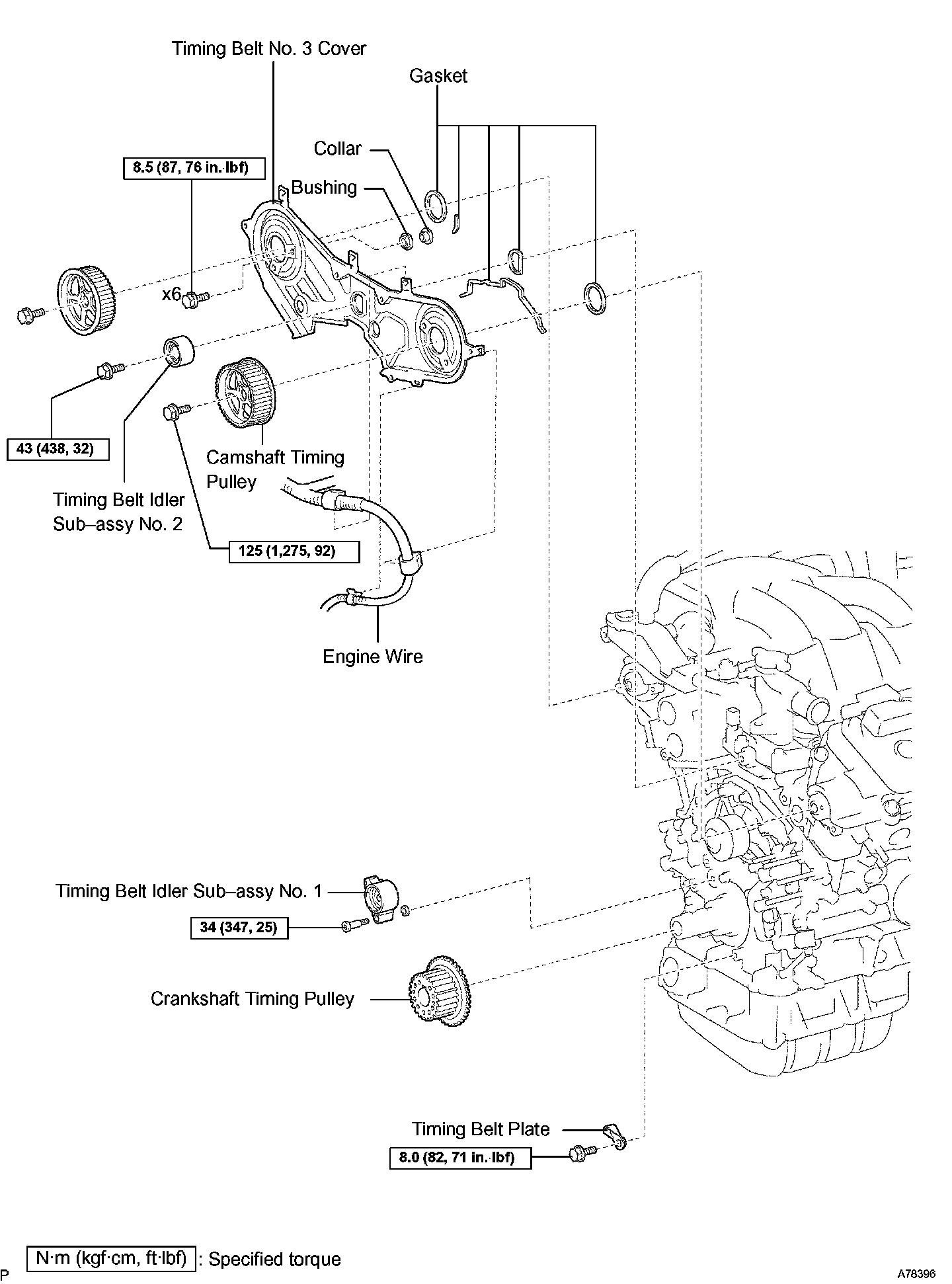

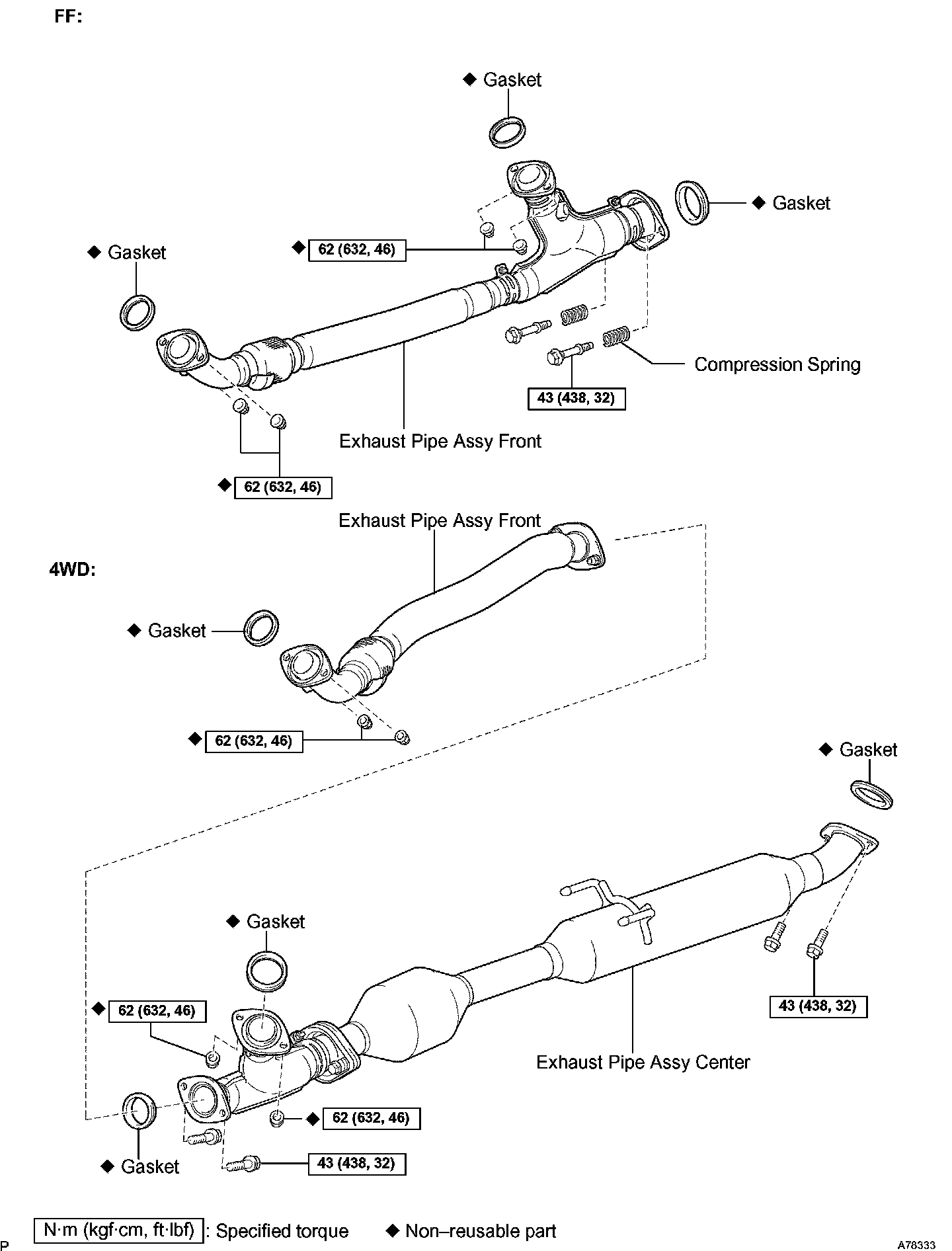

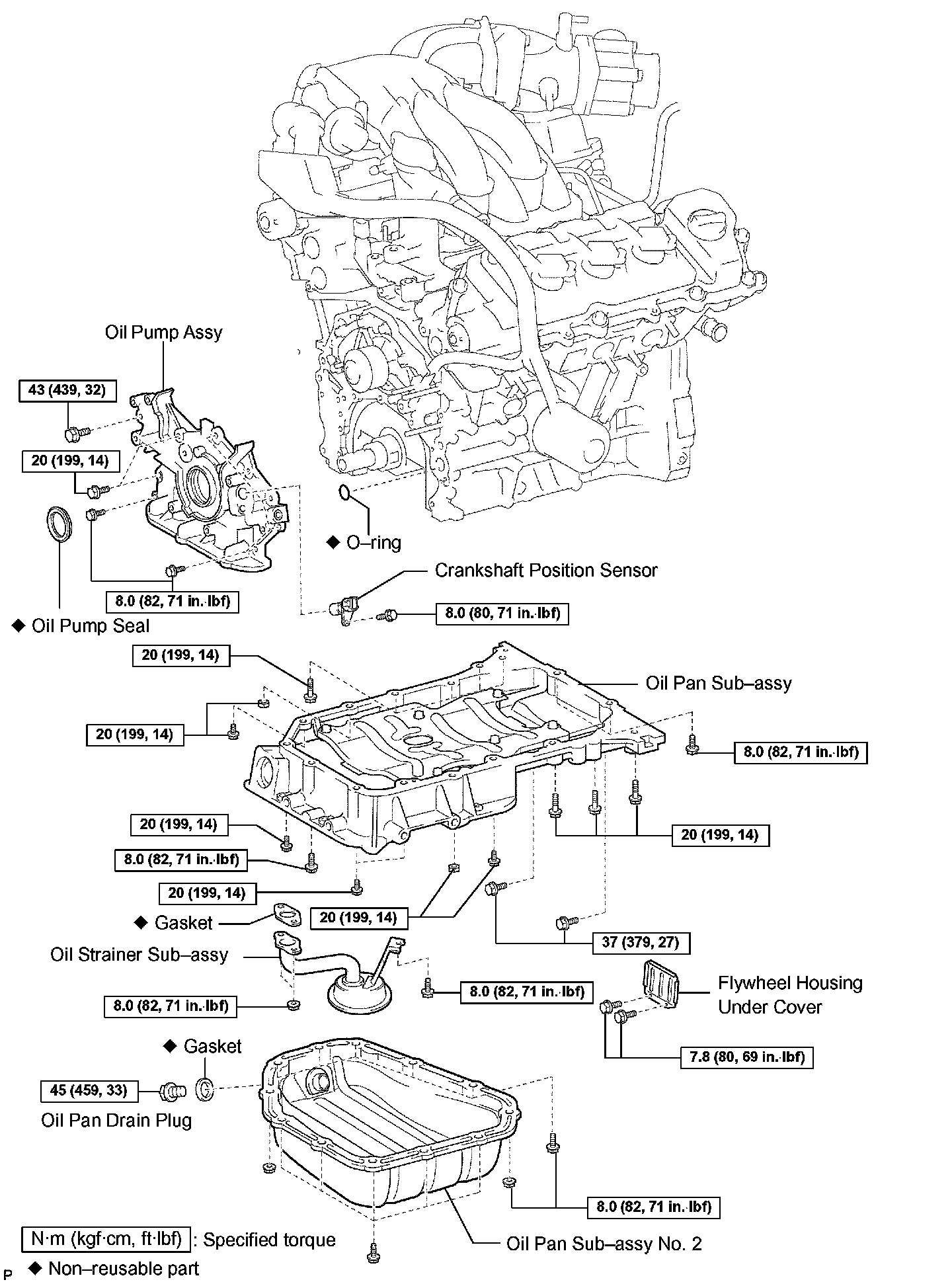

OIL PUMP ASSEMBLY REPLACEMENT W/ RELATED COMPONENTS
