Skid Control Sensor
SKID CONTROL SENSOR (FF)REPLACEMENT
HINT: Replace the RH side by the same procedure as the LH side.
1. REMOVE REAR WHEEL

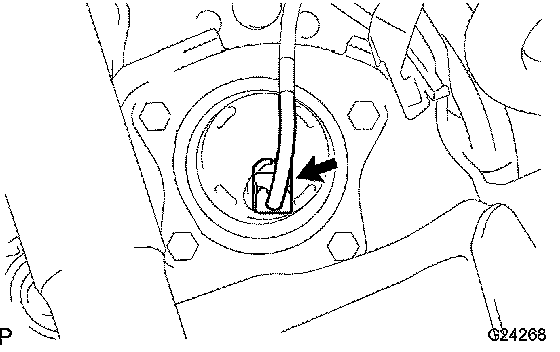

2. SEPARATE SKID CONTROL SENSOR WIRE
a. Disconnect the connector from the skid control sensor.
3. REMOVE REAR BRAKE DRUM SUB-ASSEMBLY (DRUM REAR BRAKE TYPE)
a. Place matchmarks on the rear brake drum sub-assembly and the axle hub.
b. Remove the rear brake drum sub-assembly.
4. REMOVE REAR DISC BRAKE CALIPER ASSEMBLY LH (DISC REAR BRAKE TYPE)
a. Remove the 2 bolts and rear brake caliper assembly LH.
5. REMOVE REAR DISC (DISC REAR BRAKE TYPE)
a. Place matchmarks on the rear disc and the axle hub.
b. Remove the rear disc.
6. REMOVE REAR AXLE HUB & BEARING ASSEMBLY LH
7. REMOVE SKID CONTROL SENSOR
a. Mount the rear axle hub in a soft jaw vise.
NOTICE: Replace the axle hub assembly if it is dropped or a strong shock is given to it.
b. Using a pin punch and hammer, drive out the 2 pins and remove the 2 attachments from SST.

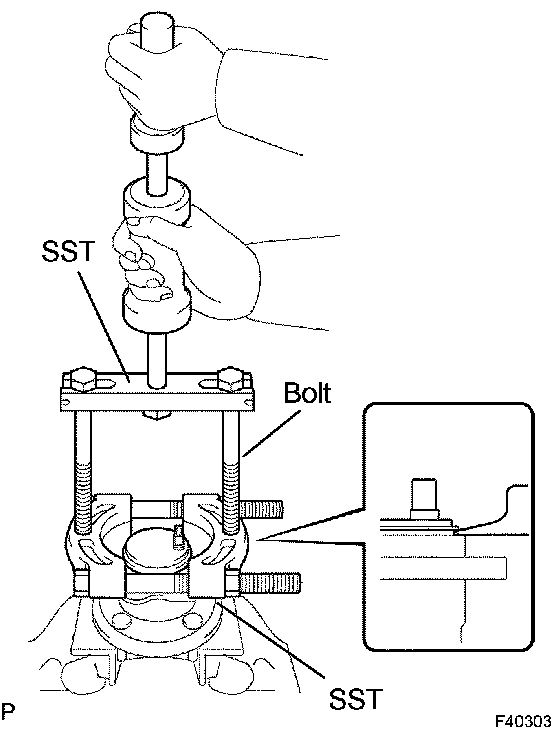

c. Using SST and 2 bolts (Diameter: 12 mm, pitch: 1.5 mm), remove the skid control sensor from the rear axle hub.
SST 09520-00031 (09520-00040), 09521-00020, 09950-00020
NOTICE:
^ If a damage is inflicted to the sensor rotor is damaged, replace the axle hub assembly.
^ Do not scratch the contacting surface of the axle hub and speed sensor.
8. INSTALL SKID CONTROL SENSOR
a. Clean the contacting surface of the axle hub and a new skid control sensor.
NOTICE: Keep the sensor rotor clean.

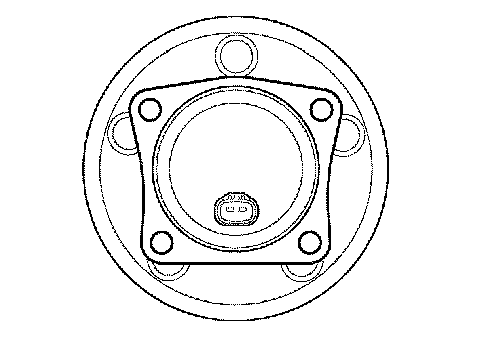

b. Place the speed sensor on the axle hub so that the connector is positioned as shown in the illustration.

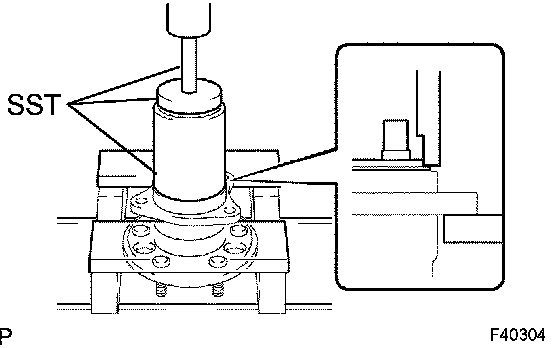

c. Using SST and a press, install the skid control sensor to the axle hub.
SST 09214-76011
NOTICE:
^ Do not tap the skid control sensor with a hammer directly.
^ Check that there is no foreign matter on the skid control sensor detection portion.
^ Press in the skid control sensor straight and slowly.
9. INSTALL REAR AXLE HUB & BEARING ASSEMBLY LH
10. INSTALL REAR BRAKE DRUM SUB-ASSEMBLY (DRUM REAR BRAKE TYPE)
a. Aligning the matchmarks, install the rear brake drum sub-assembly.
11. INSTALL REAR DISC (DISC REAR BRAKE TYPE)
a. Aligning the matchmarks, install the rear disc.
12. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY LH (DISC REAR BRAKE TYPE)
a. Install the rear disc brake caliper assembly LH with the 2 bolts.
Torque: 88 Nm (900 kgf-cm, 65 ft. lbs.)

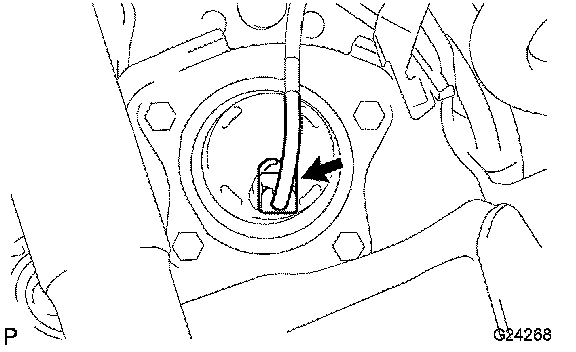

13. CONNECT SKID CONTROL SENSOR WIRE
a. Connect the connector to the skid control sensor connector.
14. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
15. INSPECT AND ADJUST REAR WHEEL ALIGNMENT
16. CHECK ABS SPEED SENSOR SIGNAL
