Windshield Washer Spray Nozzle: Adjustments
WASHER NOZZLE SUB-ASSEMBLYADJUSTMENT
1. REMOVE WASHER NOZZLE SUB-ASSEMBLY

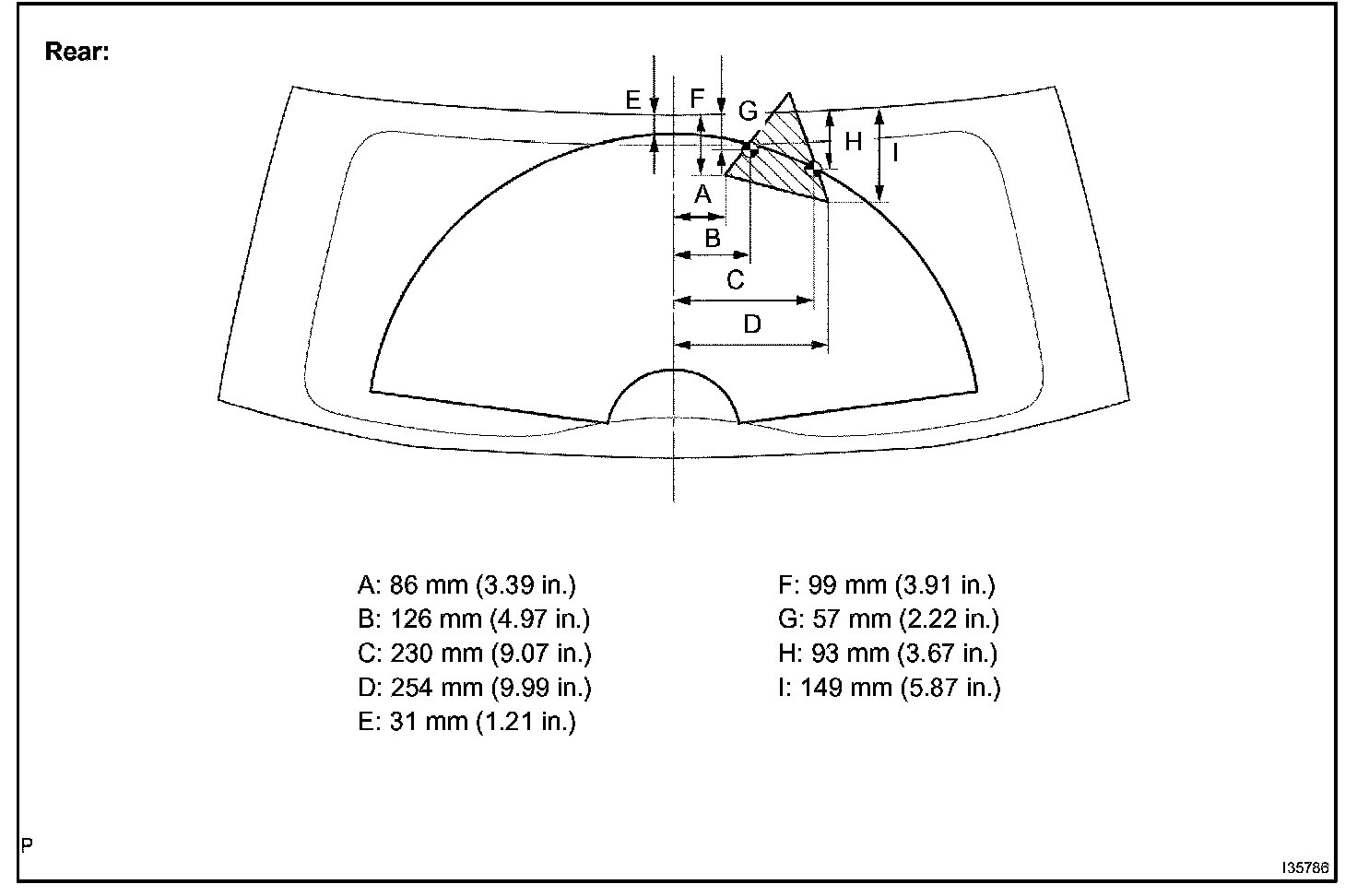

a. With the engine running, check that the point where the washer fluid hits the rear window is within the range indicated by the hatched line.
