On-Vehicle Inspection

ON-VEHICLE INSPECTION




1. INSPECT INTAKE AIR CONTROL SYSTEM

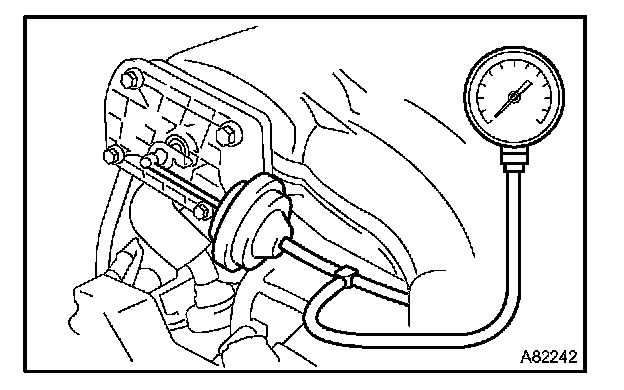

a. Using a three way connector, connect vacuum gauge to the actuator hose.
b. Connect the hand held tester to the DLC 3.
c. Start the engine.
d. Select the active test mode according to the message on the hand held tester.




Vacuum:
