Rear Power Point Socket Assembly

Audio & Visual System - Part 2:

POWER POINT SOCKET ASSEMBLY

REPLACEMENT

1. REMOVE REAR DOOR SCUFF PLATE LH
2. REMOVE REAR DOOR WEATHERSTRIP LH
3. REMOVE BACK DOOR WEATHERSTRIP
4. REMOVE BACK DOOR SCUFF PLATE
5. REMOVE QUARTER TRIM PANEL ASSEMBLY FRONT LH








6. REMOVE POWER POINT SOCKET ASSEMBLY

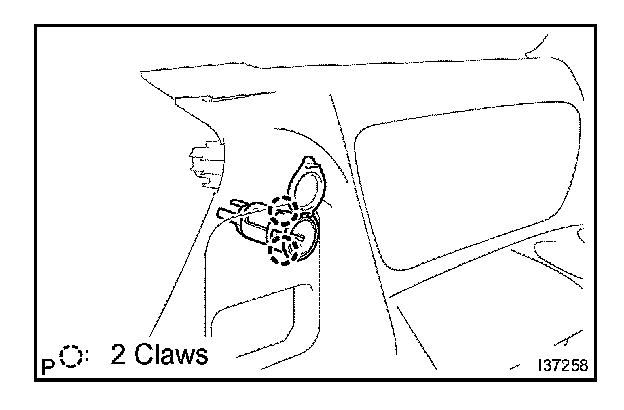

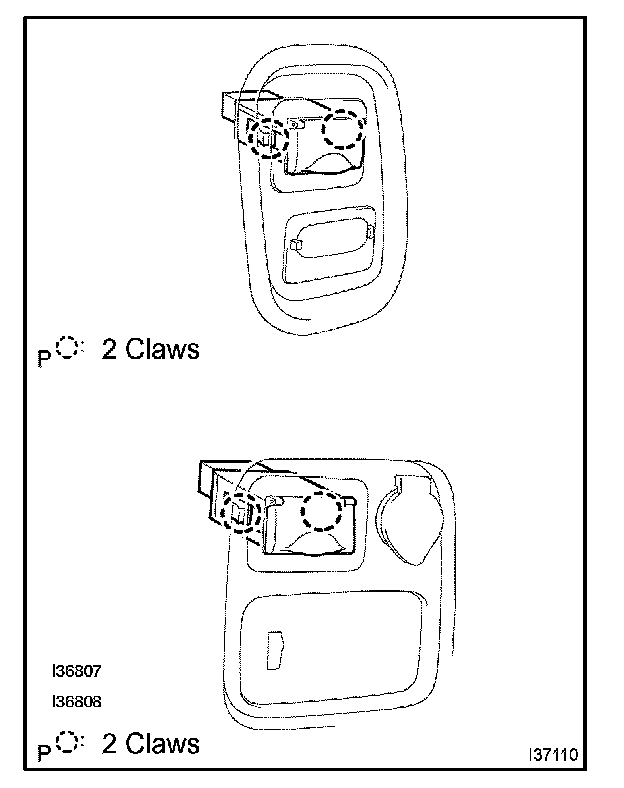

a. Release the 2 claw fittings and remove the power point socket assembly.
