A/C Belt

V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1

REPLACEMENT




1. REMOVE V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1

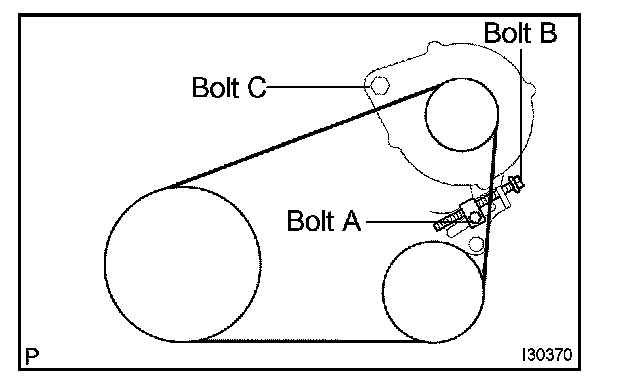

a. Loosen the bolt C.
b. Loosen the bolt A.
c. Loosen the bolt B and remove the V (cooler compressor to crankshaft pulley)belt No.1.




2. INSTALL V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1

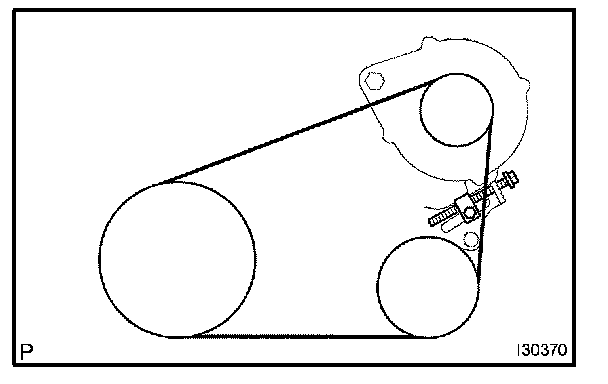

a. Temporarily install the V (cooler compressor to crankshaft pulley)belt No.1 as illustrated.







3. ADJUST V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1

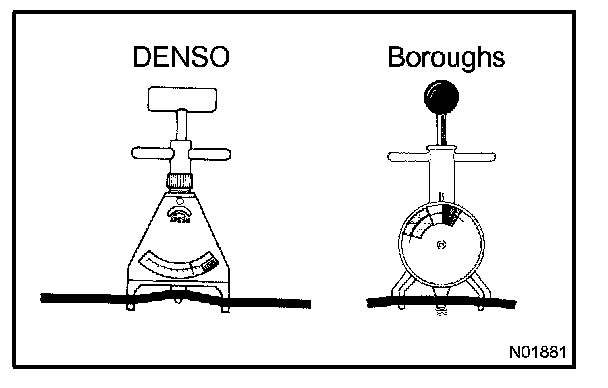

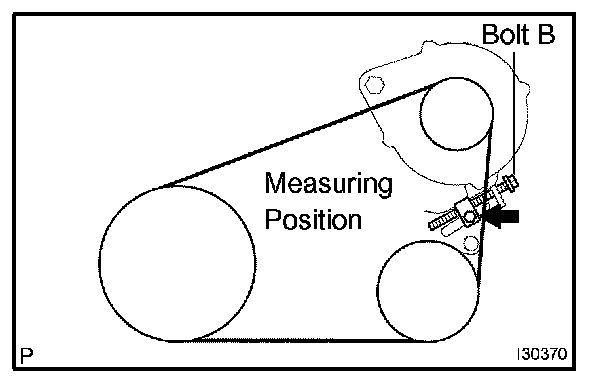

a. Apply drive belt tension by turning the bolt B.
Drive belt tension:
New Belt: 165 ± 27 lbf
Used belt: 88 ± 22 lbf

HINT:
- "New belt" refers to a belt which has been used less than 5 minutes on a running engine.
- "Used belt" refers to a belt which has been used on a running engine for 5 minutes or more.

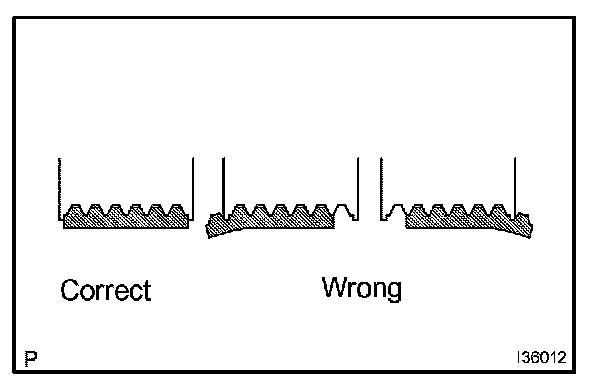

- Check that the drive belt fits properly in the ribbed grooves.




4. FULLY TIGHTEN V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1

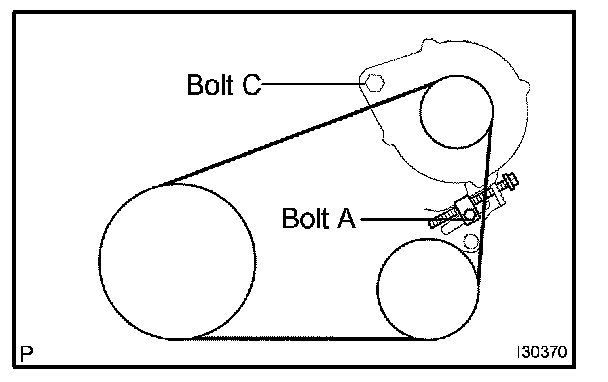

a. Tighten the bolt A.

Torque: 17.5 Nm (178 kgf.cm, 12 ft.lbf)

b. Tighten the bolt C.

Torque: 58 Nm (591 kgf.cm, 43 ft.lbf)
