Automatic Light Control Sensor Circuit

AUTOMATIC LIGHT CONTROL SENSOR CIRCUIT

CIRCUIT DESCRIPTION

The Multiplex network body ECU receives the signal from the automatic light control sensor.

HINT: DTC code is output when malfunction of automatic light control sensor or open or short of automatic light control sensor circuit occurs.

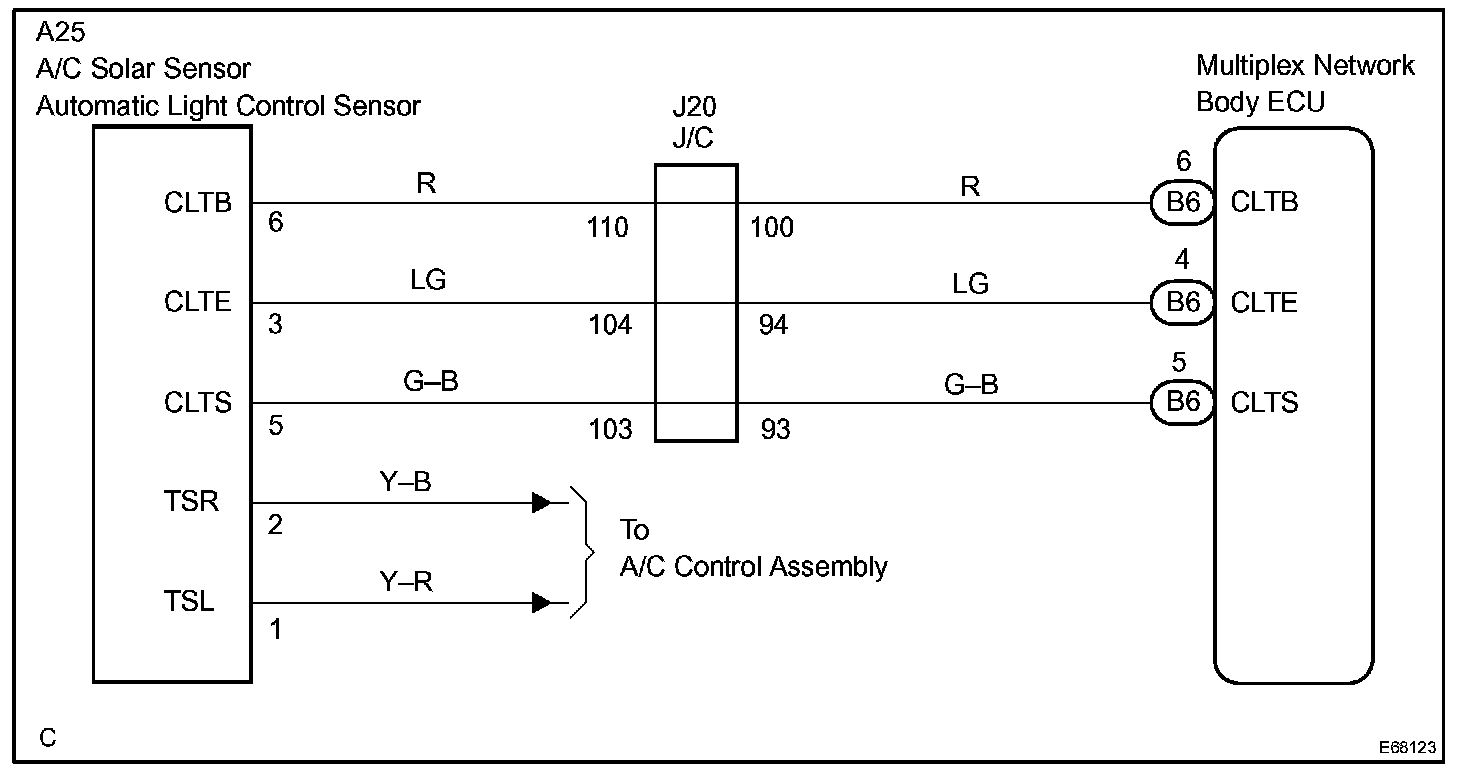

Wiring Diagram:

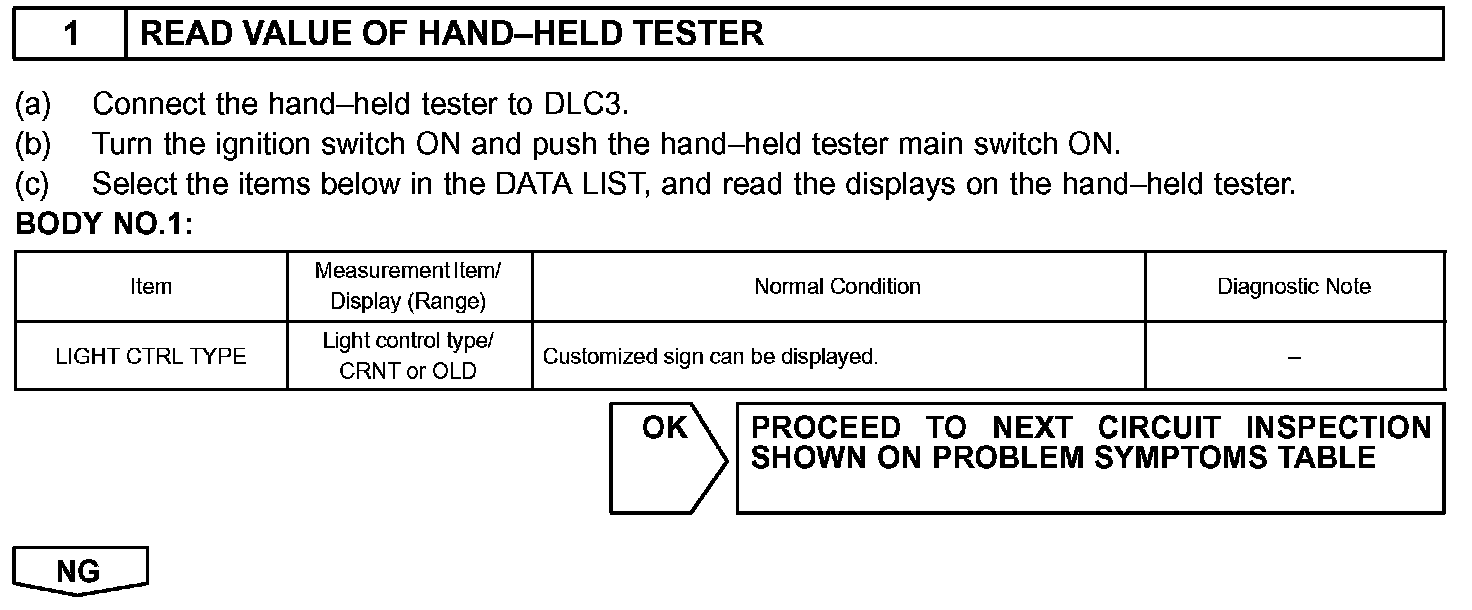

Step 1:

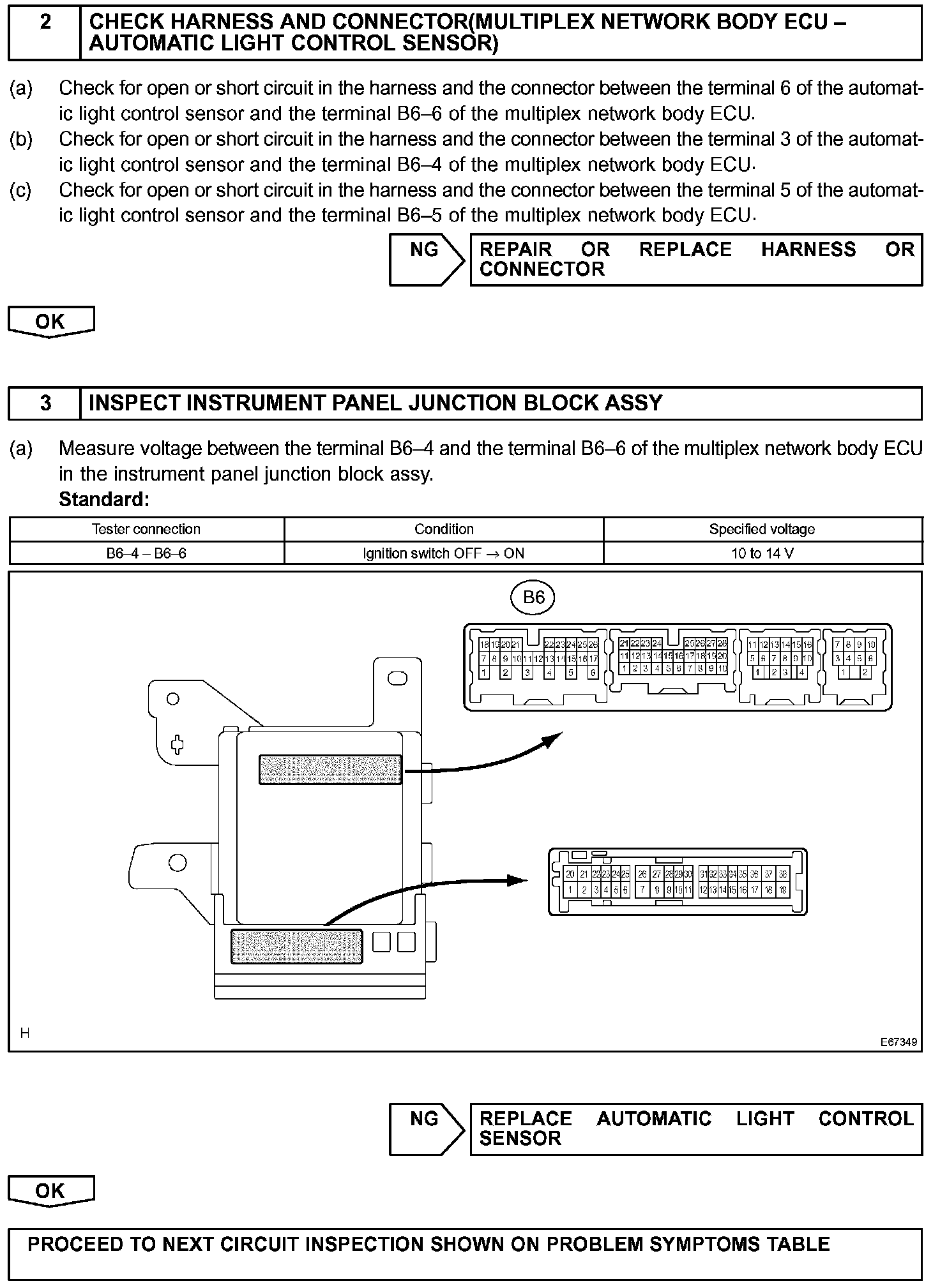

Step 2 - 3:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 in the case of using the hand-held tester, and start from step 2 in the case of not using the hand-held tester.
