Fog/Driving Lamp: Service and Repair
FOG LAMP ASSEMBLY LHREPLACEMENT
1. REMOVE FRONT FENDER LINER LH

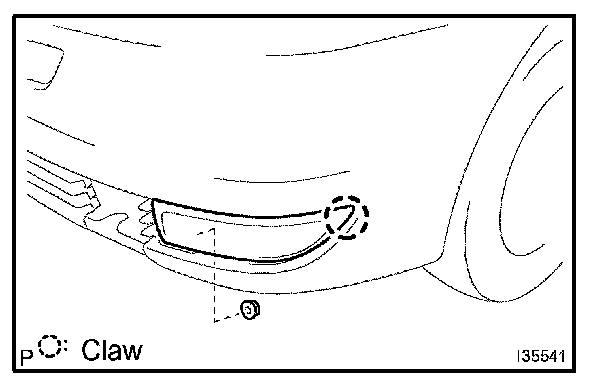

2. REMOVE FOG LAMP ASSEMBLY LH
a. Disconnect the connector.
b. Remove the nut.
c. Release the claw fitting and remove the fog lamp assembly LH.
3. REMOVE FOG LAMP BULB
a. Disconnect the socket cover as shown in the illustration.
b. Release the lock of the set spring and remove the fog lamp bulb.
4. INSTALL FRONT FENDER LINER LH
5. PUT VEHICLE THESE CONDITIONS
6. ADJUST FOG LIGHT AIM
7. CHECK FOG LIGHT AIM
