IG Power Source Circuit

IG POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This is the power source for the air conditioner amplifier (contains the ECU) and servomotor etc.

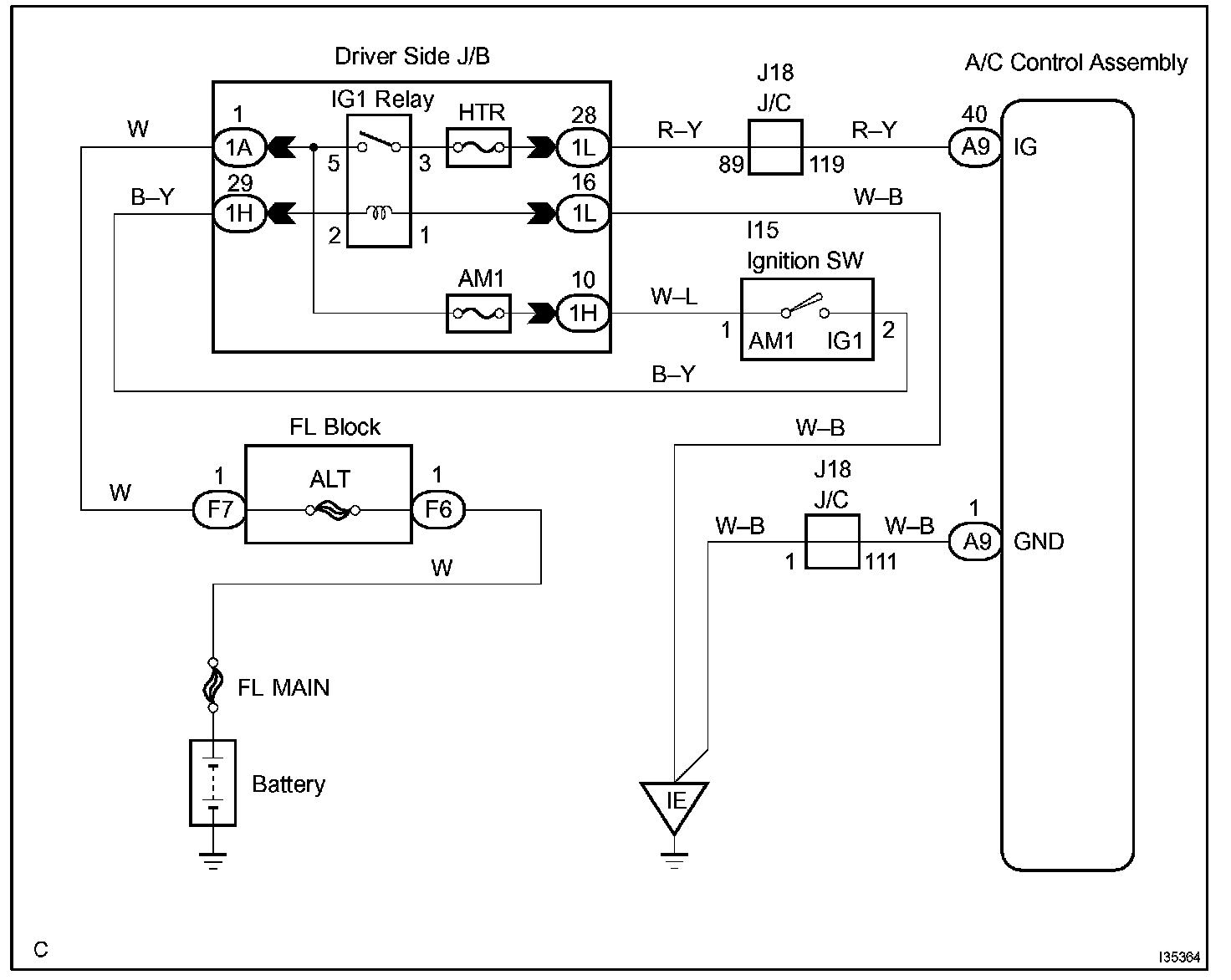

Wiring Diagram:

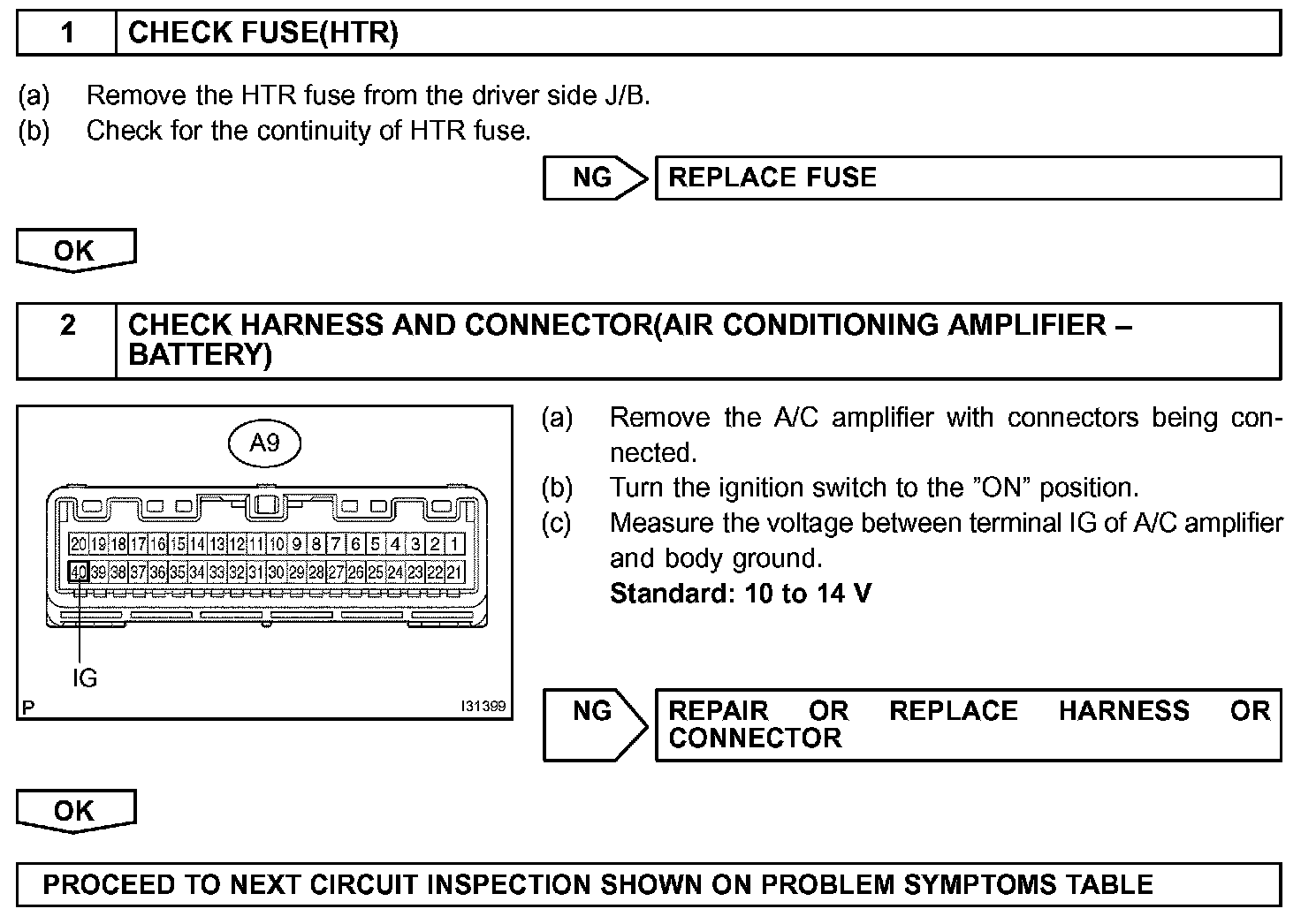

Step 1 - 2:




INSPECTION PROCEDURE
