Blower Motor: Testing and Inspection

INSPECT BLOWER W/FAN MOTOR SUB-ASSEMBLY (MANUAL AIR CONDITIONING)

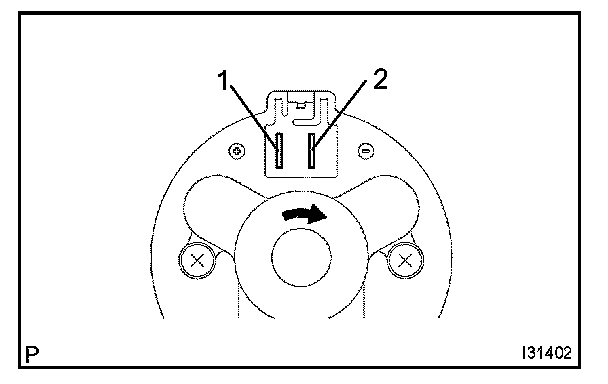

a. Connect the positive (+) lead from the battery to terminal 1 and negative (-) to terminal 2, then check that the motor operation smoothly.
If operation is not as specified, replace the blower motor.
