Blower Motor Resistor: Testing and Inspection

INSPECT BLOWER RESISTOR (MANUAL AIR CONDITIONING)

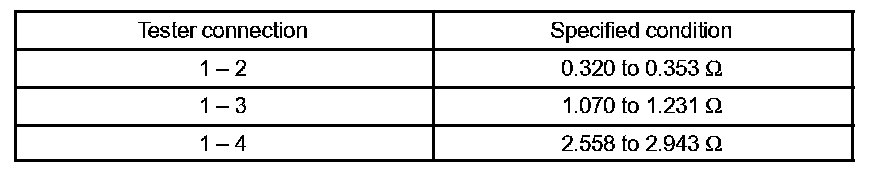

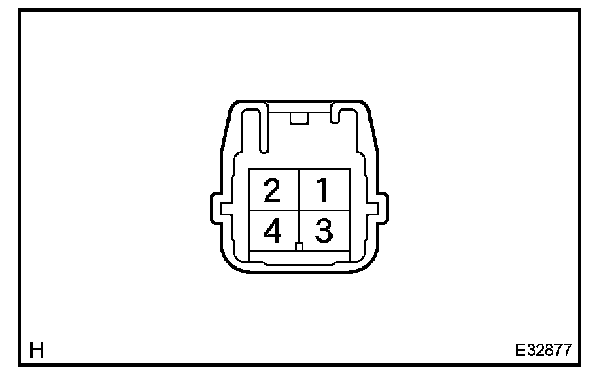

a. Measure resistance between terminals, as shown in the table.
If resistance is not as specified, replace the blower resistor.
