Toyota Truck
>>
2005
>>
Sienna AWD V6-3.3L (3MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>
R6 - R27
R6 - R27

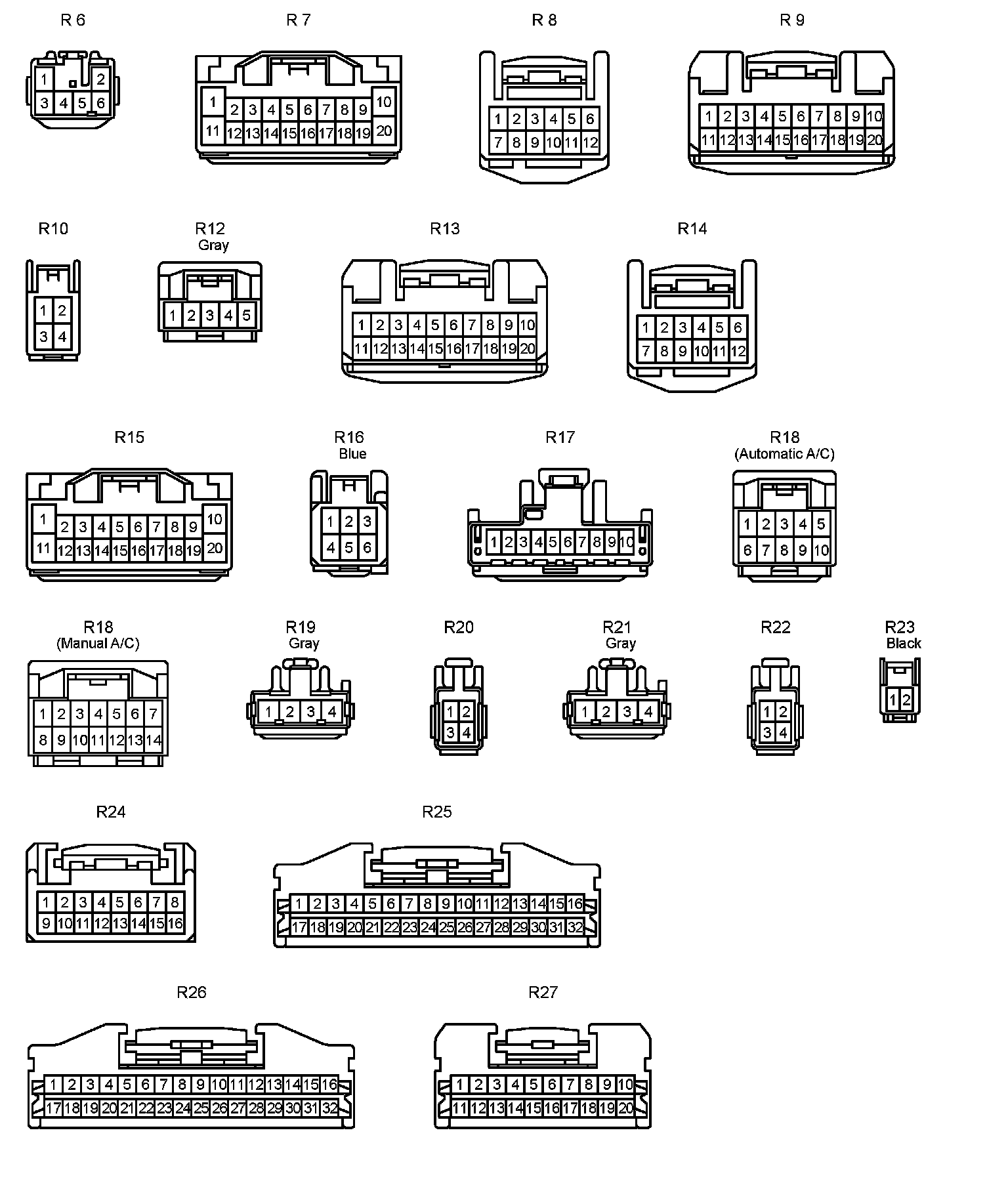

R6 - R27:
