Toyota Truck
>>
2005
>>
Sienna AWD V6-3.3L (3MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>

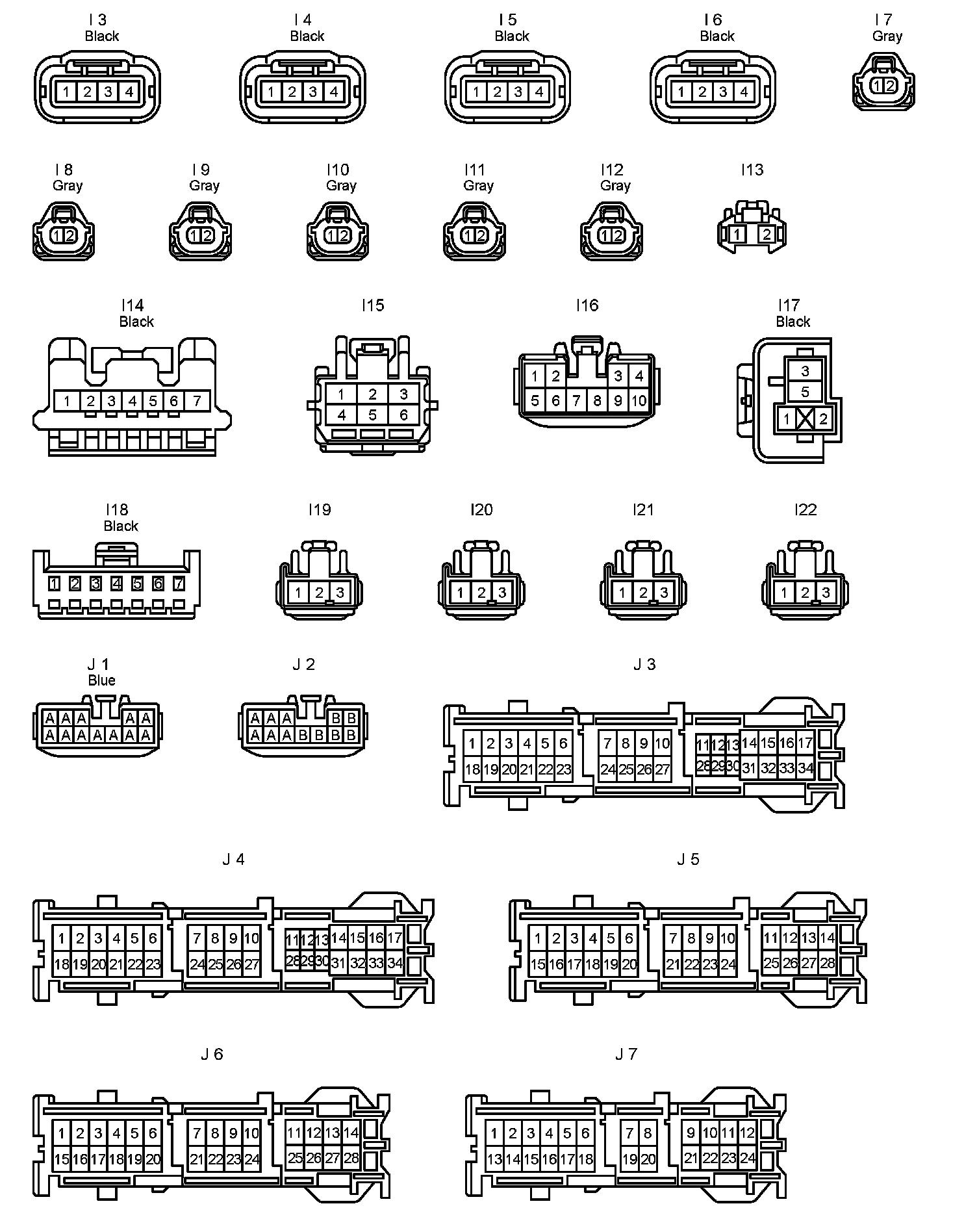

I3 - J7
I3 - J7
I3 - J7:
