Brakes and Traction Control: Testing and Inspection

BRAKE SYSTEM

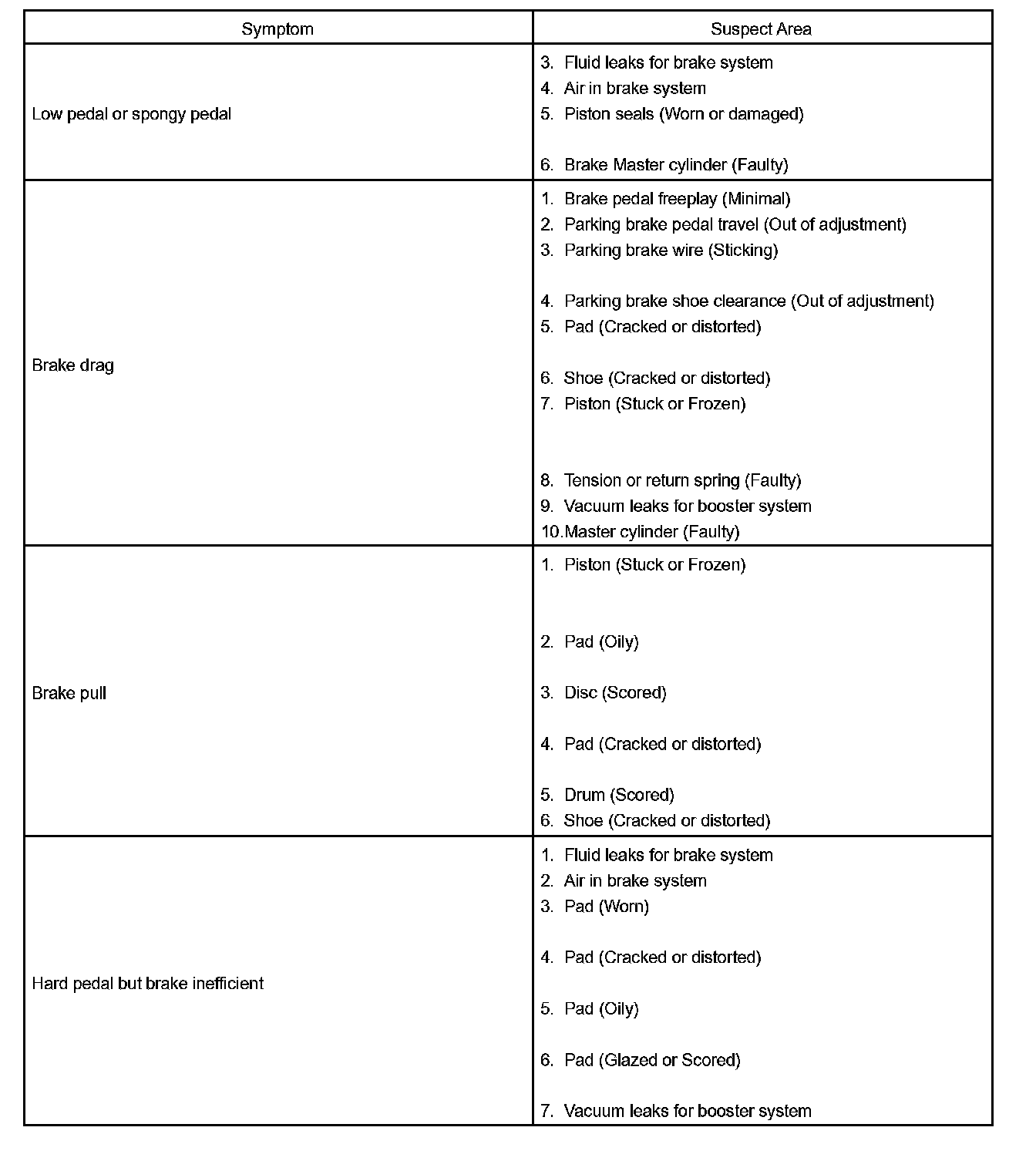

PROBLEM SYMPTOMS TABLE

Part 1 Of 2:

Part 2 Of 2:

Use the table to help you find the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check each part in order. If necessary, replace these parts.
