ABS W/EBD System
BRAKE WARNING LIGHT CIRCUITCIRCUIT DESCRIPTION
If the ECU detects a trouble, it turns on the brake warning light at the same time of prohibiting ABS control. At this time, the ECU records a DTC in memory.
Connect terminals Tc and CG of the DLC3 to make the brake warning light blink and output the DTC.

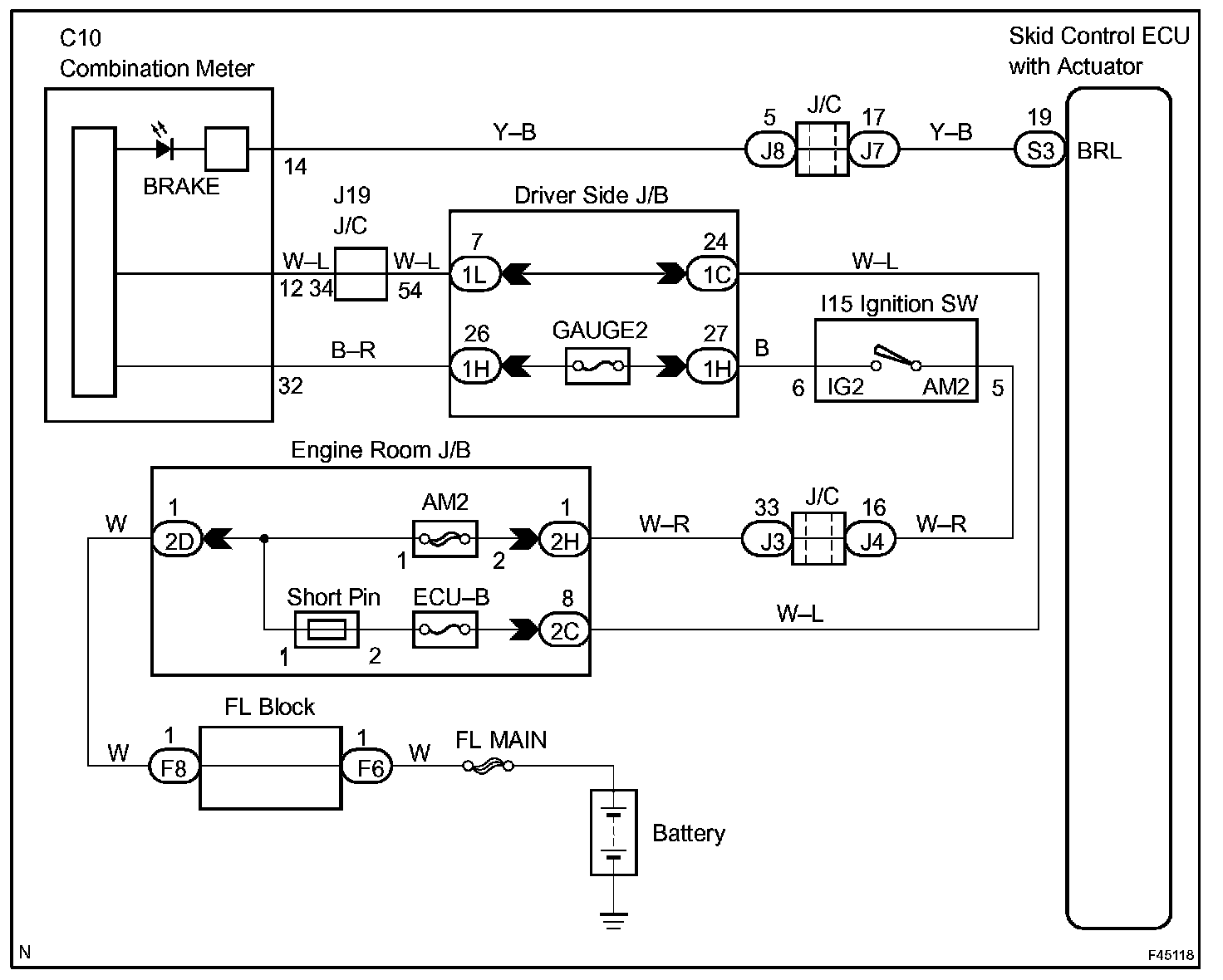

Wiring Diagram:
Step 1 - 5:

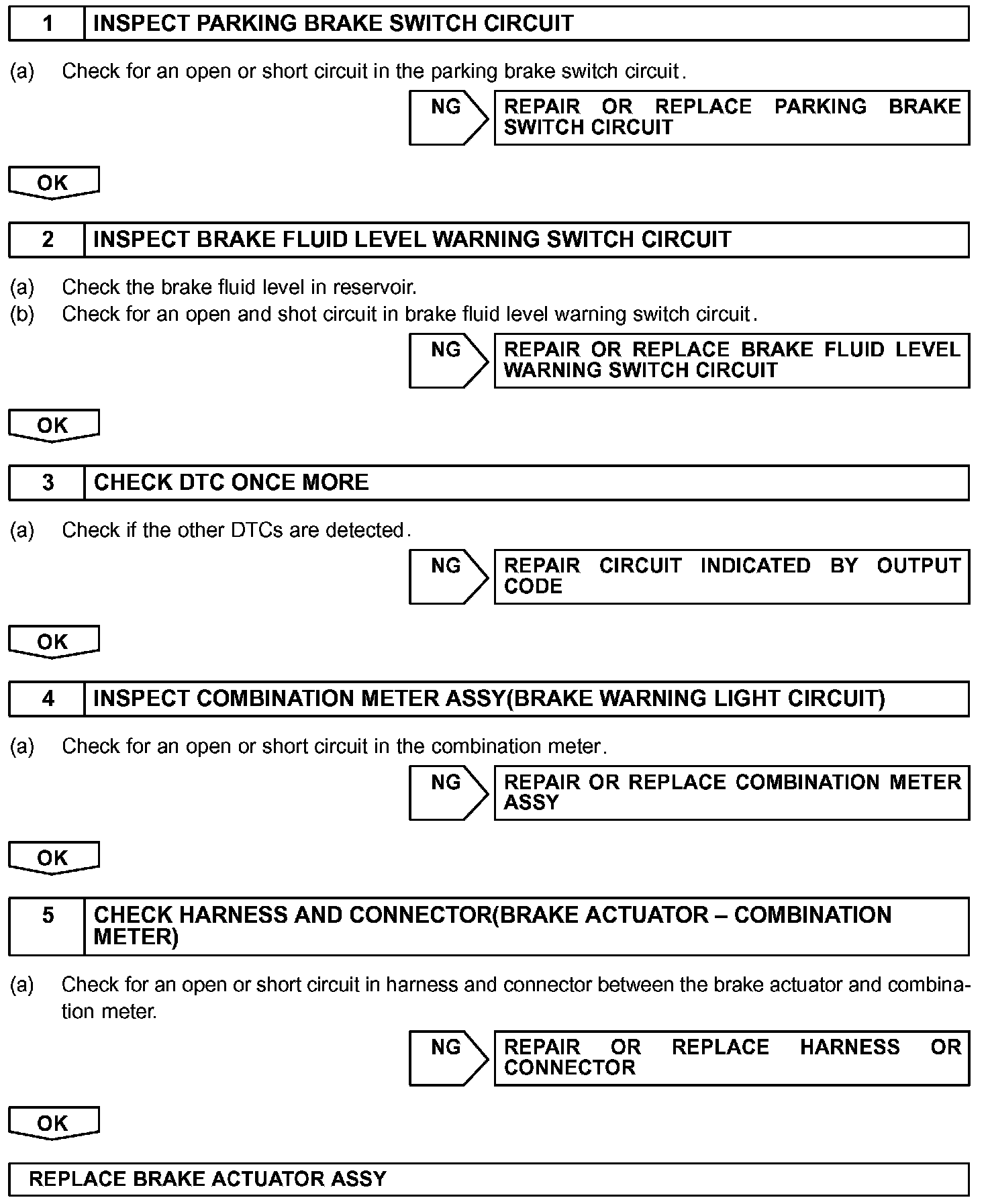

INSPECTION PROCEDURE
