VSC Warning Light Circuit (Does Not Light Up)

VSC WARNING LIGHT CIRCUIT (DOES NOT LIGHT UP)

CIRCUIT DESCRIPTION

If the ECU stores DTC, the VSC warning light lights on the combination meter.

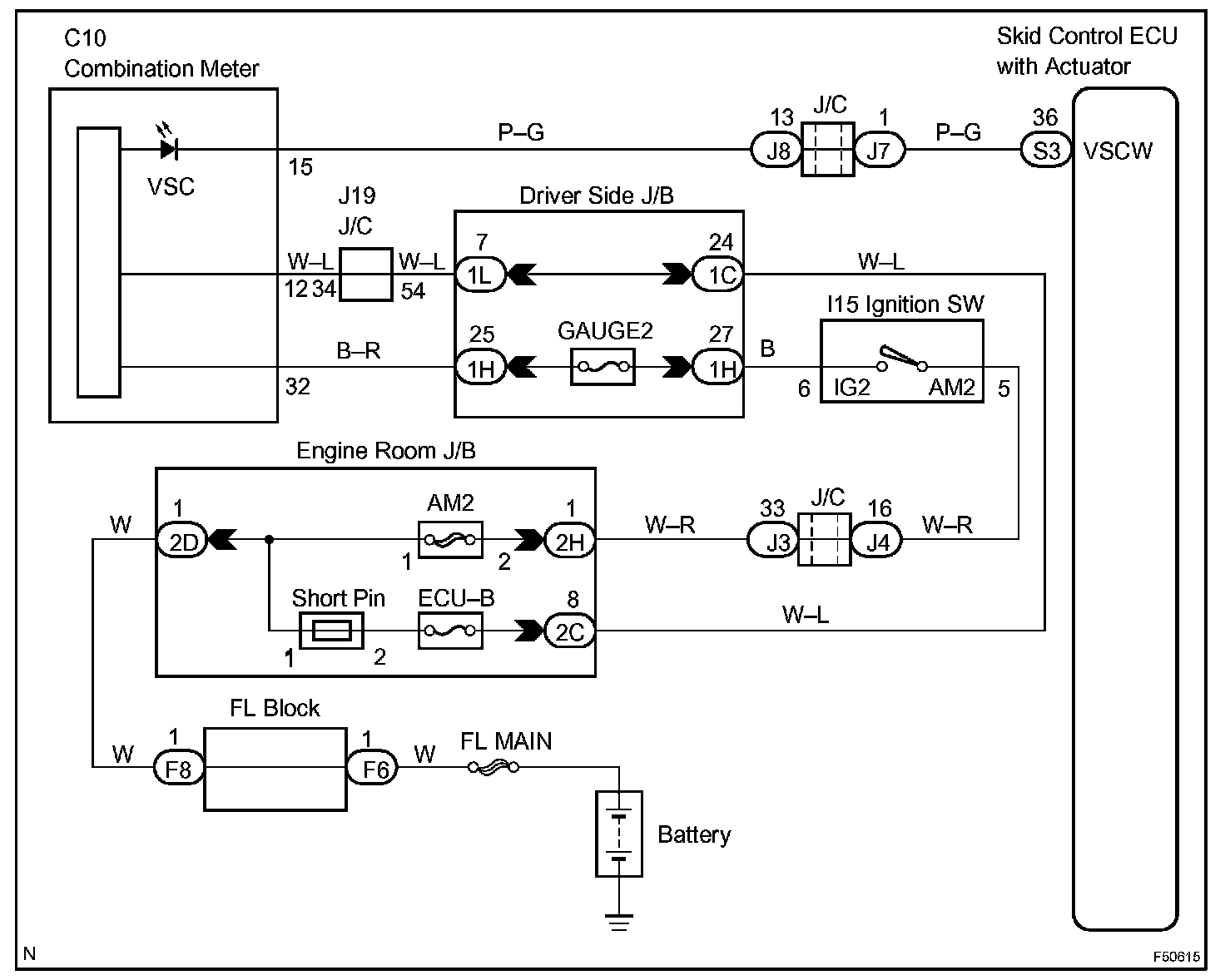

Wiring Diagram:

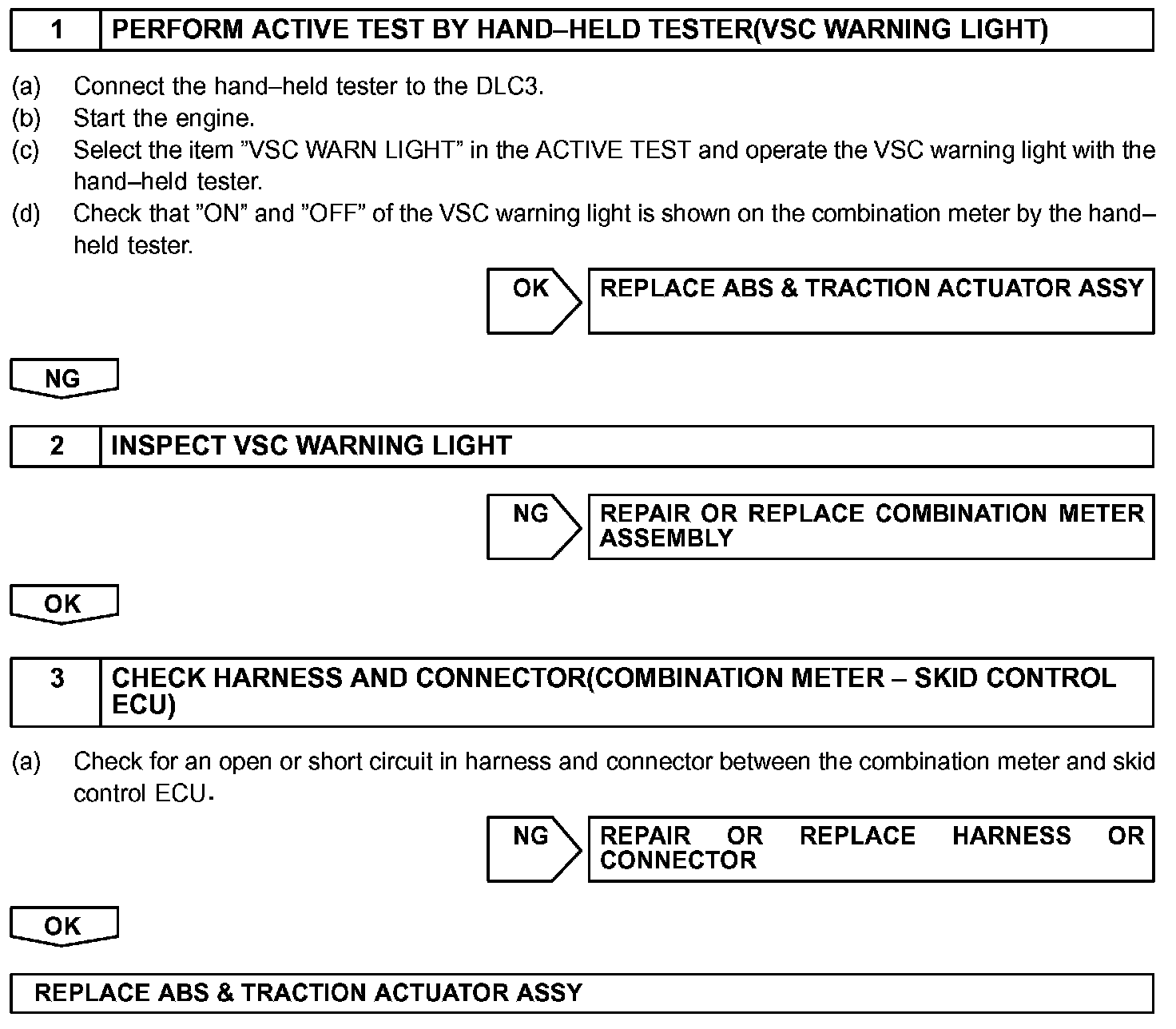

Step 1 - 3:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 if you are using the hand-held tester and start from step 2 if you are not using the hand-held tester.
