ABS W/EBD System

ABS WARNING LIGHT CIRCUIT (DOES NOT LIGHT UP)

CIRCUIT DESCRIPTION

If the ECU detects a trouble, it will prohibit ABS control, turn on ABS warning light, and store the DTC. Connect terminals Tc and CG of the DLC3 to make the ABS warning light blink and output the DTC.

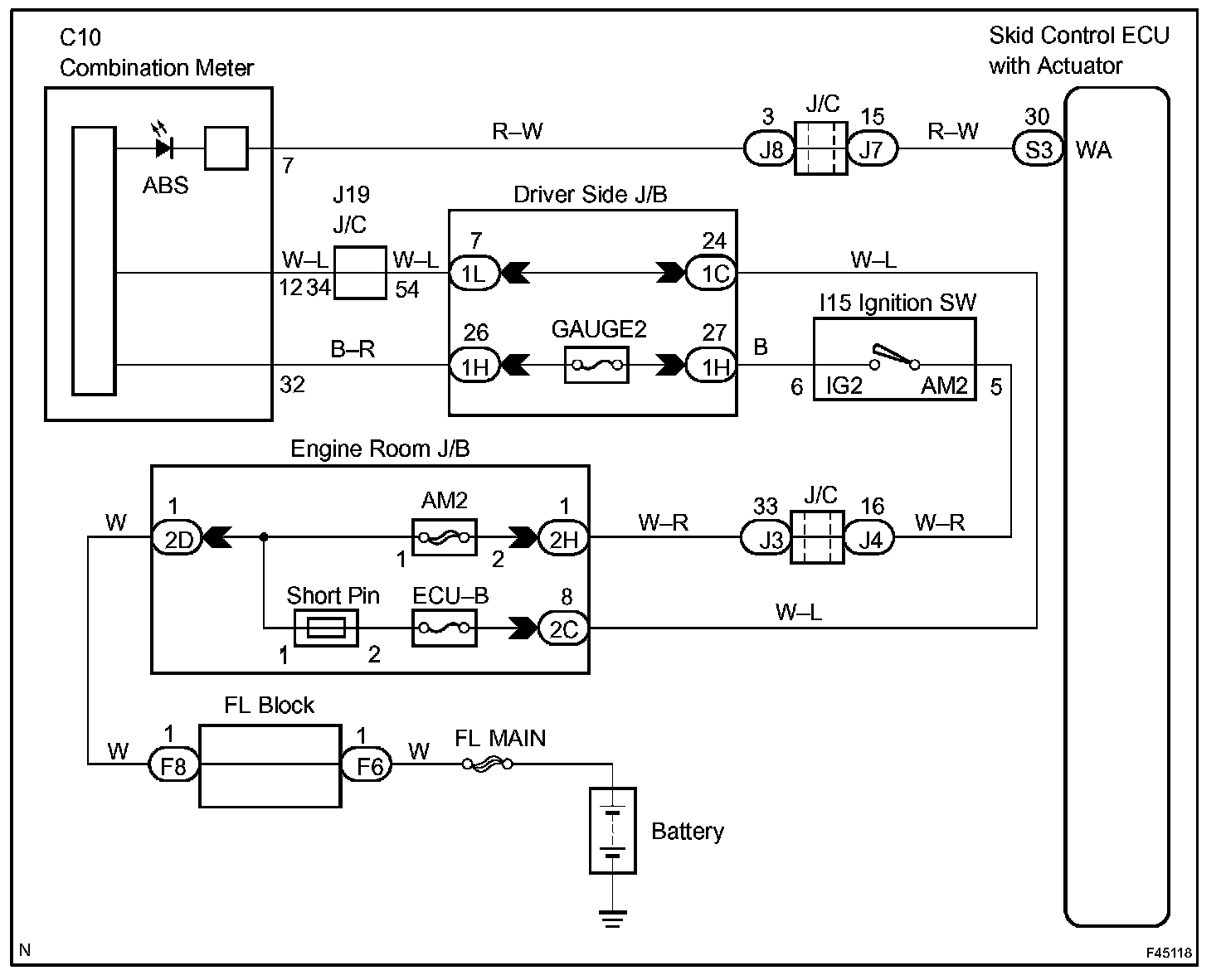

Wiring Diagram:

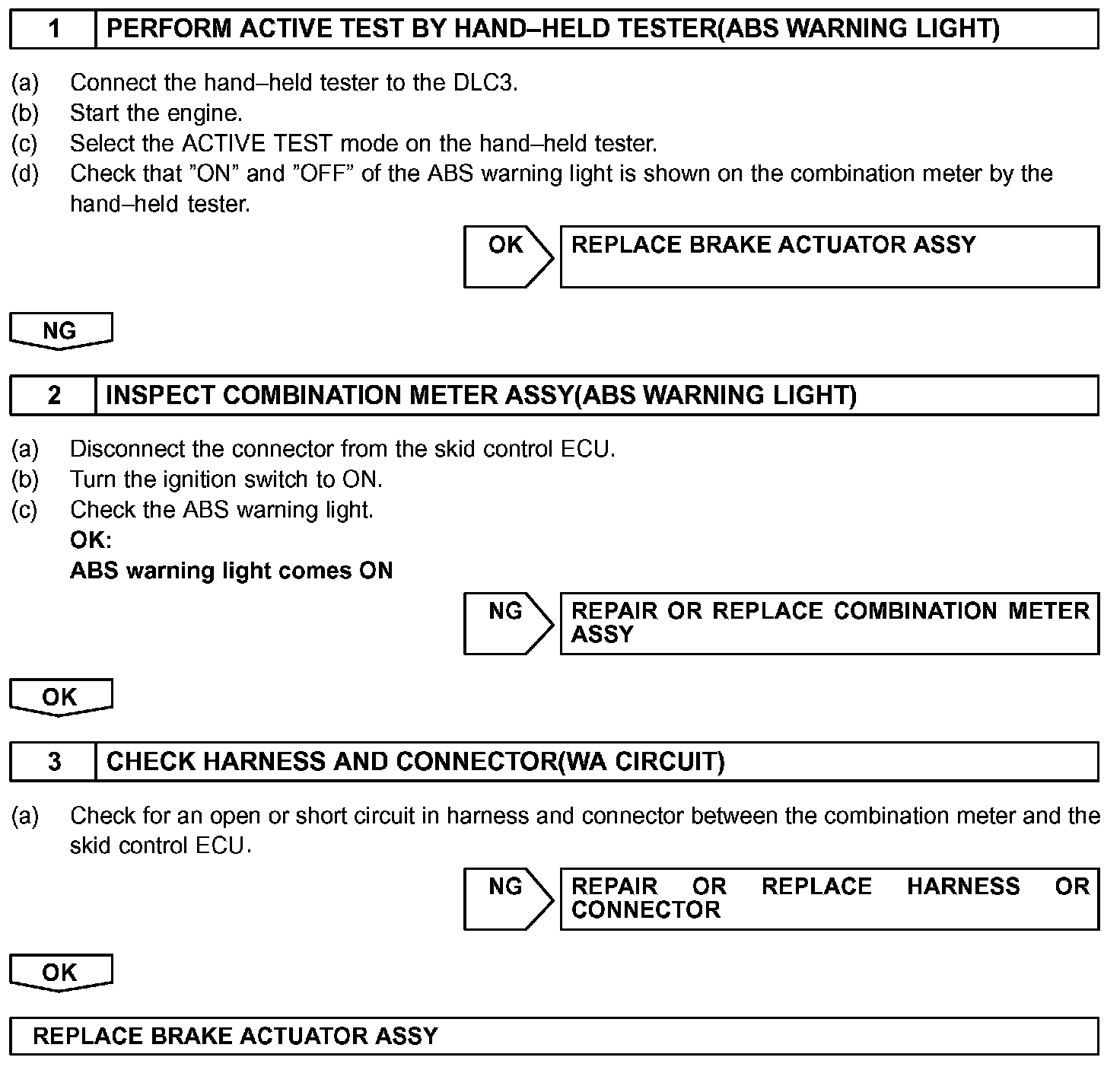

Step 1 - 3:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 if you are using the hand-held tester and start from step 2 if you are not using the hand-held tester.
