Inner Rear View Mirror

INSPECTION




1. INSPECT INNER REAR VIEW MIRROR ASSEMBLY

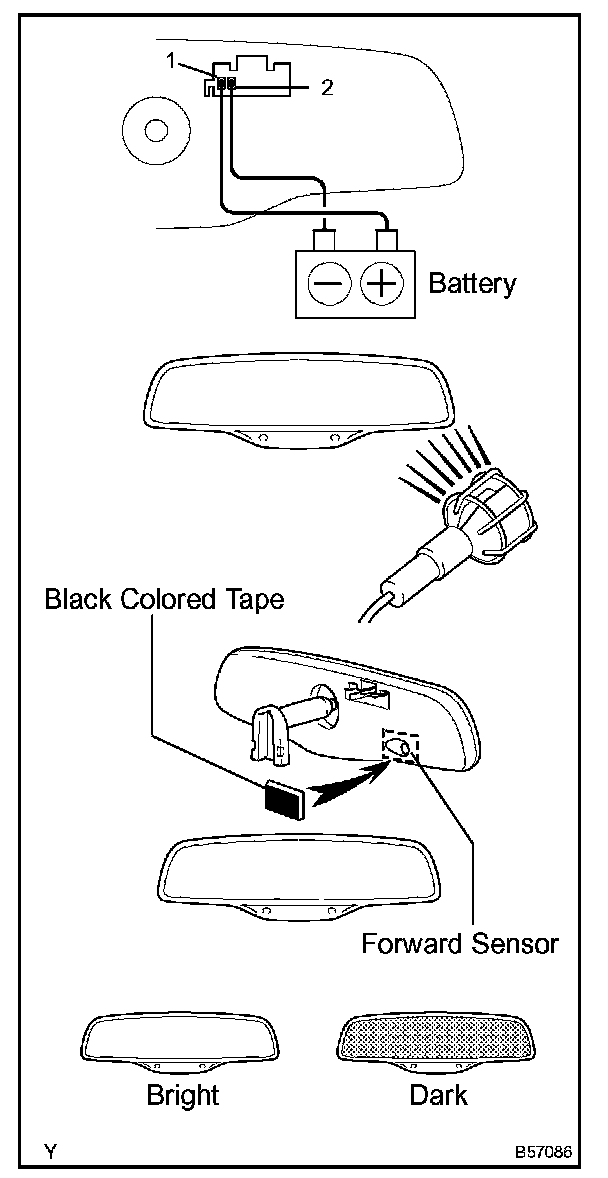

a. Inspect operation of the Electrochromic inner mirror.
1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2.
2. Attach black colored tape to the forward sensor to prevent it from operating.
3. Light up the mirror with an electric light, and check that the mirror surface changes from bright to dark.
If the result is not as specified, replace the mirror assembly.




2. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH
a. Disconnect the mirror connector.

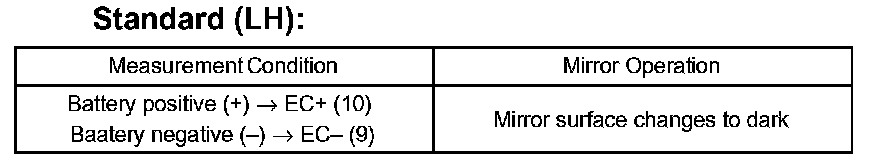

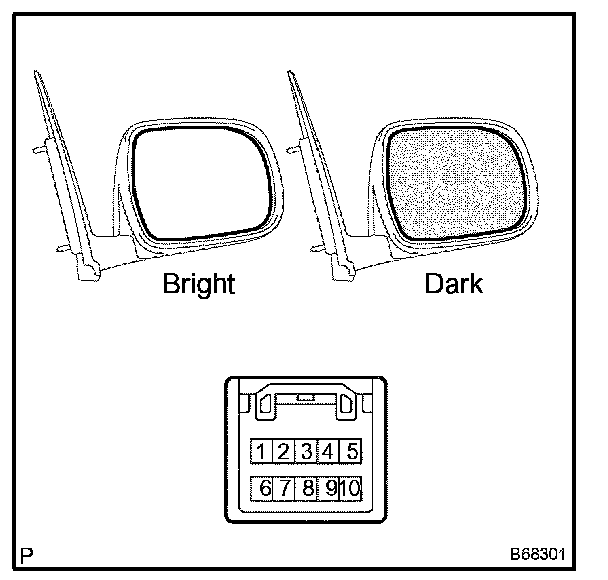

b. Apply battery voltage and inspect operation of the mirror face, as shown in the table and illustration.
If the result is not as specified, replace the mirror assembly.




3. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH
a. Disconnect the mirror connector.

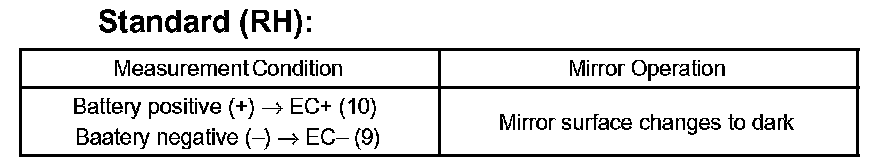

b. Apply battery voltage and inspect operation of the mirror face, as shown in the table and illustration.
If the result is not as specified, replace the mirror assembly.
