Lighting System

BACK DOOR LOCK ASSEMBLY (W/O POWER BACK DOOR)

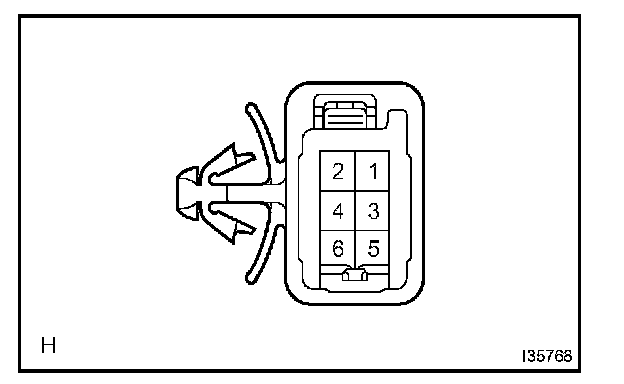

a. Inspect back door courtesy lamp switch operation.
1. Check that there is continuity between the terminal 5 and the terminal 6 when the back door is open and closed.
Standard:
Back door is open: No continuity
Back door is closed: Continuity




BACK DOOR LOCK ASSEMBLY (W/ POWER BACK DOOR)

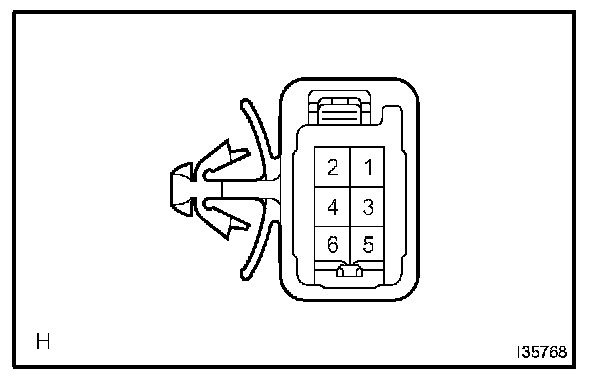

a. Inspect back door courtesy lamp switch operation.
1. Check that there is continuity between the terminal 3 and the terminal 4 when the back door is open and closed.
Standard:
Back door is open: No continuity
Back door is closed: Continuity
