Steering Mounted Controls Transmitter: Service and Repair

Audio & Visual System - Part 2:

STEERING PAD SWITCH LH

REPLACEMENT

1. DISCONNECT BATTERY NEGATIVE TERMINAL
2. REMOVE STEERING WHEEL COVER LOWER NO.2
3. REMOVE STEERING WHEEL COVER LOWER NO.3
4. REMOVE HORN BUTTON ASSEMBLY




5. REMOVE STEERING PAD SWITCH LH
a. Disconnect the connector.
b. Disconnect the connector of cruise control main switch. c.Remove the screw.

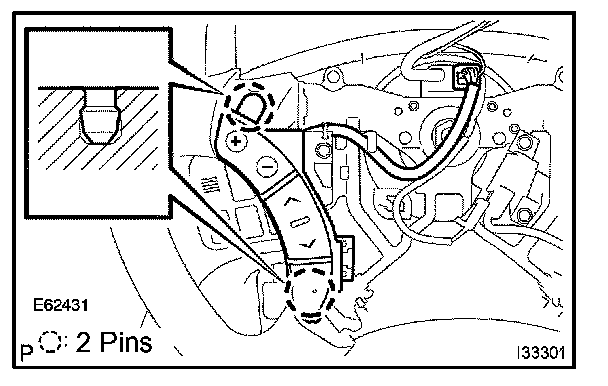

d. W/o Laser radar cruise control:
Release the 2 pin fittings and remove the steering pad switch LH.

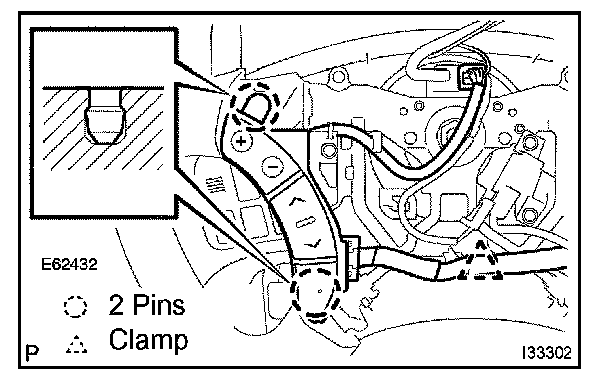

e. W/ Laser radar cruise control:
Remove the clamp.

f. W/ Laser radar cruise control:
Release the 2 pin fittings and release the steering pad switch LH from steering wheel.




g. W/ Laser radar cruise control:
Release the tab of steering pad switch cable from steering pad switch LH as shown in the illustration.




h. W/ Laser radar cruise control:
Disengage the 2 claws as shown in the illustration and open the latch on the top of the connector.




i. W/ Laser radar cruise control:
Pull out the connector while pinching the latch with fingers and disconnect the steering pad switch cable from the steering pad switch LH.

6. INSTALL HORN BUTTON ASSEMBLY
7. INSPECT HORN BUTTON ASSEMBLY
8. INSPECT SRS WARNING LIGHT
